Yamaha NMAX 2016 - Replacing the Fuses

Periodic maintenance and adjustment
6-32
6
EAU66793
Replacing the fuses
The fuse boxes, which contain the fus-
es for the individual circuits, are locat-
ed under the seat. (See page 3-16.)
If a fuse is blown, replace it as follows.
1. Turn off the electrical circuit in
question, and then turn off the
main switch.
2. Open the seat. (See page 3-16.)
3. Remove the battery cover by re-
moving the screws.
4. Remove the blown fuse, and then
install a new fuse of the specified
amperage. WARNING! Do not
use a fuse of a higher amperage
rating than recommended to
avoid causing extensive dam-
age to the electrical system and
possibly a fire.
[EWA15132]
5. Turn the main switch on, and then
turn on the electrical circuit in
question to check if the device op-
erates.

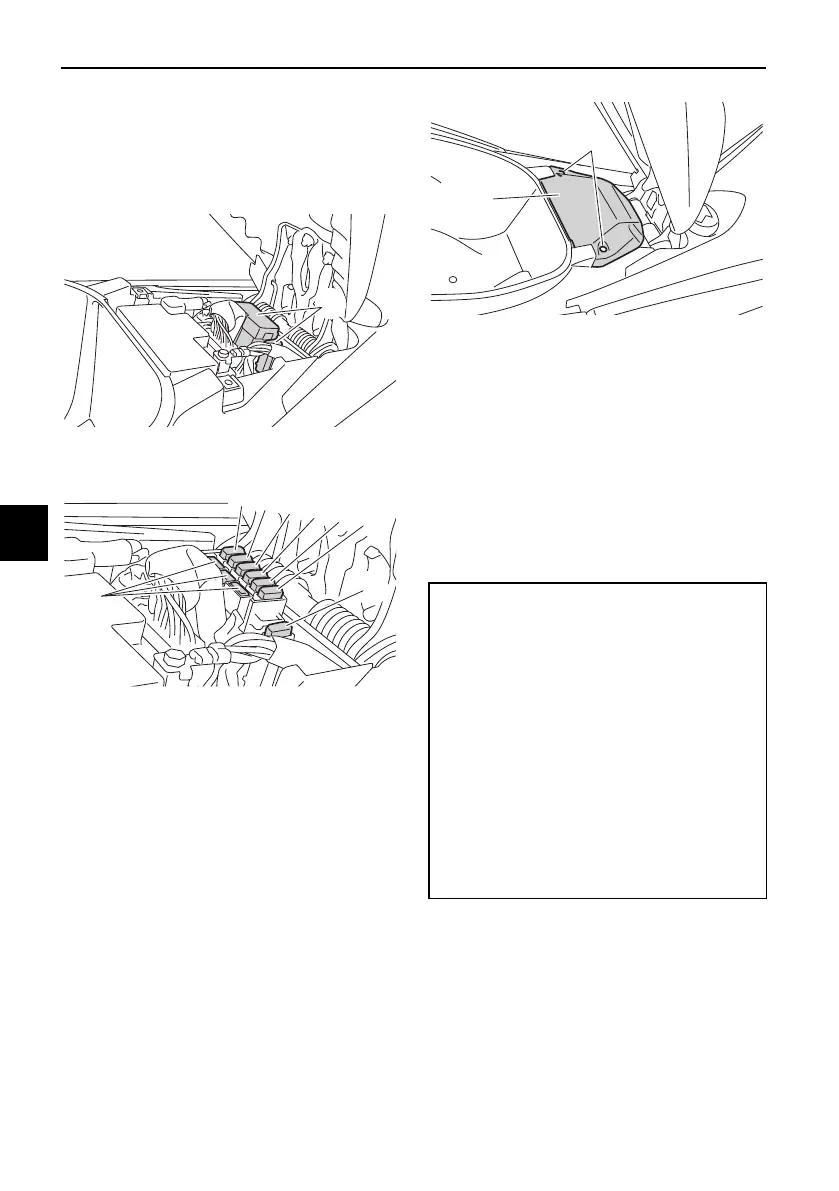

1. Fuse box
1. Main fuse 1
2. ABS solenoid fuse
3. Main fuse 2
4. Taillight fuse
5. Signaling system fuse
6. ABS control unit fuse
7. ABS motor fuse
8. Spare fuse
1
1
2
3
4
5
6
7
8
1. Battery cover
2. Screw
Specified fuses:
Main fuse:
15.0 A
Main fuse 2:
7.5 A
Taillight fuse:
7.5 A
Signaling system fuse:
7.5 A
ABS motor fuse:
30.0 A
ABS solenoid fuse:
15.0 A
ABS control unit fuse:
7.5 A
1
2
