English
E-9
Main speakers
Center speaker
Use the provided speaker cables (4 m). One side of the
speaker cable is red and the other side is black.
Connect the (+) terminals on both the speaker and the
amplifier using the red side of the cable. Connect the (–)
terminals on both components using the black side.
Red: positive (+)
Black: negative (–)
Rear speakers
Rear center speaker (for NS-P436)
Use the provided speaker cables (15 m). One side of the
speaker cable has a gray line and the other side has no line.
Connect the (+) terminals on both the speaker and the
amplifier using the side with a gray line. Connect the (–)
terminals on both components using the side with no line.
Red: positive (+)
Black: negative (–)
䡵 How to connect speaker cables to the input terminals of the
speakers
For connections, keep the speaker cables as short as possible. Do not bundle or roll up the excess part of the cables. If the
connections are faulty, no sound will be heard from the speakers.
Before connecting
Remove the insulation coating at the extremity of each
speaker cable by twisting the coating off.

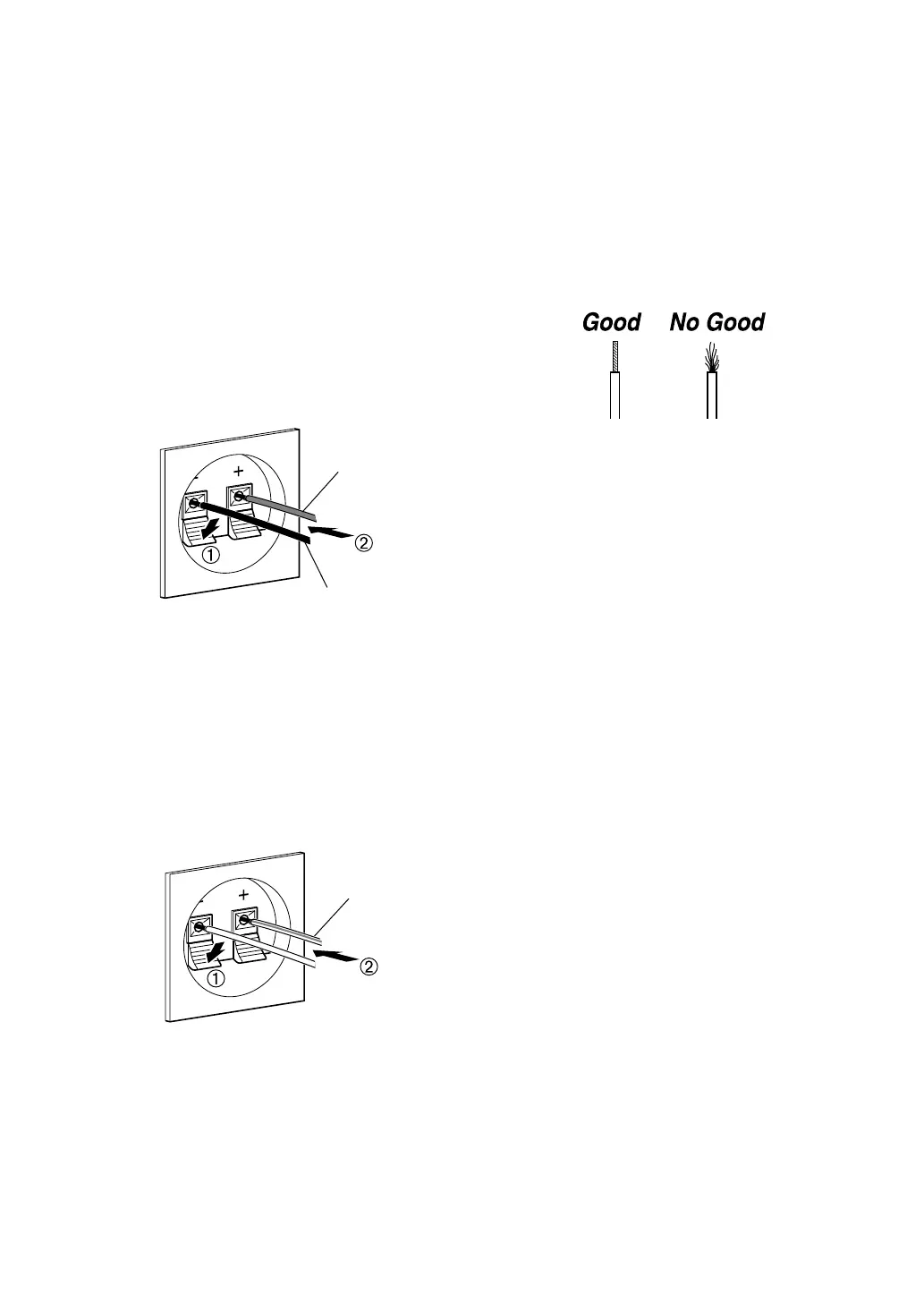

How to Connect:
1 Press and hold the terminal’s tab, as shown in the
figure.
2 Insert the bare wire.
3 Release your finger from the tab to allow it to lock
securely on the cable’s wire end.
4 Test the firmness of the connection by pulling lightly on
the cable at the terminal.
Note
Do not let the bare speaker wires touch each other as
this could damage the speaker or the amplifier, or both
of them.
Gray line
Red
Black
NS-P430-436 (UB) 03.2.28, 7:03 PM9
