PSR-S970/S770 Owner’s Manual 13

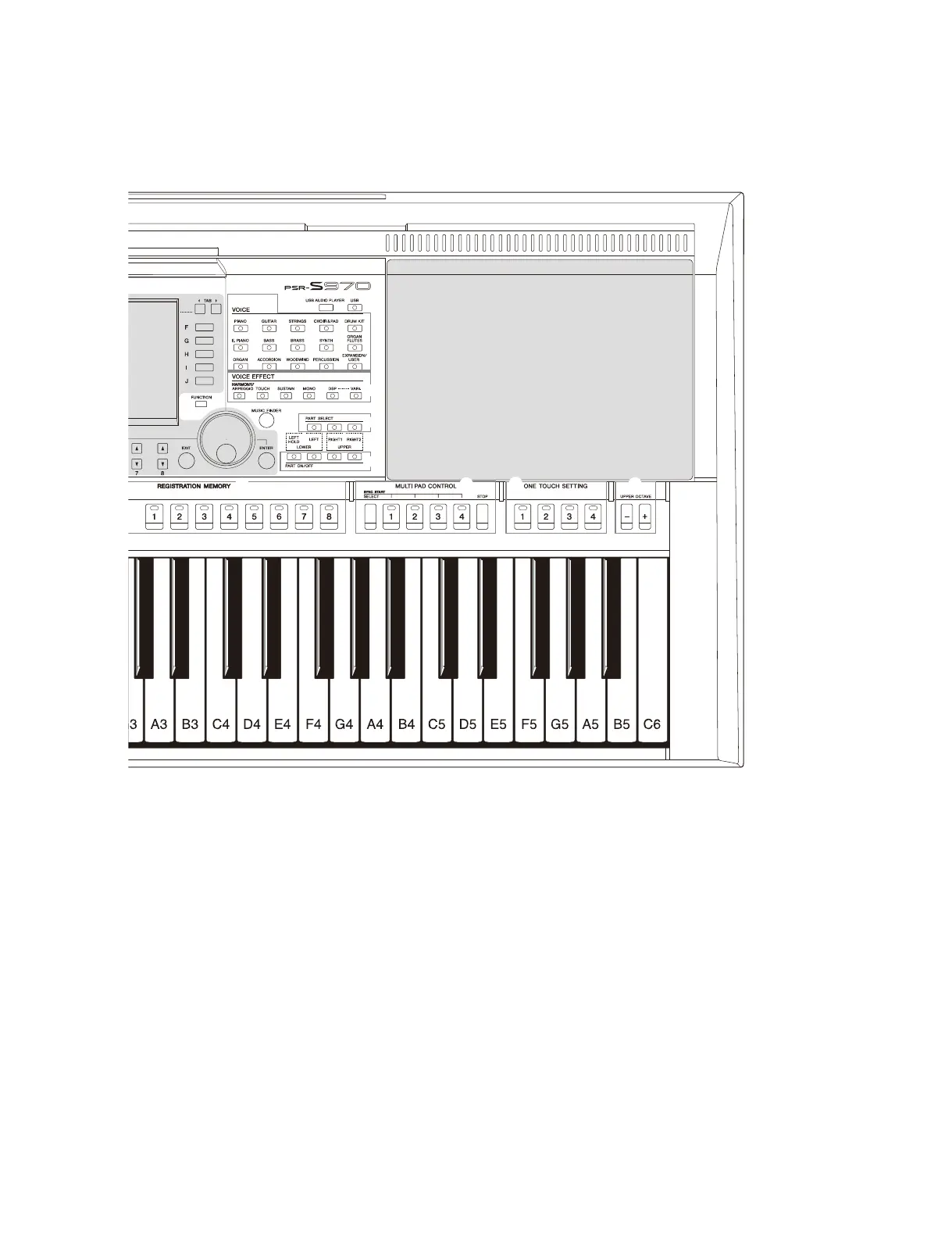

Panel Controls and Terminals
( [MIXER/EQ] button .........................................Page 95
Calls up various settings for the keyboard, Style and Song
parts.
A [CHANNEL ON/OFF] button...................Pages 56, 65
Calls up settings for turning Style/Song channels on or off.
B [FUNCTION] button ......................................Page 104
Lets you make advanced settings and create your original
Styles, Songs and Multi Pads.
C VOICE category selection buttons................Page 36
Selects a Voice category.
D [USB AUDIO PLAYER] button........................Page 71
Calls up the display for playing back audio files and record-
ing your performance in audio format.
E [USB] button ...................................................Page 26
Calls up the display for selecting a file in the USB flash
drive.
F VOICE EFFECT buttons .................................Page 42
Applies various effects to the keyboard performance.
G [MUSIC FINDER] button................................. Page 80
Calls up ideal panel setups for your performance.
H PART SELECT buttons .................................. Page 36
Selects a keyboard part.
I PART ON/OFF buttons ................................... Page 35
Turns the keyboard part on or off.
J REGISTRATION MEMORY buttons ............... Page 85
Registers and recalls panel setups.
K MULTI PAD CONTROL buttons ..................... Page 76
Selects and plays a rhythmic or melodic Multi Pad phrase.
L ONE TOUCH SETTING buttons..................... Page 53
Calls up the appropriate panel settings for the Style.
M UPPER OCTAVE buttons ............................... Page 38
Shifts the pitch of the keyboard in octave steps.
Panel Setup (Panel Settings)
By using the controls on the panel, you can make various settings as
described here. These settings of the instrument are together referred to as
“panel setup” or “panel settings” in this manual.
To Next Page
