Yamaha PSR-S970 Service Manual

PSR-S770/PSR-S970
6

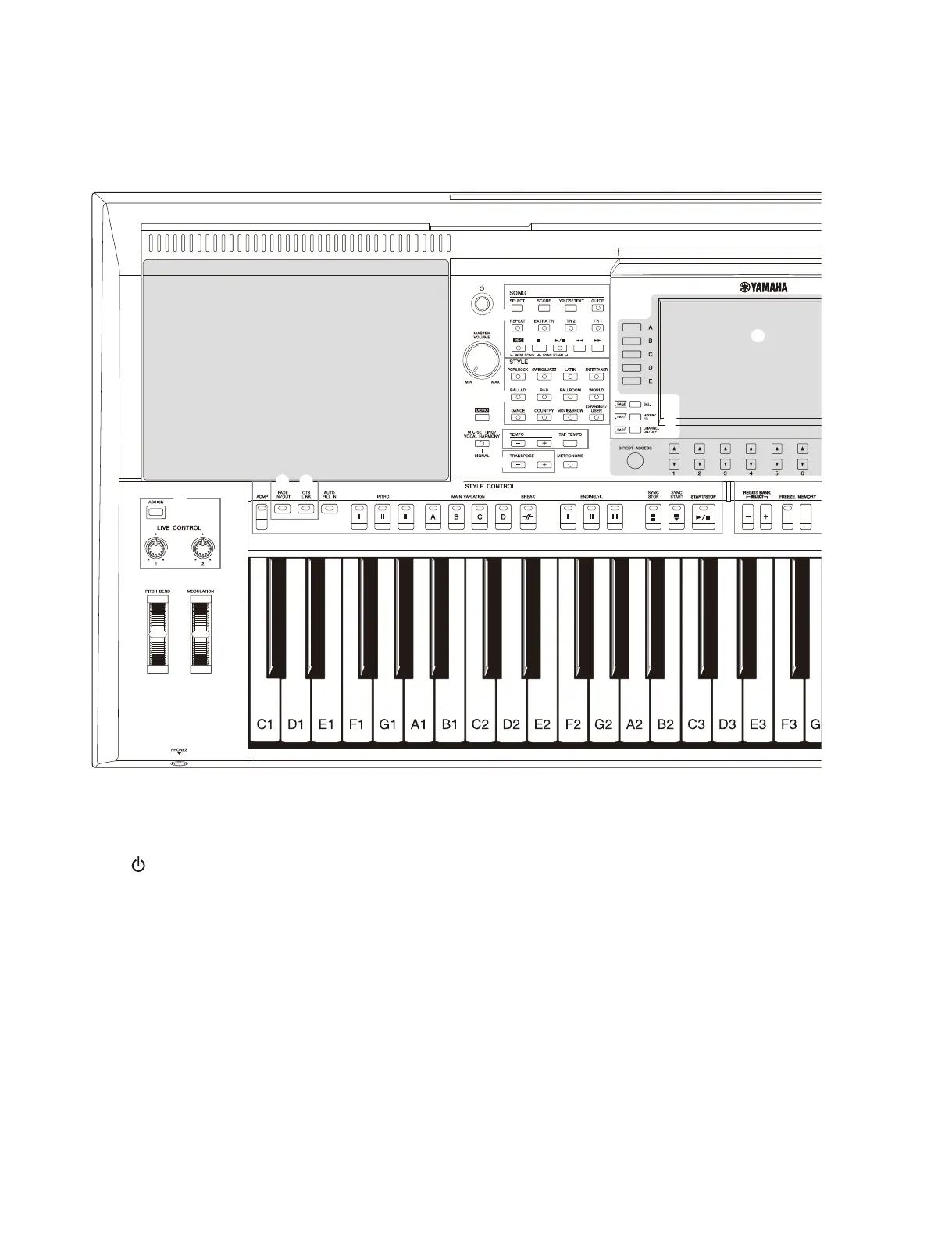

• Front Panel
■ Front Panel
q [ ] (Standby/On) switch
w [MASTER VOLUME] dial
e [DEMO] button
r [MIC SETTING/VOCAL HARMONY] button (PSR-S970) /
[MIC SETTING] button (PSR-S770)
t SONG buttons
y STYLE category selection buttons
u [TAP TEMPO]/TEMPO buttons
i TRANSPOSE buttons
o [METRONOME] button
!0 [FADE IN/OUT] button
!1 [OTS LINK] button
!2 STYLE CONTROL buttons
!3 [ASSIGN] button, LIVE CONTROL knobs
!4 [PITCH BEND] wheel
!5 [MODULATION] wheel
!6 [PHONES] jack
!7 LCD and related controls
!8 [BAL.] button
!9 [MIXER/EQ] button
@0 [CHANNEL ON/OFF] button
@1 [FUNCTION] button
@2 VOICE category selection buttons
@3 [USB AUDIO PLAYER] button
12 PSR-S970/S770 Owner’s Manual
Panel Controls and Terminals
 Top Panel
1 [ ] (Standby/On) switch ..............................Page 16
Turns on the instrument’s power or sets to standby.
2 [MASTER VOLUME] dial ................................Page 18
Adjusts the overall volume.
3 [DEMO] button ................................................Page 19
Calls up the display for selecting a Demo.
4
[MIC SETTING/VOCAL HARMONY] button (PSR-S970) /
[MIC SETTING] button (PSR-S770)
.....................Page 88
Calls up the display from which you can make settings for
the microphone/guitar and (on the PSR-S970) Vocal Har-
mony settings.
5 SONG buttons.................................................Page 62
Selects a Song and controls Song playback.
6 STYLE category selection buttons ...............Page 48
Selects a Style category.
7 [TAP TEMPO]/TEMPO buttons ......................Page 51
Controls the tempo for Style, Song and Metronome playback.
8 TRANSPOSE buttons .....................................Page 38
Transposes the entire pitch of the instrument in semitone
steps.
9 [METRONOME] button................................... Page 37
Turns the metronome on or off.
) [FADE IN/OUT] button.................................... Page 52
Controls fade in/out of Style/Song playback.
! [OTS LINK] button.......................................... Page 54
Turns on/off the OTS Link function.
@ STYLE CONTROL buttons............................. Page 50
Controls Style playback.
# [ASSIGN] button, LIVE CONTROL knobs..... Page 40
Assigns functions and controls sounds in real time.
$ [PITCH BEND] wheel...................................... Page 39
Bends the pitch of the keyboard played sound up or down.
% [MODULATION] wheel ................................... Page 39
Applies vibrato effects, etc.
^ [PHONES] jack ............................................... Page 15
For connecting a pair of headphones.
& LCD and related controls .............................. Page 20
* [BAL.] button .......................................... Pages 57, 74
Calls up settings for the volume balance among the parts.
1
2
3
4
8 9
$
&
*
(
A
%
^
) !
@
7
6
5
#
12psrs970_en_om.book Page 12 Friday, February 13, 2015 3:09 PM

Yamaha PSR-S970 Specifications

General

Polyphony	128 notes
Voices	989 Voices + 41 Drum/SFX Kits + 480 XG Voices
Fingering	Single Finger, Fingered, Fingered On Bass, Multi Finger, AI Fingered, Full Keyboard, AI Full Keyboard
Music Finder	Yes
One Touch Setting (OTS)	4 for each style
Display	7-inch TFT Color Wide VGA LCD
Keyboard	61 keys
Effects	Reverb, Chorus, DSP, Master EQ
Styles	450
Style Control	INTRO, MAIN VARIATION x 4, FILL x 4, BREAK, ENDING
Audio Recorder/Player	Recording: WAV (44.1kHz, 16bit, stereo); Playback: WAV (44.1kHz, 16bit, stereo), MP3
Internal Memory	Approx. 13 MB
External Drives	USB Flash Memory
Connectivity	Headphones, MIDI In/Out, USB to Device, USB to Host, AUX In
Speakers	13 cm x 2 + 5 cm x 2
Power Supply	PA-300C or an equivalent recommended by Yamaha
