Yamaha PSR-S970 Service Manual

5
PSR-S770/PSR-S970
■ PANEL LAYOUT

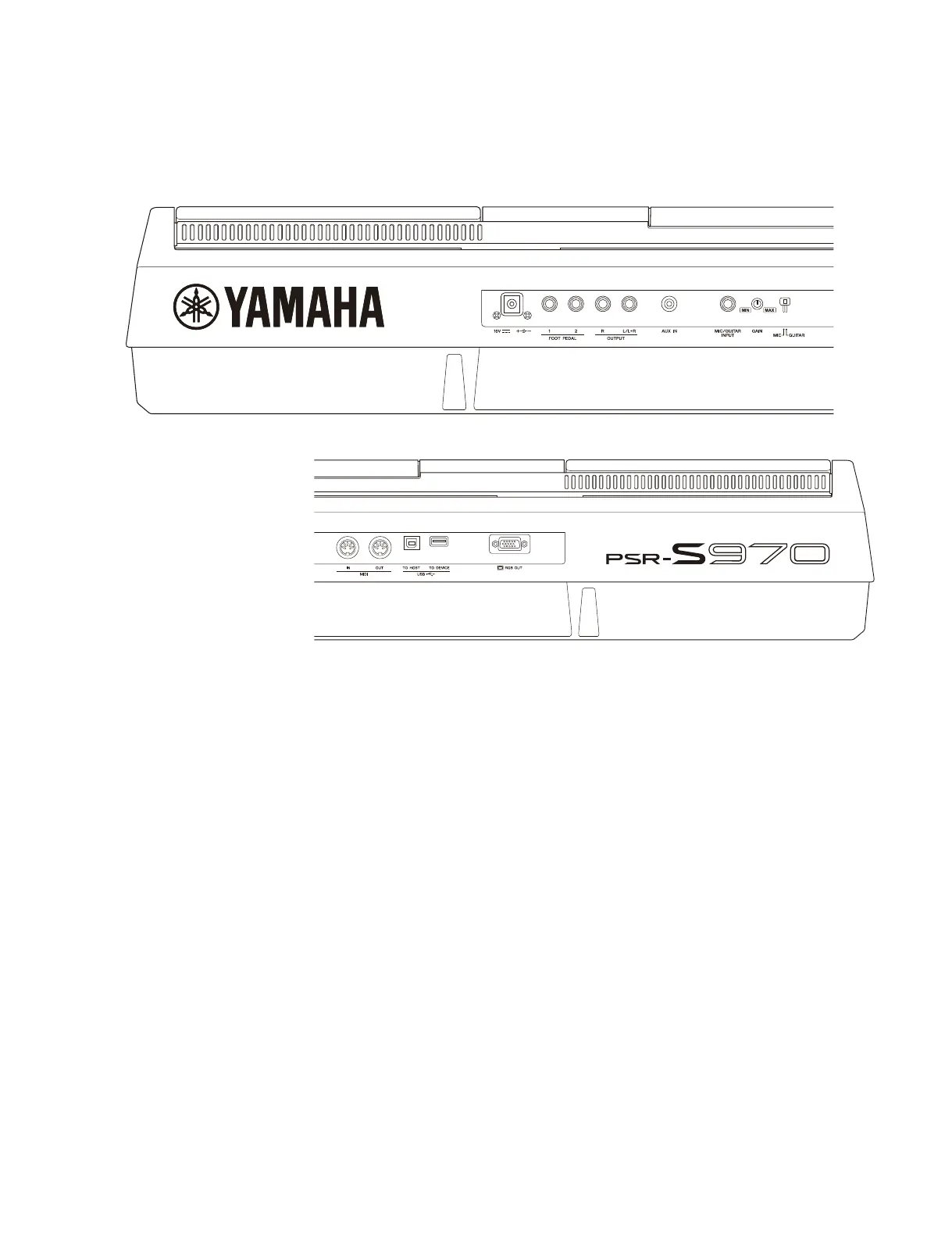

■ Rear Panel
q DC IN jack
w FOOT PEDAL [1]/[2] jacks
e OUTPUT [L/L+R]/[R] jacks
r [AUX IN] jack
t [MIC/GUITAR INPUT] jack
y [GAIN] knob
u [MIC GUITAR] switch
i MIDI [IN]/[OUT] terminals
o [USB TO HOST] terminal
!0 [USB TO DEVICE] terminal
!1 [RGB OUT] terminal (PSR-S970)
• Rear Panel
14 PSR-S970/S770 Owner’s Manual
 Rear Panel
1 DC IN jack .......................................................Page 16
For connecting the power adaptor.
2 FOOT PEDAL [1]/[2] jacks..............................Page 97
For connecting Footswitches and/or Foot controllers.
3 OUTPUT [L/L+R]/[R] jacks .............................Page 98
For connecting external audio devices.
4 [AUX IN] jack...................................................Page 98
For connecting an external audio device, such as a portable
audio player.
5 [MIC/GUITAR INPUT] jack.............................. Page 88
For connecting a microphone or guitar.
6 [GAIN] knob .................................................... Page 88
For adjusting the input level of the [MIC/GUITAR INPUT]
jack.
7 [MIC GUITAR] switch ..................................... Page 88
For switching between “MIC” and “GUITAR” for proper
use of the [MIC/GUITAR INPUT] jack.
1 2 3 4 5 6 7
Air Vents
NOTICE
This instrument has special air vents in the top panel and rear panel.
Do not place objects where they might block the air vent, since this
may prevent adequate ventilation of the internal components, and
possibly result in the instrument overheating.
Attaching the Music Rest
Insert the music rest into the slots as shown.
Air Vents
12psrs970_en_om.book Page 14 Friday, February 13, 2015 3:09 PM
PSR-S970/S770 Owner’s Manual 15
Panel Controls and Terminals
8 MIDI [IN]/[OUT] terminals.............................Page 103
For connecting external MIDI devices.
9 [USB TO HOST] terminal..............................Page 102
For connecting to a computer.
) [USB TO DEVICE] terminal ..........................Page 100
For connecting a USB device such as a USB flash drive.
! [RGB OUT] terminal (PSR-S970) ...................Page 99
For connecting to an external monitor.
8 9 ) !
Using the Headphones
Connect a pair of headphones to the [PHONES] jack.
CAUTION
Do not listen with the headphones at high volume for long periods of time. Doing so may cause hearing loss.
Standard stereo phone plug
12psrs970_en_om.book Page 15 Friday, February 13, 2015 3:09 PM

Yamaha PSR-S970 Specifications

General

Polyphony	128 notes
Voices	989 Voices + 41 Drum/SFX Kits + 480 XG Voices
Fingering	Single Finger, Fingered, Fingered On Bass, Multi Finger, AI Fingered, Full Keyboard, AI Full Keyboard
Music Finder	Yes
One Touch Setting (OTS)	4 for each style
Display	7-inch TFT Color Wide VGA LCD
Keyboard	61 keys
Effects	Reverb, Chorus, DSP, Master EQ
Styles	450
Style Control	INTRO, MAIN VARIATION x 4, FILL x 4, BREAK, ENDING
Audio Recorder/Player	Recording: WAV (44.1kHz, 16bit, stereo); Playback: WAV (44.1kHz, 16bit, stereo), MP3
Internal Memory	Approx. 13 MB
External Drives	USB Flash Memory
Connectivity	Headphones, MIDI In/Out, USB to Device, USB to Host, AUX In
Speakers	13 cm x 2 + 5 cm x 2
Power Supply	PA-300C or an equivalent recommended by Yamaha
