The adjusting range of the speed limit-
er screw is from the fully turned-in po-
sition to 7 mm (0.28 in) turned out.
When the screw is turned out to 7 mm
(0.28 in), the throttle grip can only be
opened approximately halfway. If more
power is required, please consult a
Yamaha dealer.
EWA14632
Improper adjustment of the speed
limiter could cause improper throttle
operation. You could lose control,
have an accident or be injured. Do
not turn the adjusting screw out
more than 7 mm (0.28 in) before con-
sulting a Yamaha dealer. Always
make sure the throttle grip free play
is adjusted to 1.5–3.5 mm (0.06–0.14
in). (See page 7-14.)
Power reduction plate
Once the rider can operate with skill at
the top speed permitted by adjusting
the speed limiter alone, the power re-
duction plate can be removed. (See
page 7-7.)
EAU12902
Front brake lever
The front brake lever is located on the
right side of the handlebar. To apply
the front brake, pull this lever toward
the throttle grip.

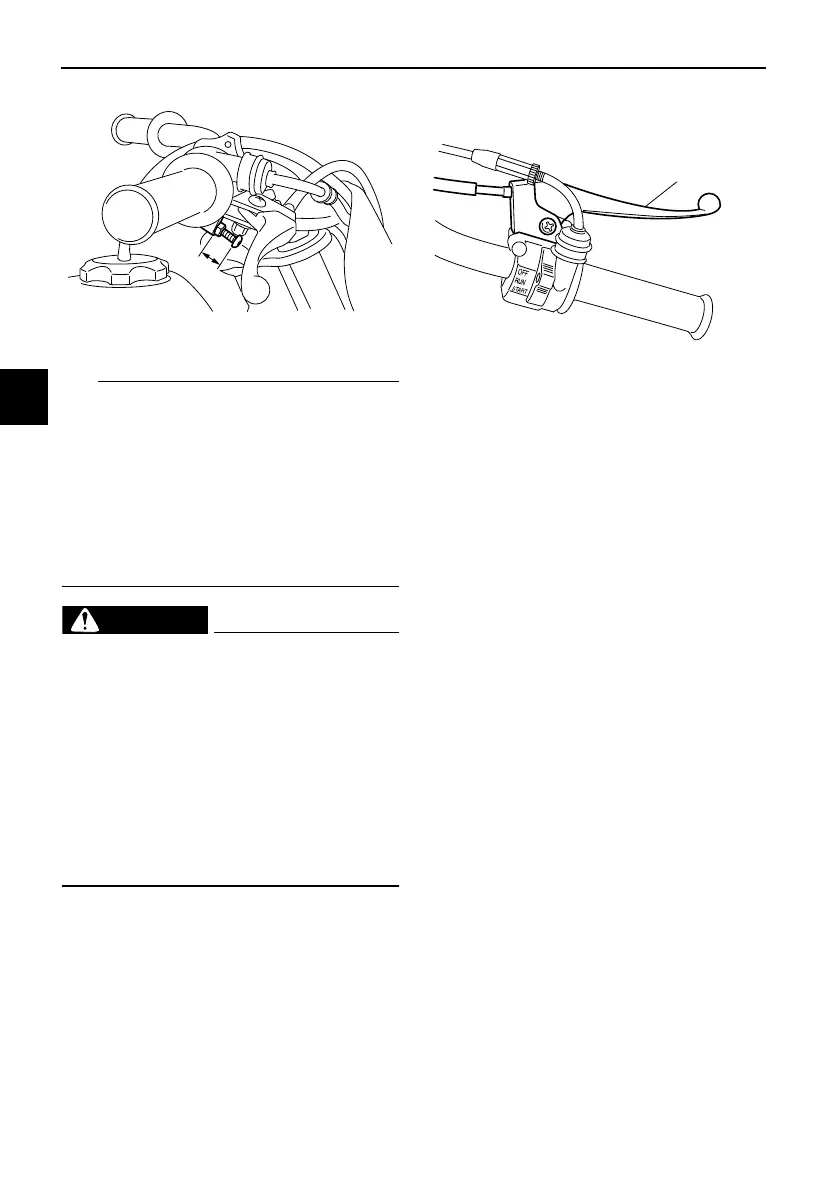

1. No more than 7 mm (0.28 in)
1. Front brake lever
