Periodic maintenance and adjustment
7-18
7
EAU41054
Checking the front and rear
brake shoes
The front and rear brake shoes must be
checked for wear at the intervals spec-
ified in the periodic maintenance and
lubrication chart.
The wheels must be removed to check
brake shoe lining thickness.
To remove the front wheel: See
page 7-23.
To remove the rear wheel: See
page 7-24.

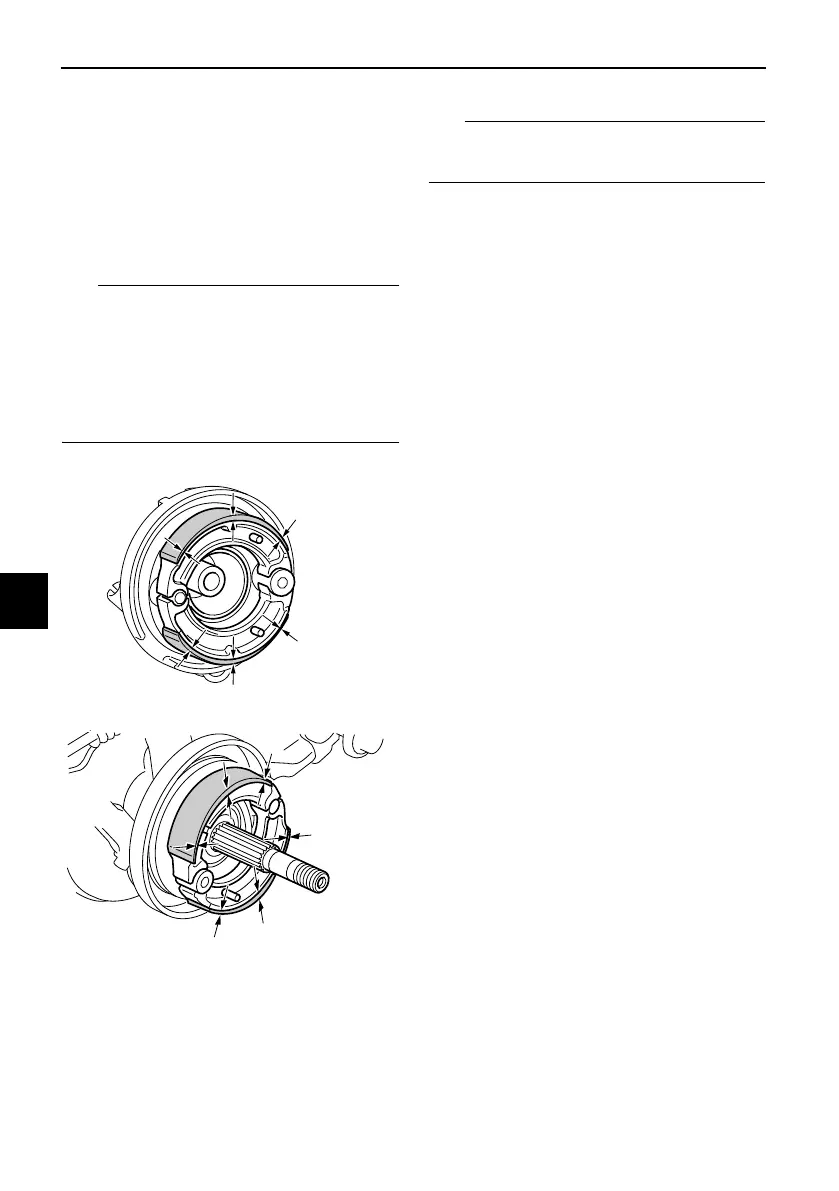

Front
Rear
If the lining thickness of a brake shoe is
less than 1.5 mm (0.06 in), have a
Yamaha dealer replace the brake
shoes as a set.
Be sure to measure the brake lining at
the thinnest portion.
