Periodic maintenance and adjustment
7-24
7
3. Insert the wheel axle from the right
side.
4. Install the washer and axle nut,
and then tighten the axle nut to the
specified torque.
5. Connect the brake cable at the
wheel hub, and then install the
brake lever free play adjusting nut.
6. Adjust the brake lever free play.
(See page 7-17.)
7. Take the motorcycle off the cen-
terstand so that the front wheel is
on the ground.
8. Push down hard on the handlebar
several times to check for proper
fork operation.
EAU25081
Rear wheel
EAU56822
To remove the rear wheel
EWA10822
To avoid injury, securely support the
vehicle so there is no danger of it
falling over.
1. Place the motorcycle on the cen-
terstand.
2. Remove the seat. (See page 4-8.)
3. Remove the muffler bolt and
washers. WARNING! Always let
the exhaust system cool prior to
touching exhaust components.
[EWA14582]
4. Slide the spring clamp down, and
then remove the muffler.
5. Remove the exhaust chamber bolt
and washers.
Tightening torque:
Axle nut:
36 N·m (3.6 kgf·m, 27 lb·ft)

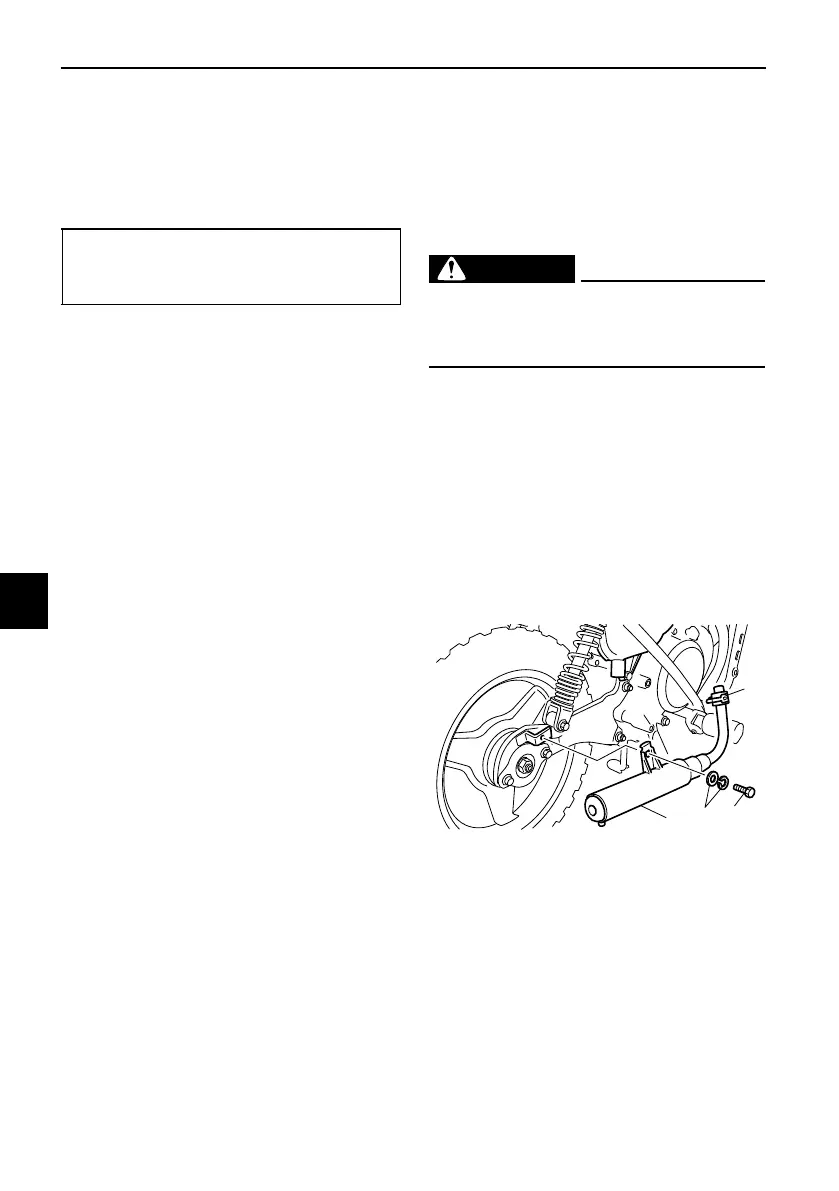

1. Muffler
2. Washer
3. Muffler bolt
4. Spring clamp
U2SA14E0.book Page 24 Monday, May 1, 2017 10:19 AM
