Periodic maintenance and adjustment
7-25
7

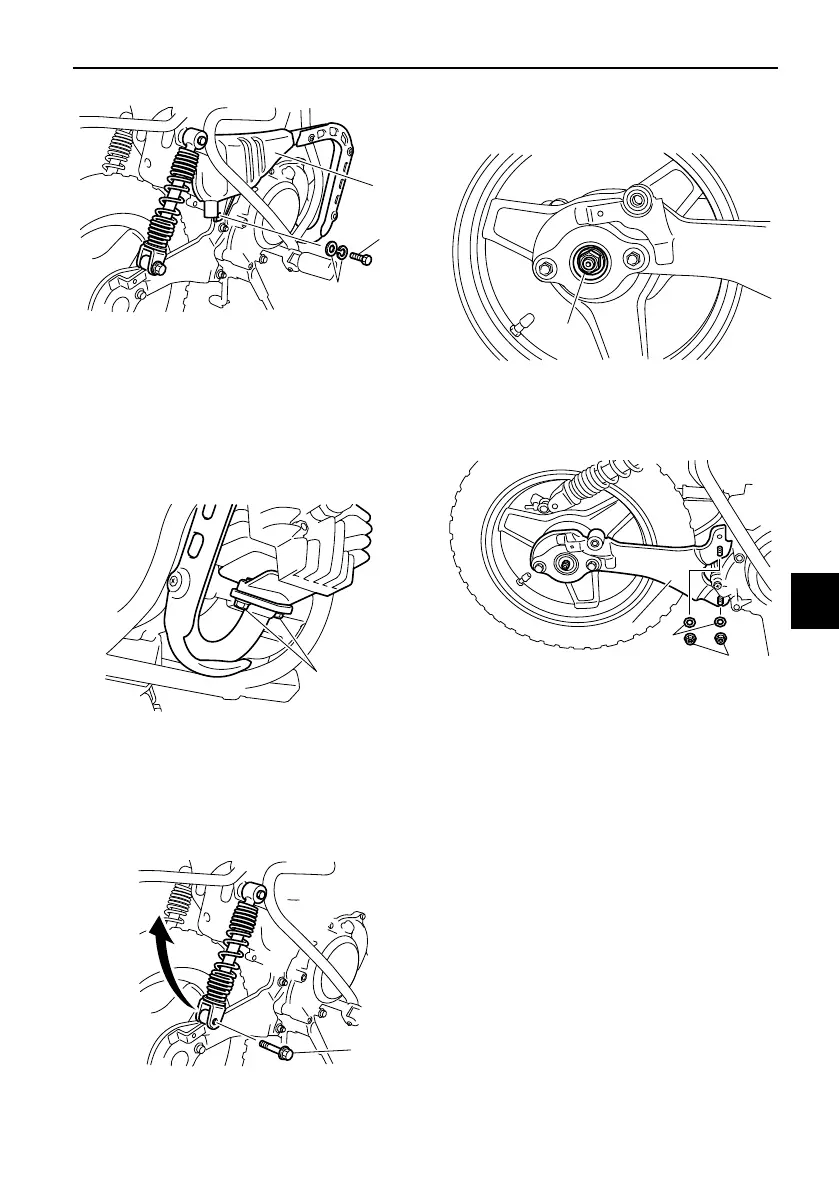

6. Remove the exhaust manifold
bolts, and then remove the ex-
haust chamber, the power reduc-
tion plate and the gasket.
7. Remove the right-side rear shock
absorber mounting bolt and then
tilt the rear shock absorber up-
ward as shown.
8. Remove the axle nut while apply-
ing the rear brake.
9. Remove the rear arm by removing
the nuts and washers.
10. Pull the wheel to the right to re-
move it from the rear axle.
To install the rear wheel
1. Apply a light coating of lithium-
soap-based grease to the splines
of the rear axle and wheel hub.
2. Install the wheel to the rear axle.
3. Install the rear arm by installing the
washers and nuts.
4. Install the axle nut.
5. Install the right-side rear shock
absorber by installing the mount-
ing bolt.
1. Exhaust chamber
2. Exhaust chamber bolt
3. Washer
1. Exhaust manifold bolt
1. Rear shock absorber mounting bolt
2
1
3
1
1
1. Axle nut
1. Rear arm
2. Washer
3. Rear arm nut
1
1
2
3
