Instrument and control functions
4-6
4
EAU13454
2-stroke engine oil
Make sure that there is sufficient 2-
stroke engine oil in the oil tank. Add the
recommended 2-stroke engine oil as
necessary.
ECA16671
Make sure that the 2-stroke engine
oil tank cap is properly installed.
EAU40702
Fuel cock
The fuel cock supplies fuel from the
tank to the carburetor while filtering it
also.
The fuel cock has two positions:
S (stop)
With the lever in this position, fuel will
not flow. Always return the lever to this
position when the engine is not run-
ning.
O (on)
With the lever in this position, fuel flows
to the carburetor. Normal riding is done
with the lever in this position.

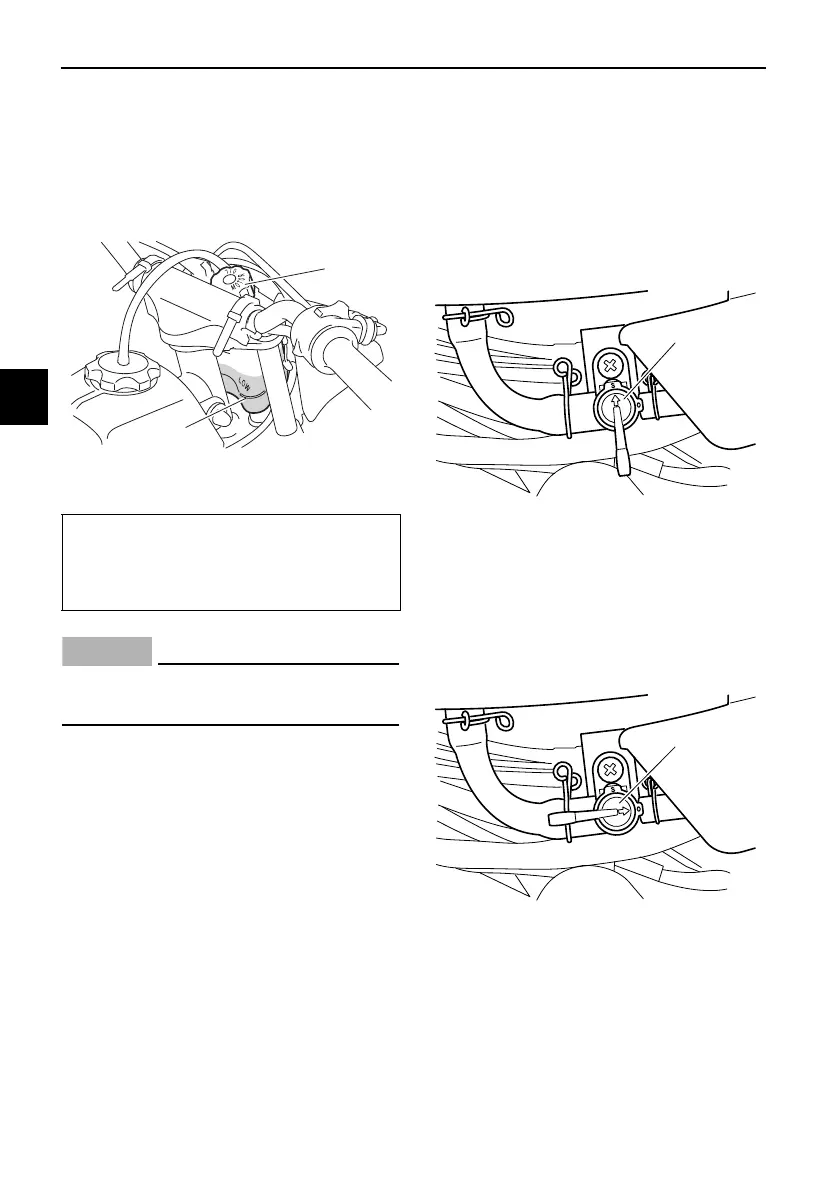

1. 2-stroke engine oil tank cap
2. Minimum level mark
Recommended oil:
See page 9-1.
Oil quantity:
0.30 L (0.32 US qt, 0.26 Imp.qt)
1. Arrow mark pointing to “S” (stop)
1. Arrow mark pointing to “O” (on)
