Yamaha R6 2009 Service Manual

FRONT BRAKE
4-27

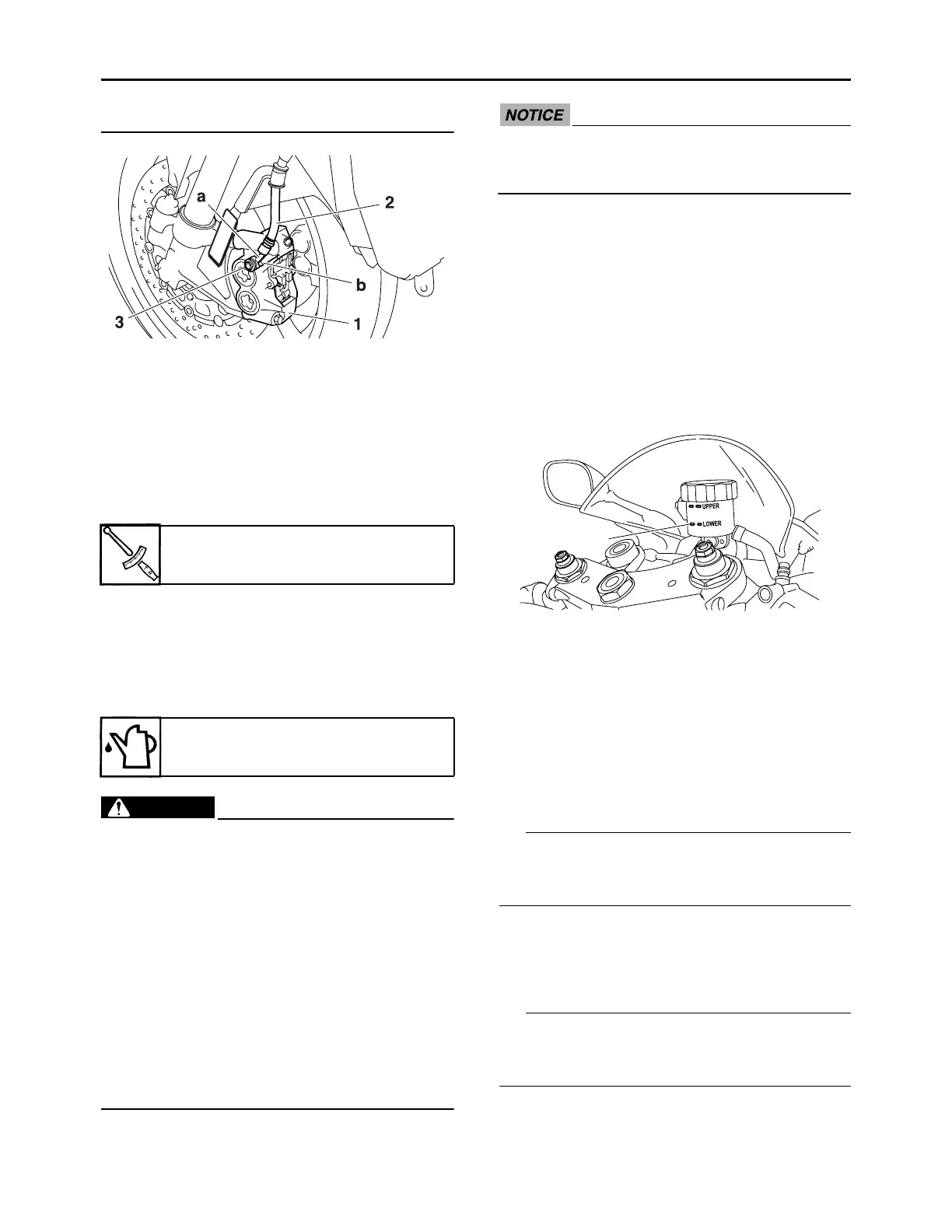

“a” touches the projection “b” on the brake
caliper.
2. Remove:
• Front brake caliper
3. Install:
• Front brake pads
• Brake pad spring
• Brake pad pin
• Brake pad clips
• Front brake caliper
Refer to “REPLACING THE FRONT
BRAKE PADS” on page 4-24.
4. Fill:
• Brake fluid reservoir
(with the specified amount of the recom-
mended brake fluid)
WARNING
EWA13090
• Use only the designated brake fluid.
Other brake fluids may cause the rubber
seals to deteriorate, causing leakage and
poor brake performance.
• Refill with the same type of brake fluid
that is already in the system. Mixing brake
fluids may result in a harmful chemical
reaction, leading to poor brake perfor-
mance.
• When refilling, be careful that water does
not enter the brake fluid reservoir. Water
will significantly lower the boiling point of
the brake fluid and could cause vapor
lock.
ECA13540
Brake fluid may damage painted surfaces
and plastic parts. Therefore, always clean
up any spilt brake fluid immediately.
5. Bleed:
• Brake system
Refer to “BLEEDING THE HYDRAULIC
BRAKE SYSTEM” on page 3-25.
6. Check:
• Brake fluid level
Below the minimum level mark “a” → Add
the recommended brake fluid to the
proper level.
Refer to “CHECKING THE BRAKE
FLUID LEVEL” on page 3-23.
7. Check:
• Brake lever operation
Soft or spongy feeling → Bleed the brake
system.
Refer to “BLEEDING THE HYDRAULIC
BRAKE SYSTEM” on page 3-25.
EAS22490
REMOVING THE FRONT BRAKE MASTER
CYLINDER
TIP
Before removing the front brake master cylin-
der, drain the brake fluid from the entire brake
system.
1. Remove:
• Front brake hose union bolt “1”
• Copper washers “2”
• Front brake hoses “3”
TIP
To collect any remaining brake fluid, place a
container under the master cylinder and the
end of the brake hose.
Front brake caliper bolt
35 Nm (3.5 m·kg, 26 ft·lb)
Recommended fluid
DOT 4
a

Yamaha R6 2009 Specifications

General

Compression Ratio	13.1:1
Fuel Delivery	Fuel injection with YCC-T and YCC-I
Ignition	TCI: Transistor Controlled Ignition
Final Drive	Chain
Rear Brakes	220mm disc; single-piston caliper
Front Tire	120/70-ZR17
Rear Tire	180/55-ZR17
Wheelbase	54.1 in
Seat Height	33.5 in
Fuel Capacity	4.6 gal
Wet Weight	417 lb
Length	80.3 in
Width	27.8 in
Height	43.1 in
Rake (Caster Angle)	24.0°
Trail	3.8 in
Engine Type	Liquid-cooled, inline 4-cylinder, DOHC, 16 valves
Transmission	6-speed
Front Suspension	41mm inverted fork; 4.7-in travel
Rear Suspension	Single shock; 4.7-in travel
Front Brakes	Dual 310mm hydraulic disc; 4-piston calipers
Bore x Stroke	67.0mm x 42.5mm
