Yamaha R6 2009 Service Manual

FUEL TANK
7-3
ET2C01010

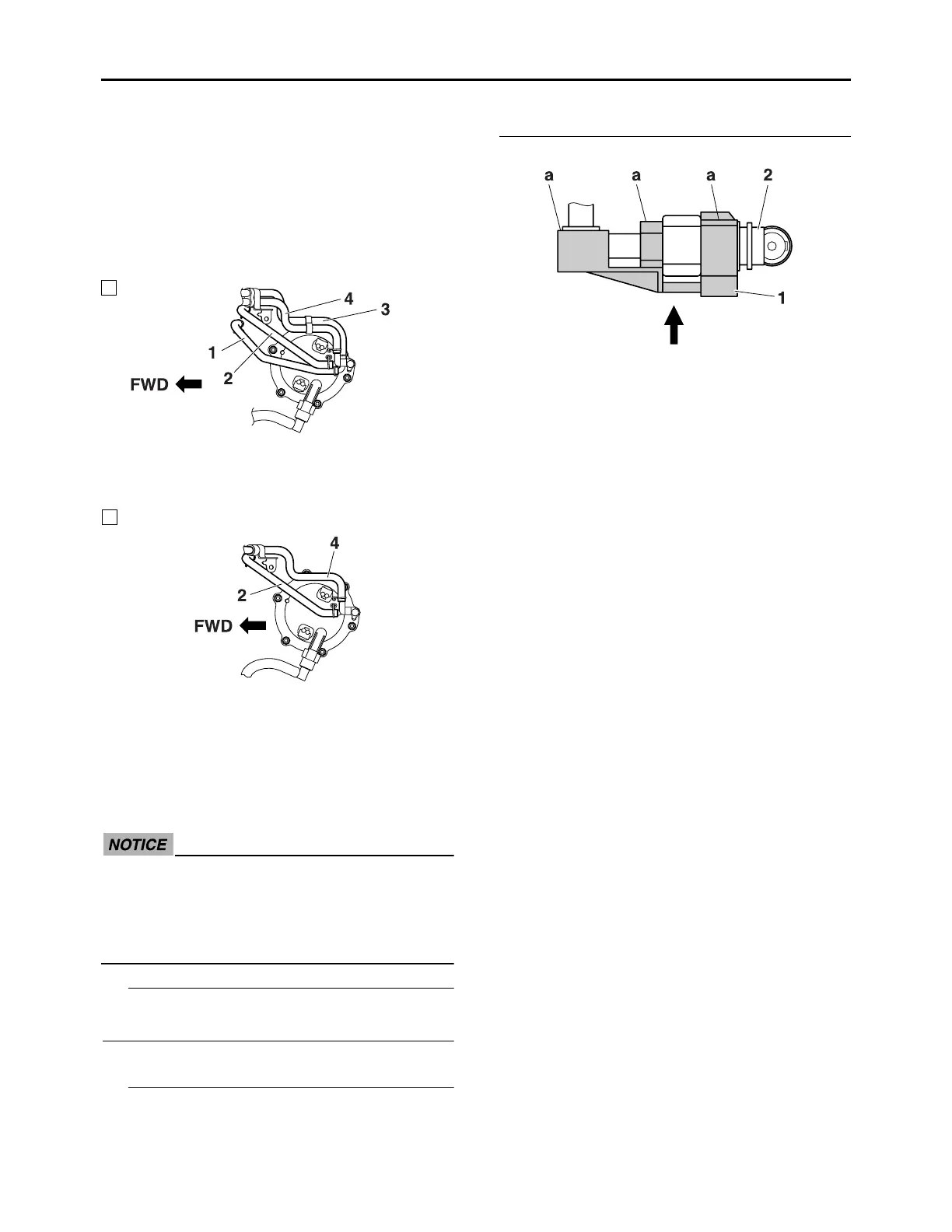

INSTALLING THE FUEL TANK
1. Connect:
• Fuel tank breather hose (fuel tank to hose
joint) “1”
• Fuel tank overflow hose (fuel tank to hose
joint) “2”
• Fuel tank breather hose “3”
• Fuel tank overflow hose “4”
2. Connect:
• Fuel hose (fuel tank side)
EC2C01017
When installing the fuel hose, make sure
that it is securely connected, and that the
fuel hose connector cover on the fuel hose
is in the correct position, otherwise the fuel
hose will not be properly installed.
TIP
Install the fuel hose securely onto the fuel
pump until a distinct “click” is heard.
• Fuel hose connector cover
TIP
Attach the fuel hose connector cover “1” to the
fuel hose connector “2” from the bottom. Make
sure that parts “a” are firmly attached to the
fuel hose connector “2”.
3. Connect:
• Fuel sender coupler
• Fuel pump coupler
A. Except for California
B. For California
A
B

Yamaha R6 2009 Specifications

General

Compression Ratio	13.1:1
Fuel Delivery	Fuel injection with YCC-T and YCC-I
Ignition	TCI: Transistor Controlled Ignition
Final Drive	Chain
Rear Brakes	220mm disc; single-piston caliper
Front Tire	120/70-ZR17
Rear Tire	180/55-ZR17
Wheelbase	54.1 in
Seat Height	33.5 in
Fuel Capacity	4.6 gal
Wet Weight	417 lb
Length	80.3 in
Width	27.8 in
Height	43.1 in
Rake (Caster Angle)	24.0°
Trail	3.8 in
Engine Type	Liquid-cooled, inline 4-cylinder, DOHC, 16 valves
Transmission	6-speed
Front Suspension	41mm inverted fork; 4.7-in travel
Rear Suspension	Single shock; 4.7-in travel
Front Brakes	Dual 310mm hydraulic disc; 4-piston calipers
Bore x Stroke	67.0mm x 42.5mm
