Yamaha Raptor 90 YFM90RA 2011 User Manual

4 - 28
ENG

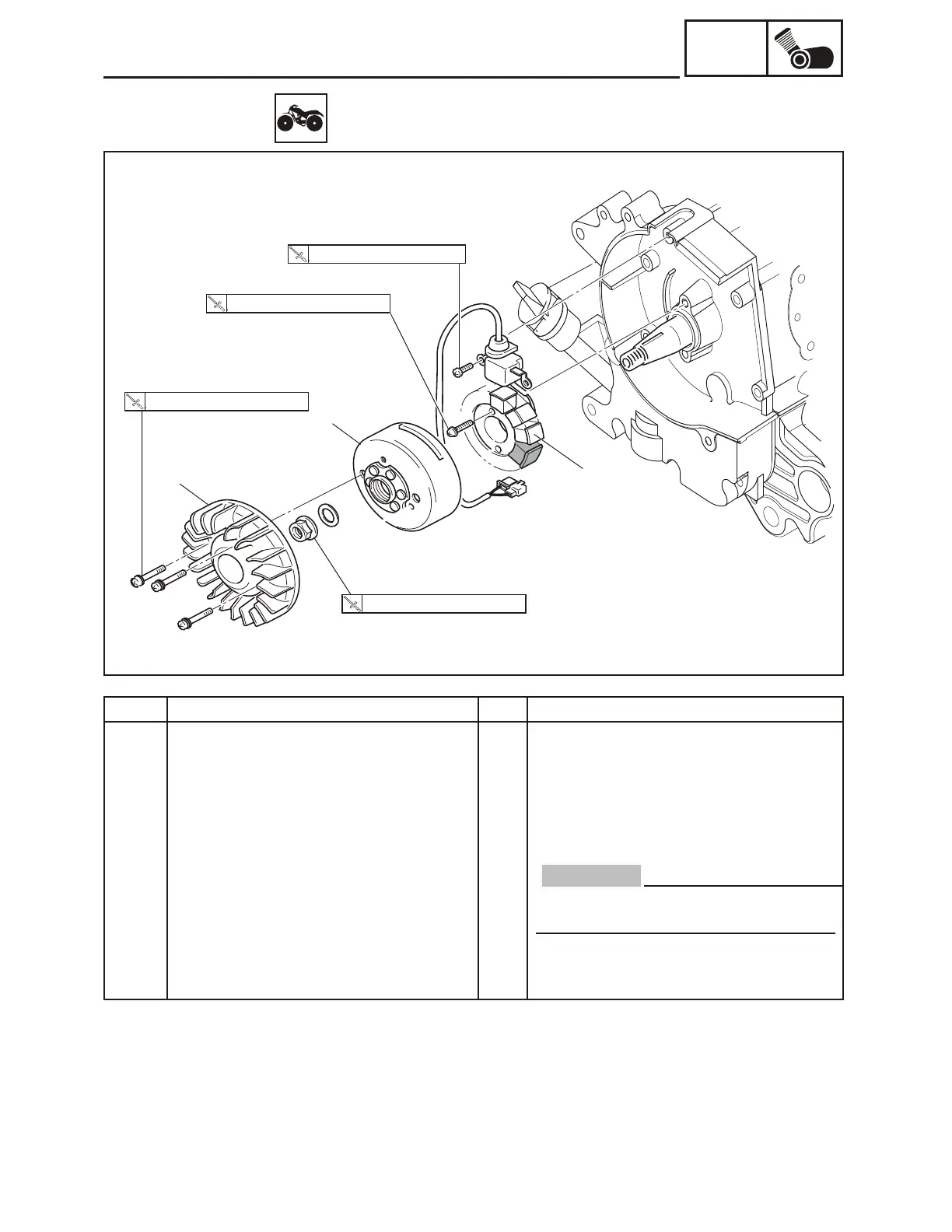

C.D.I. MAGNETO
C.D.I. MAGNETO
EBS00256
RemarksOrder Job/Part Q’ty
1
2
3
1
1
1
Disassemble the parts in the order listed.
Refer to “CYLINDER HEAD”.
Disconnect the C.D.I. magneto lead
coupler.
For installation, reverse the removal pro-
cedure.
Removing the C.D.I. magneto
Cover 2, Guide 1 and Air shroud 1
Fan
C.D.I. magneto rotor
Stator coil assembly
NOTICE
Refer to “INSTALLING STATOR COIL
ASSEMBLY “.
12 Nm (1.2 m • kg, 8.7 ft • Ib)
5 Nm (0.5 m • kg, 3.6 ft • Ib)
55 Nm (5.5 m • kg, 40 ft • Ib)
2
1
3
10 Nm (1.0 m • kg, 7.2 ft • Ib)
