6 - 7
CHAS
FRONT BRAKES

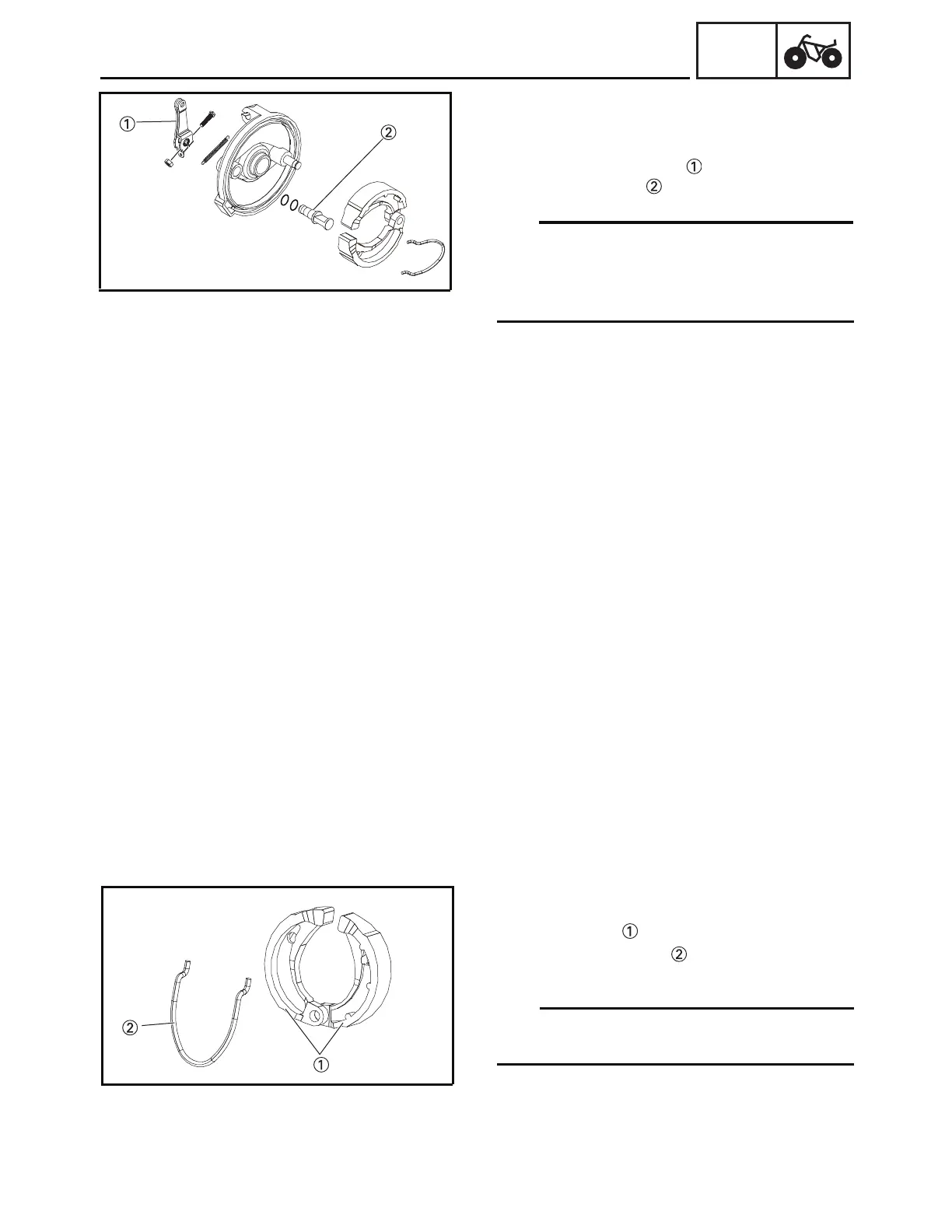

REMOVING THE FRONT BRAKES
The following procedure applies to each brake.
1. Remove:
• brake camshaft lever
• brake camshaft
TIP
When removing the brake camshaft lever,
mark the position on the brake camshaft lever
where it is aligned with the punch mark in the
brake camshaft.
EBS00439
CHECKING THE FRONTBRAKE SHOE PLATES
The following procedure applies to each brake.
1. Check:
• brake shoe plate
• pivot pin
• brake camshaft
Bends/cracks/damage → Replace.
• dust seal
Wear/damage → Replace.
EBS00440
CHECKING THE FRONT BRAKE SHOES
The following procedure applies to each brake.
1. Check:
• brake shoes
• brake shoe springs
Cracks/damage → Replace as a set.
TIP
When replacing the brake shoes, replace the
brake shoe springs at the same time.
To Next Page
