4 - 33
ENG
BELT DRIVE
EAS00340

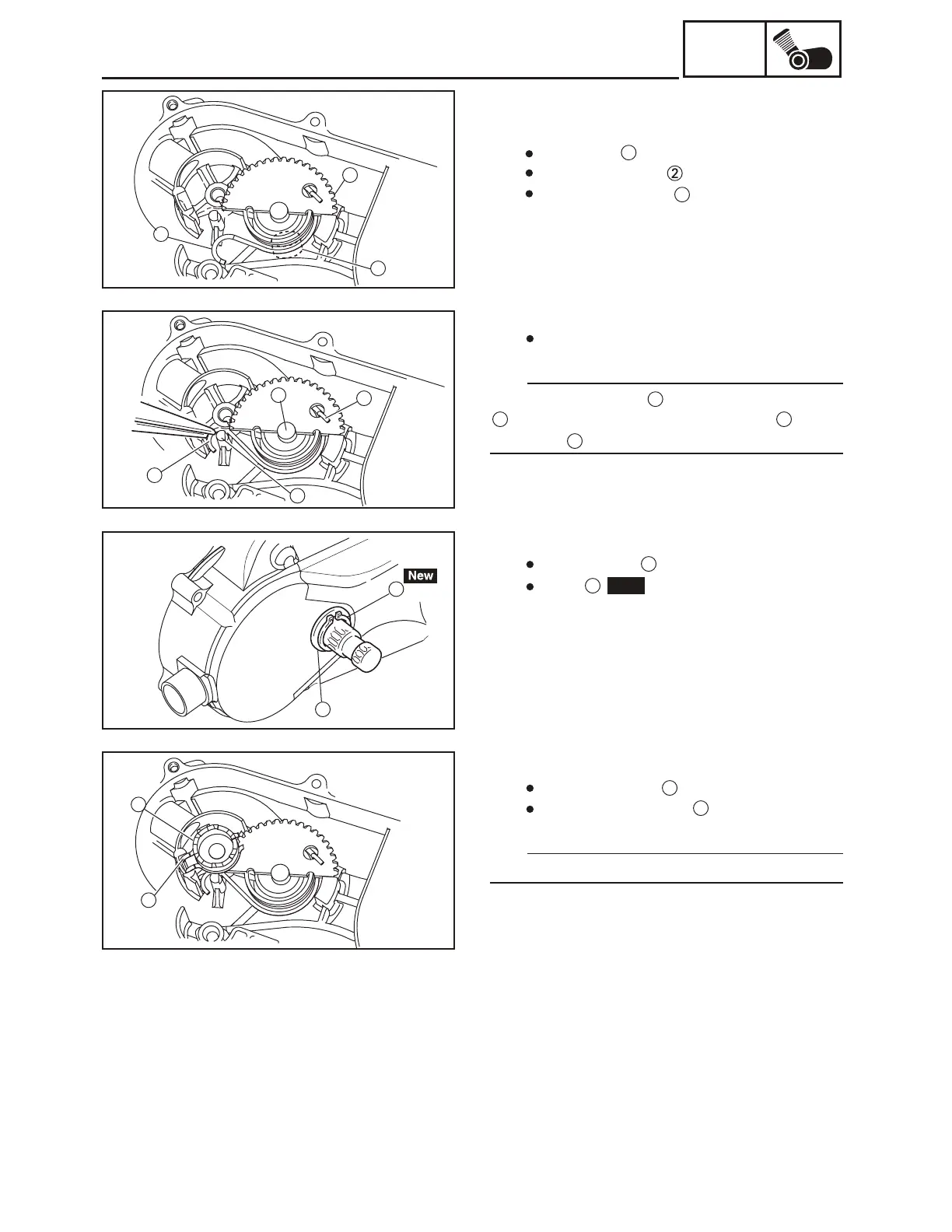

INSTALLINGTHE KICKSTARTER
1. Install:
solid bush
kickstarter shaft
kickstarter spring
2. Hook:
kickstarter spring
TIP
Hook the spring end on the kickstarter shaft
as shown, and hook the other end on the
projection .
3. Install:
plain washer
circlip
4. Install:
kick pinion gear
kick pinion gear clip
TIP
Install the clip at the position shown.
1
2
2
3
b
c
d
a
1
1
New
b
a
d
c
2
3
1
1
2
2
1
