Yamaha Raptor 90 YFM90RA 2011 User Manual

4 - 55
ENG
EAS00419

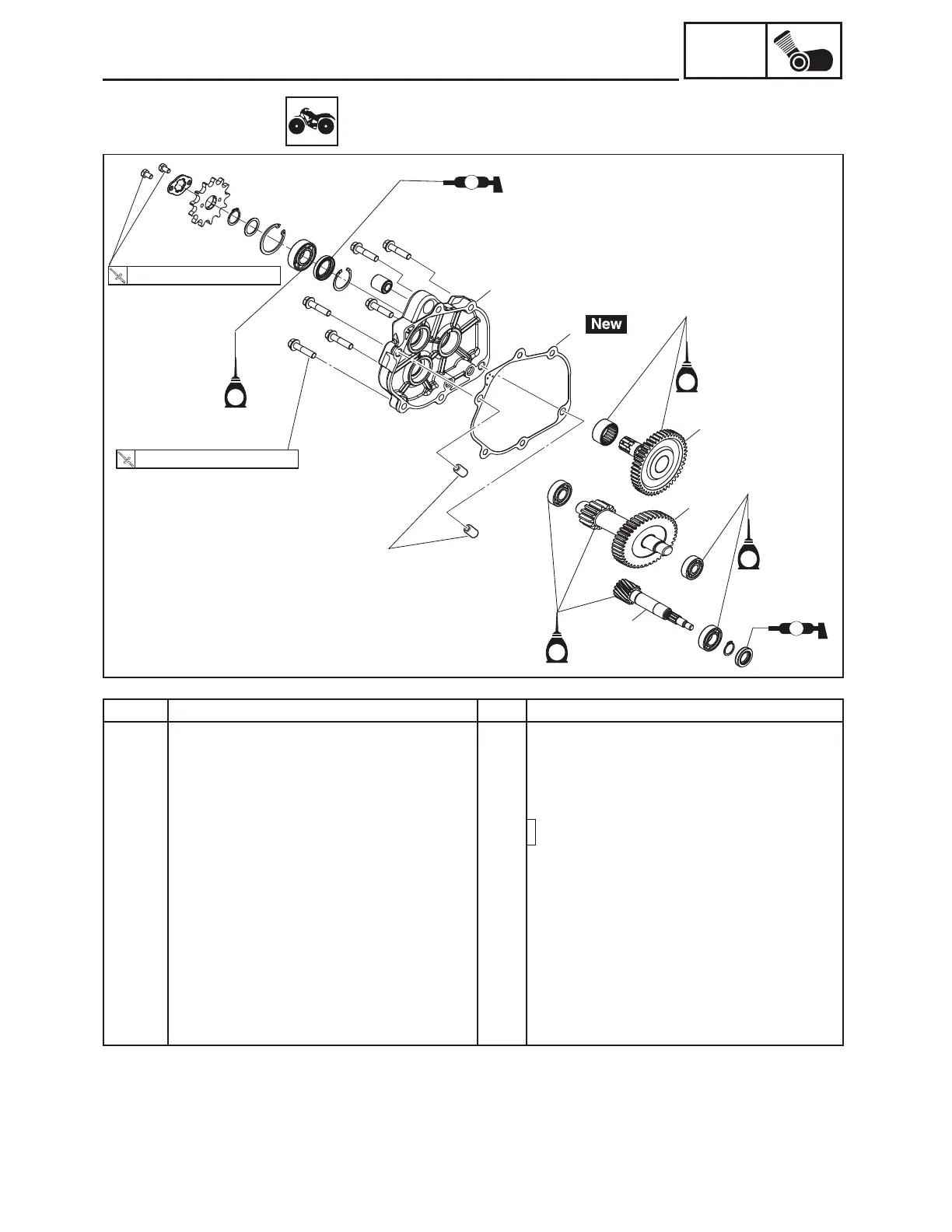

TRANSMISSION
RemarksOrder Job/Part Q’ty
1
2
3
4
5
6
1
1
2
1
1
1
Removing the lock washer, drive
sprocket, and circlip
Transmission oil
Crankcase cover
Belt drive
Secondary sheave
Crankcase cover- 2
Crankcase cover gasket- 2
Dowel pin
Primary drive gear shaft
Main axle
Drive axle
Remove the parts in the order listed.
Drain.
Refer to “BELT DRIVE “.
Refer to “V-BELT, CLUTCH, PRIMARY
AND SECONDARY SHEAVE “.
For installation, reverse the removal pro-
cedure.
TRANSMISSION
G
G
G
B
B
G
1
2
3
4
5
6
25Nm(2.5m
kg, 18.0 ft lb)
10Nm(1.0m
•
•
•
•
kg, 7.2 ft lb)
