Output Channels  Mixing Engine section
27 RIVAGE PM10 Operation Manual
STEREO bus
1 FILTER
•HPF slope
You can specify -6 dB/oct, -12 dB/oct, -18 dB/oct, or -24 dB/oct.
•LPF slope
You can specify -6 dB/oct or -12 dB/oct.
2 EQ
•8 BAND PEQ
This is an eight-band parametric EQ. The following EQ types can be selected: PRECISE,
AGGRESSIVE, SMOOTH, or LEGACY. Two sets of EQ parameter settings (A and B) can be
saved for convenient comparison. The FREQUENCY parameter of each band is normally set
in 1/12 octave steps, but if you need more precise adjustment, you can set it in 1/24 octave
steps. The two bands LOW and HIGH can be switched to L SHELF (Low Shelving) and H
SHELF (High Shelving) respectively.
The selectable EQ types are the same as for input channels (page 21).
3 DYNAMICS
One dynamics processor module is provided. You can select a dynamics function from six types,
including GATE and COMP. Two types of compressor are provided: LEGACY COMP and
COMP 260. Two sets of dynamics parameter settings (A and B) can be saved for convenient
comparison.
The selectable dynamics types are the same as for input channels (page 22).
• KEY IN SOURCE
Selects the source of the key-in signal.
In addition to SELF, the key-in signal can also be selected directly from another channel or
input patch. You can use an HPF, BPF, or LPF as a KEY IN FILTER.
4 INSERT
Two inserts are provided: Insert 1 and Insert 2. In each insert, you can insert up to four plug-ins/
GEQ/PEQ/external devices (via the I/O jacks).
Each insert point can be freely specified independently.
5 DELAY
Up to 1000 msec of delay is provided on each channel. The position at which the delay is
inserted is fixed at pre-fader. You can select the delay time unit from the following: meter, feet,
sample, msec, frame, depending on your application.

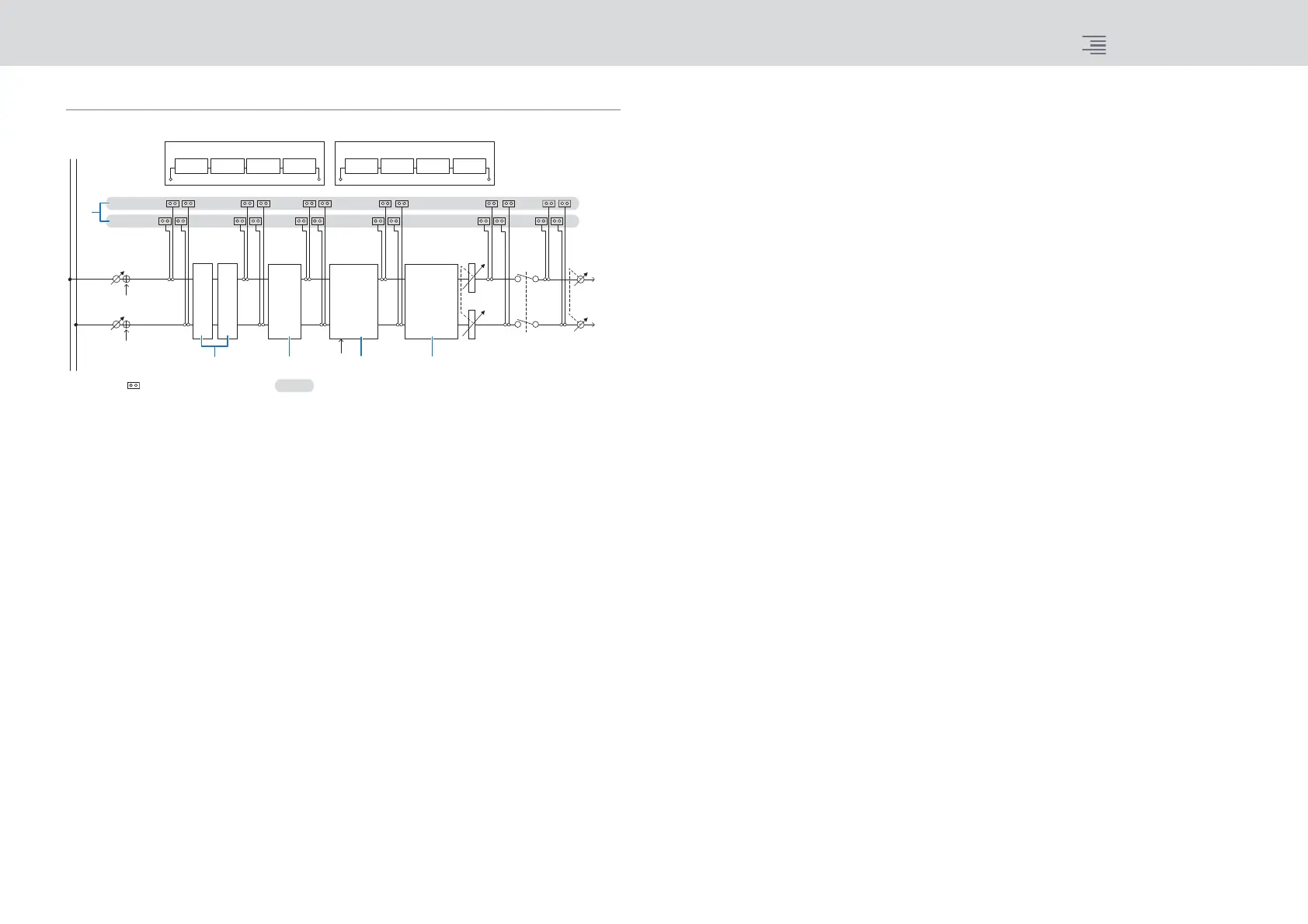

ON
BALANCE
STEREO A/B
L R
LEVEL/
DCA1-24
To
OUTPUT
PATCH
To
OUTPUT
PATCH
DIMMER
TALKBACK
INSERT 1
PLUG-IN 1
PLUG-IN 2
PLUG-IN 3
PLUG-IN 4
INSERT 2
PLUG-IN 1
PLUG-IN 2
PLUG-IN 3
PLUG-IN 4
HPF LPF
8 BAND
PEQ
DELAY
Max.1000ms
DYNAMICS
INSERT 1
INSERT 2
POST
ON
PRE
FILTER
PRE
EQ
PRE
DYN
PRE
DELAY
POST
FADER
4
1
2
3 5
DIMMER
TALKBACK
KEY IN
One can be selected within the area
