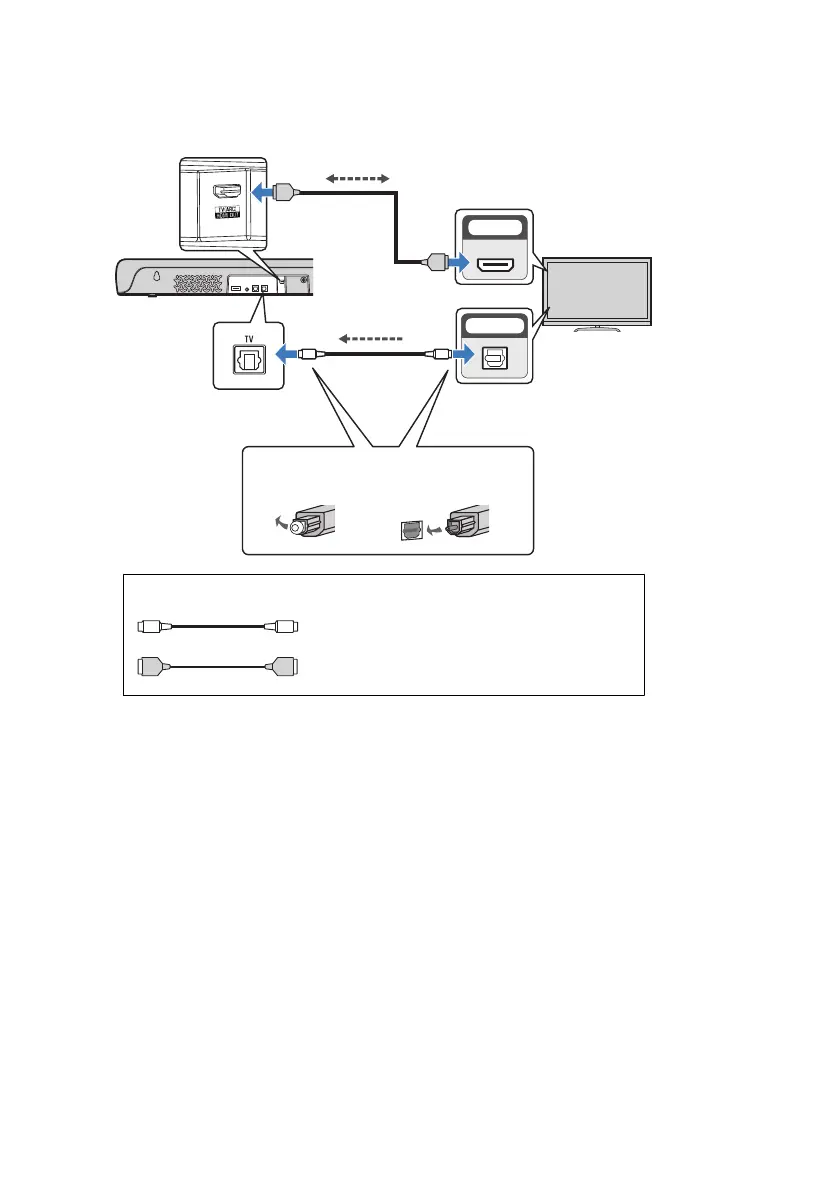

1 Connect a TV to the sound bar.
OPTICAL
HDMI IN
OO OO
HDMI
HDMI
HDMI
HDMI OUT/TV (ARC) jack
Sound bar (rear)
TV jack
Digital optical audio output jack
HDMI input jack
TV
Remove the cap.
1. 2.
Check the
orientation of the
plug.
Control signal
TV’s audio signal
Cable to use
HDMI cable (commercially available)
HDMI HDMI
Digital optical audio cable (included)
O O
28
PREPARATION > Connecting a TV
