Yamaha TT-R125(R) 2002 User Manual

5 - 48
CHAS

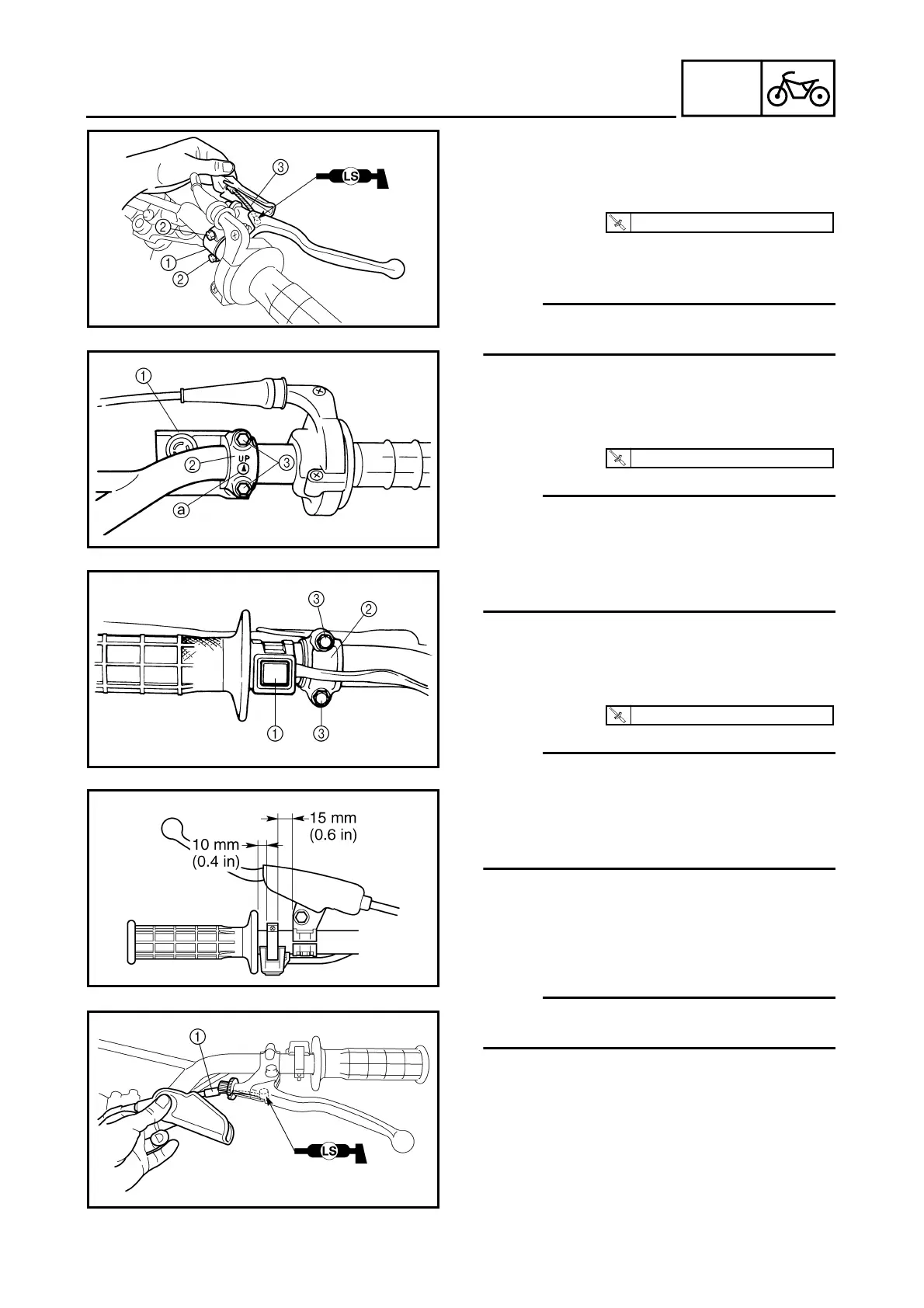

6. Install:
TT-R125
● Front brake lever holder 1
● Bolts (front brake lever holder) 2
● Front brake cable 3
● Clamp
N
OTE:
Apply the lithium soap base grease on the
front brake cable end.
TT-R125LW
● Brake master cylinder 1
● Brake master cylinder bracket 2
● Bolt (brake master cylinder bracket) 3
N
OTE:
● Install the bracket so that the arrow mark a
face upward.
● First tighten the bolts on the upper side of the
brake master cylinder bracket, and then
tighten the bolts on the lower side.
7. Install:
● Engine stop switch 1
● Clutch lever holder 2
● Bolts (clutch lever holder) 3
N
OTE:
● The engine stop switch and clutch lever
holder should be installed according to the
dimensions shown.
● Pass the engine stop switch lead in the mid-
dle of the clutch lever holder.
8. Install:
● Clutch cable 1
● Clamp
N
OTE:
Apply the lithium soap base grease on the
clutch cable end.
9. Adjust:
● Brake lever free play
Refer to “FRONT BRAKE ADJUST-
MENT” section in the CHAPTER 3.
● Clutch lever free play
Refer to “CLUTCH ADJUSTMENT”
section in the CHAPTER 3.
T
R
.
.
4 Nm (0.4 m · kg, 2.9 ft · lb)
T
R
.
.
9 Nm (0.9 m · kg, 6.5 ft · lb)
T
R
.
.
4 Nm (0.4 m · kg, 2.9 ft · lb)
HANDLEBAR
