Fuse box
NOTICE
ECB00641
To prevent accidental short-circuiting,
turn off the main switch when checking or
replacing a fuse.
1. Turn off all electrical systems. (See page
5-1.)
2. Remove the hood. (See page 9-9.)
3. Remove the blown fuse, and then install a
new fuse of the specified amperage.
WARNING! Always use a fuse of the
specified amperage. Never use any
material in place of the proper fuse.
Using an improper fuse can cause
damage to the electrical system and
may lead to a fire.
[EWB03440]

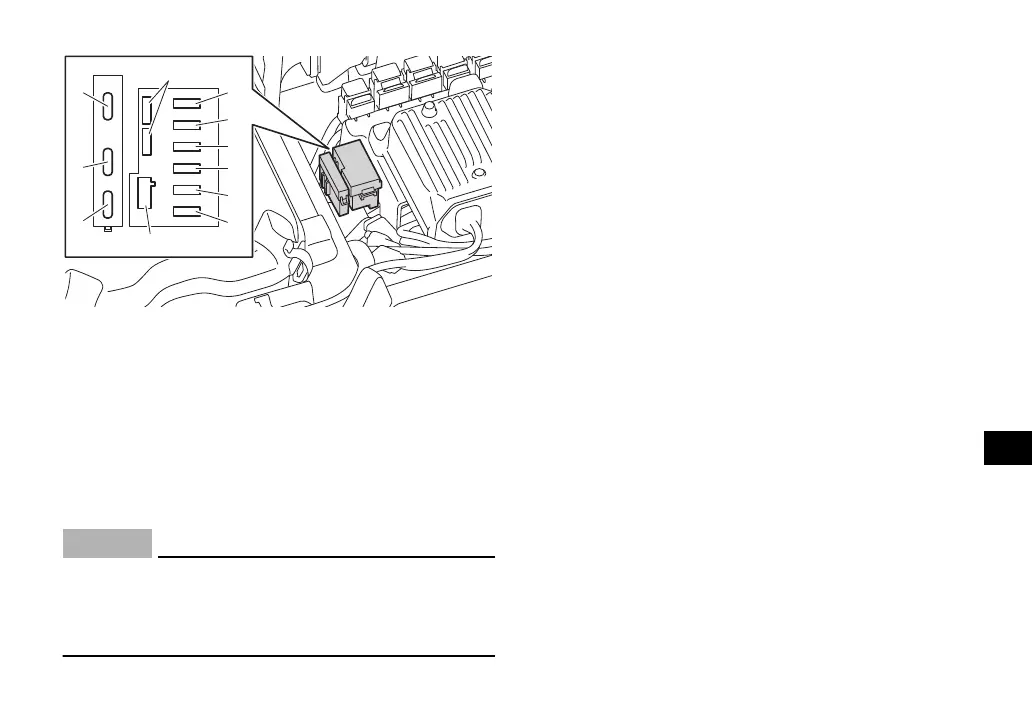

1. Auxiliary DC jack fuse “TERMINAL”
2. Electronic throttle valve fuse “ETV”
3. Spare fuse
4. Headlight fuse “HEAD”
5. Signaling system fuse “SIGNAL”
6. Four-wheel-drive motor fuse “DIFF”
7. Backup fuse “BACK UP” (for clock)
8. Ignition fuse “IGNITION”
9. Radiator fan motor fuse “FAN”
1
2
3
3
3
4
5
6
7
8
9
