5. Start the engine. (See page 7-2.)
6. After the engine starts, disconnect the
negative lead of the jumper cable from
the frame and charged battery, and then
disconnect the positive lead of the jump-
er cable from the charged battery and the
battery in the vehicle.
7. Install the hood.
EBU32665
Fuse replacement
The fuses are located under the hood. If an
electrical problem is suspected, check the
fuses and replace if necessary.

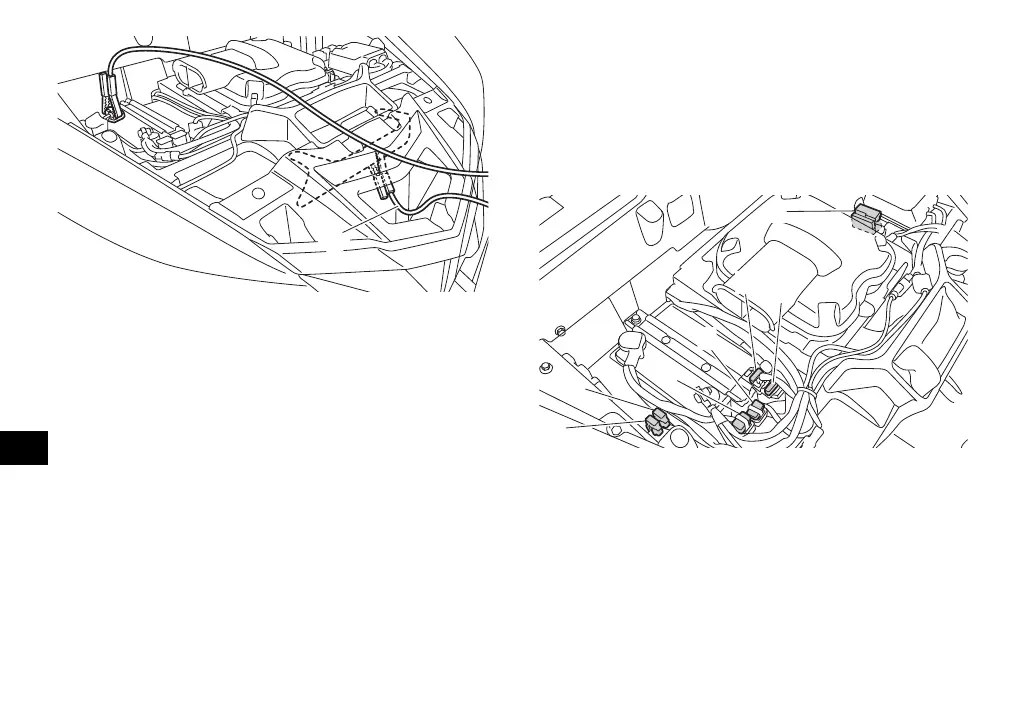

General layout
1. Jumper cable negative lead
1
1. Spare fuse
2. Accessory fuse “ACC”
3. Main fuse
4. EPS fuse
5. Fuel injection system spare fuse
6. Fuel injection system fuse
7. Fuse box
7
6
5
4
3
2
1
