Indicator lights and warning lights
EBU31270
Low-range indicator light “L”
This indicator light comes on when the drive
select lever is in the “L” position.
EBU31280
High-range indicator light “H”
This indicator light comes on when the drive
select lever is in the “H” position.
EBU31290
Neutral indicator light “N”
This indicator light comes on when the drive
select lever is in the “N” position.
EBU31300
Reverse indicator light “R”
This indicator light comes on when the drive
select lever is in the “R” position.
EBU31310
Parking brake indicator light “ ”
This indicator light comes on when the park-
ing brake is applied.

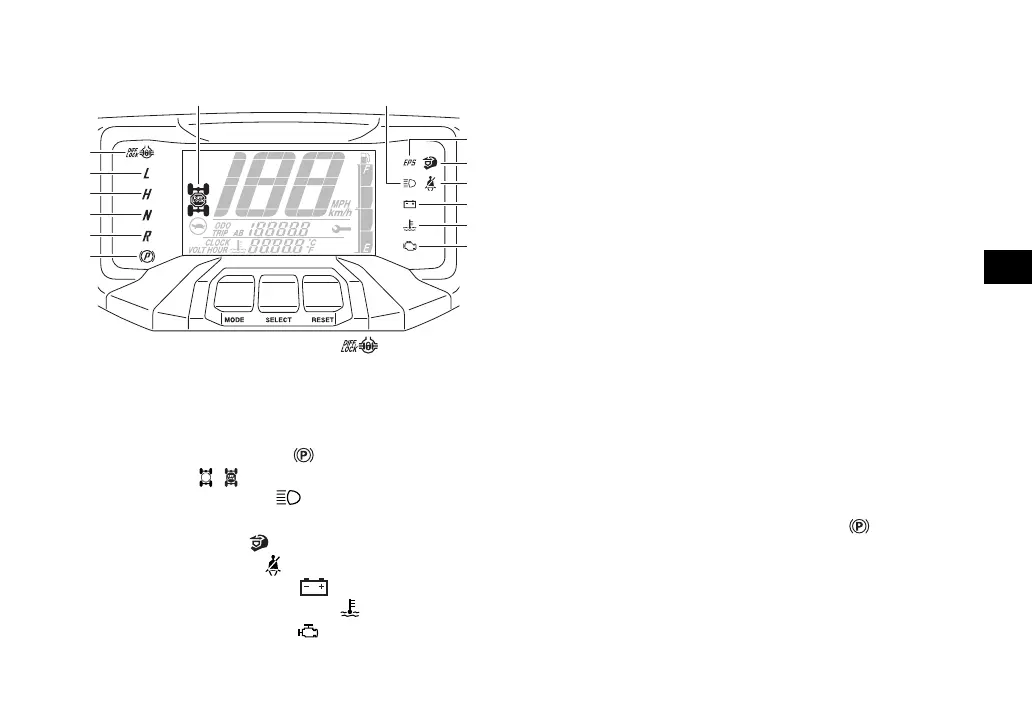

1. Differential gear lock indicator light “ ”
2. Low-range indicator light “L”
3. High-range indicator light “H”
4. Neutral indicator light “N”
5. Reverse indicator light “R”
6. Parking brake indicator light “ ”
7. Drivetrain icon “ / ”
8. High beam indicator light “ ”
9. Electric Power Steering warning light “EPS”
10.Helmet reminder light “ ”
11.Seat belt reminder light “ ”
12.Battery voltage warning light “ ”
13.Coolant temperature warning light “ ”
14.Engine trouble warning light “ ”
1
78
2
3
4
5
6
11
10
9
12
13
14
