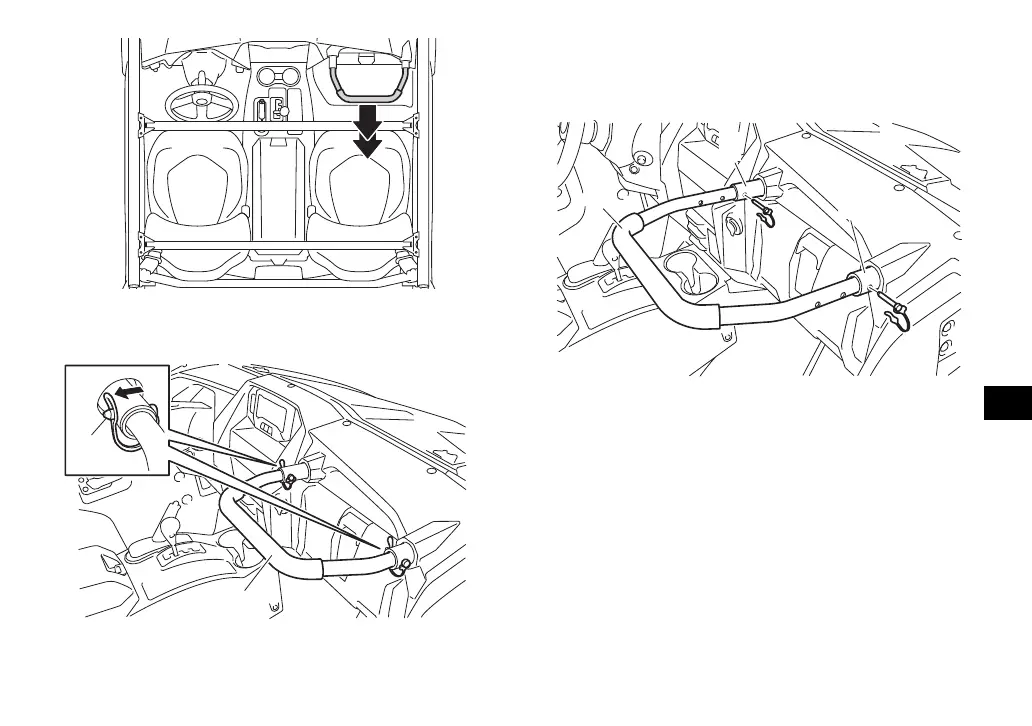

Adjust the handhold position as follows.
1. Remove the locking pins.
2. Slide the handhold to the desired position
and align the holes in the handhold bar
with the holes in the handhold supports.
3. Insert the pins into the holes and secure
them with the wire loops. Make sure that
the handhold is properly secured before
starting off.
1. Passenger handhold
2. Locking pin
1
2
1. Handhold bar
2. Handhold support
1
2
2
