Yamaha XSR700M 2021 - Indicator and Warning Lights

Instrument and control functions
4-2
4

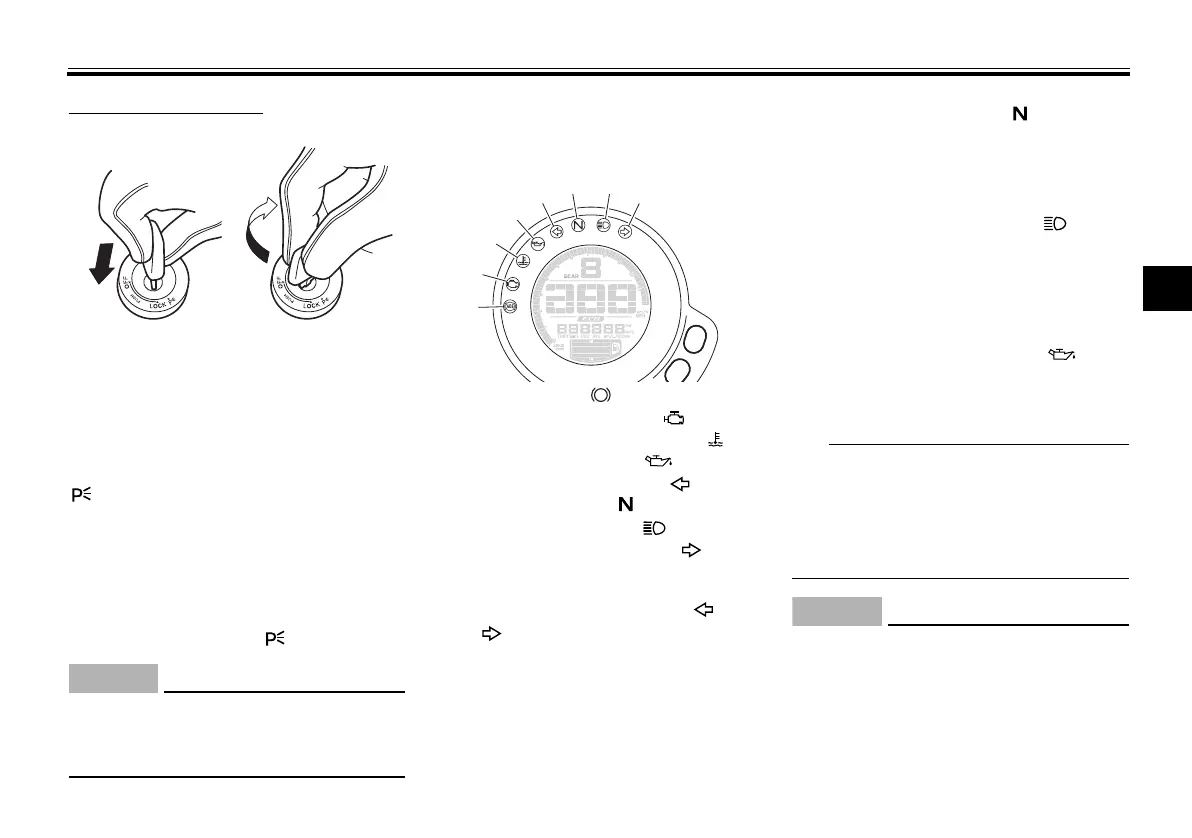

To unlock the steering
From the “LOCK” position, push the
key in and turn it to “OFF”.
EAU59680
(Parking)
The hazard lights and turn signal lights
can be turned on, but all other electri-
cal systems are off. The key can be re-
moved.
The steering must be locked before the
key can be turned to “ ”.
NOTICE
ECA20760
Using the hazard or turn signal lights
for an extended length of time may
cause the battery to discharge.
EAU4939G
Indicator lights and warning
lights
EAU11032
Turn signal indicator lights “ ”
and “”
Each indicator light will flash when its
corresponding turn signal lights are
flashing.
EAU11061
Neutral indicator light “ ”
This indicator light comes on when the
transmission is in the neutral position.
EAU11081
High beam indicator light “ ”
This indicator light comes on when the
high beam of the headlight is switched
on.
EAU59963
Oil pressure warning light “ ”
This warning light comes on if the en-
gine oil pressure is low.
TIP
When the vehicle is turned on, the light
should come on, go off briefly, and
then remain on until the engine is start-
ed. Otherwise, have a Yamaha dealer
check the vehicle.
NOTICE
ECA21211
If the warning light comes on when
the engine is running, stop the en-
gine and check the oil level. If the oil
level is low, add sufficient oil of the
recommended type. If the warning
1. Push.
2. Turn.
12
1. ABS warning light “ ”
2. Engine trouble warning light “ ”
3. Coolant temperature warning light “ ”
4. Oil pressure warning light “ ”
5. Left turn signal indicator light “ ”
6. Neutral indicator light “ ”
7. High beam indicator light “ ”
8. Right turn signal indicator light “ ”
1
2
3
4
5
6
7
8
ABS
