Yamaha XSR700M 2021 - Replacing the Fuses

Periodic maintenance and adjustment
7-32
7
EAUM3672
Replacing the fuses
The main fuse and the fuse boxes are
located under the seat.
To access the fuses
1. Remove the seat. (See page 4-16.)
2. Remove the seat holder by remov-
ing the bolts.
3. Remove the diagnostic connector
by pulling it upward.
4. Remove the battery cover by re-
moving the bolts.
TIP
To access the main fuse, remove the
starter relay cover as shown.

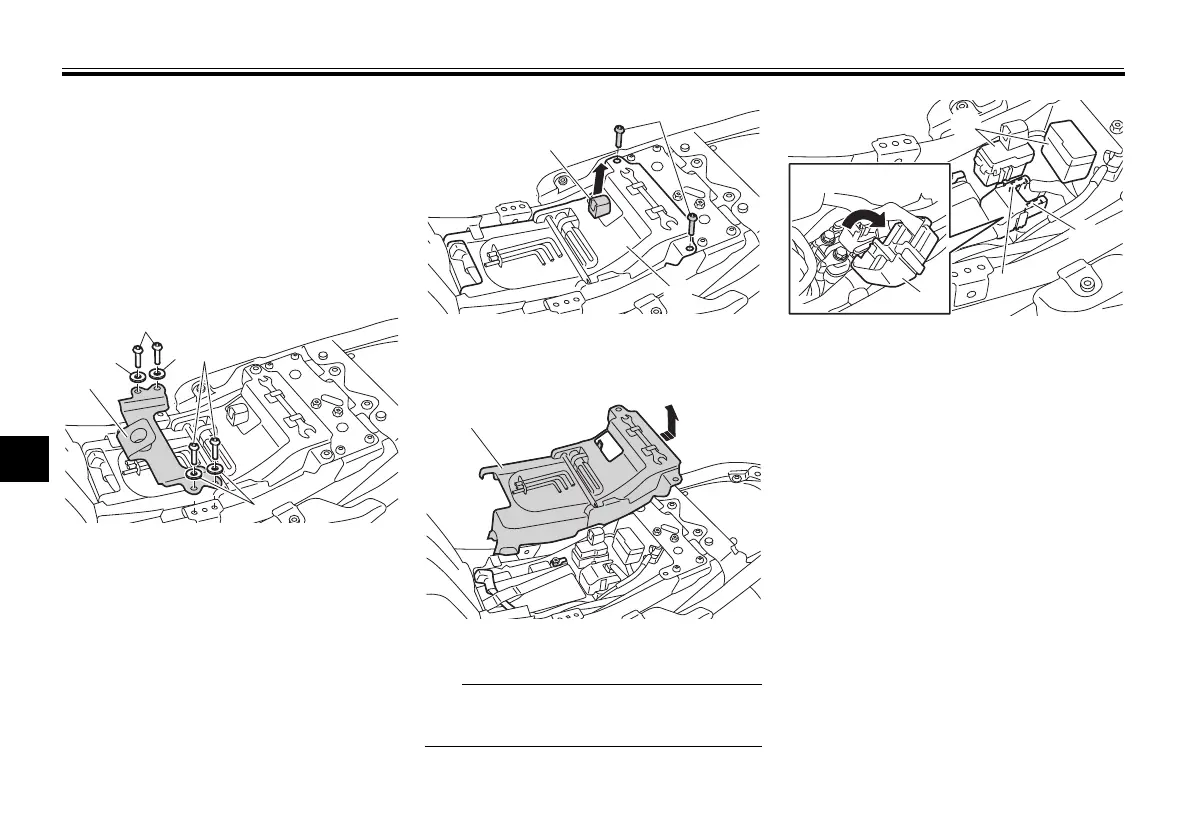

1. Seat holder
2. Bolt
3. Washer
2
2
1
3
3
3
1. Diagnostic connector
2. Battery cover
3. Bolt
1. Battery cover
3
1
2
1
1. Starter relay cover
2. Fuse box
3. Spare main fuse
4. Main fuse
ZAUM1380
2
3
4
1
