Instrument and control functions
4-2
1
2
3
4
5
6
7
8
9
10
11
12

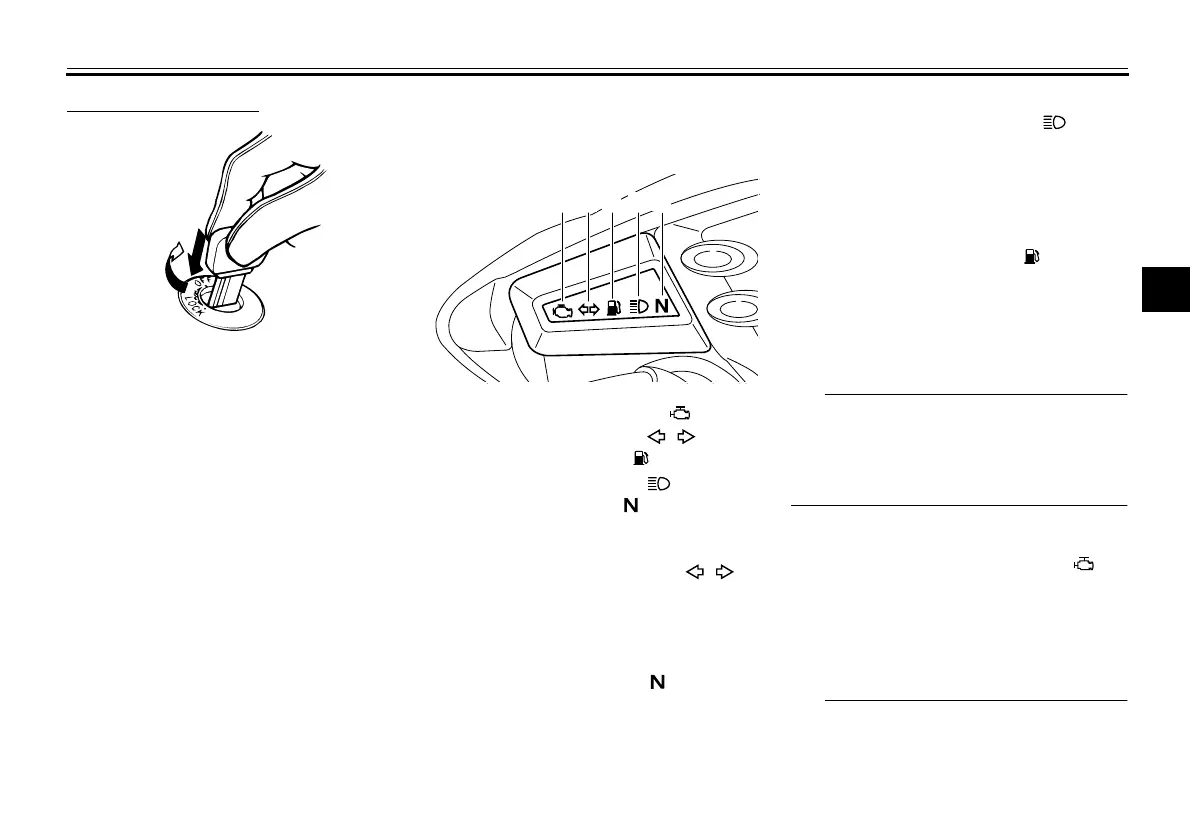

To unlock the steering
From the “LOCK” position, push the
key and turn it to “OFF”.
EAU4939G
Indicator lights and warning
lights
EAU11022
Turn signal indicator light “ ”
This indicator light flashes when a turn
signal light is flashing.
EAU11061
Neutral indicator light “ ”
This indicator light comes on when the
transmission is in the neutral position.
EAU11081
High beam indicator light “ ”
This indicator light comes on when the
high beam of the headlight is switched
on.
EAU11342
Fuel level warning light “ ”
This warning light comes on when the
fuel level drops below approximately
1.8 L (0.48 US gal, 0.40 Imp.gal). When
this occurs, refuel as soon as possible.
When the vehicle is turned on, the light
should come on for a few seconds and
then go off. Otherwise, have a Yamaha
dealer check the electrical circuit.
EAU11487
Engine trouble warning light “ ”
This warning light comes on if a prob-
lem is detected in the engine. If this oc-
curs, have a Yamaha dealer check the
vehicle as soon as possible.
When the vehicle is turned on, the light
should come for a few seconds and
then go off. Otherwise, have a Yamaha
1. Push.
2. Turn.
1. Engine trouble warning light “ ”
2. Turn signal indicator light “ ”
3. Fuel level warning light “ ”
4. High beam indicator light “ ”
5. Neutral indicator light “ ”
