Instrument and control functions
4-6
1
2
3
4
5
6
7
8
9
10
11
12
EAU12402
Dimmer switch “ / ”
Set this switch to “ ” for the high
beam and to “ ” for the low beam.
EAU12461
Turn signal switch “ / ”
To signal a right-hand turn, push this
switch to “ ”. To signal a left-hand
turn, push this switch to “ ”. When re-
leased, the switch returns to the center
position. To cancel the turn signal
lights, push the switch in after it has re-
turned to the center position.
EAU12501
Horn switch “ ”
Press this switch to sound the horn.
EAU12663
Engine stop switch “ / ”
Set this switch to “ ” (run) before start-
ing the engine. Set this switch to “ ”
(stop) to stop the engine in case of an
emergency, such as in the event of an
overturn or if the throttle is stuck.
EAU12713
Start switch “ ”
Push this switch to crank the engine
with the starter. See page 6-2 for start-
ing instructions prior to starting the en-
gine.
EAU12823

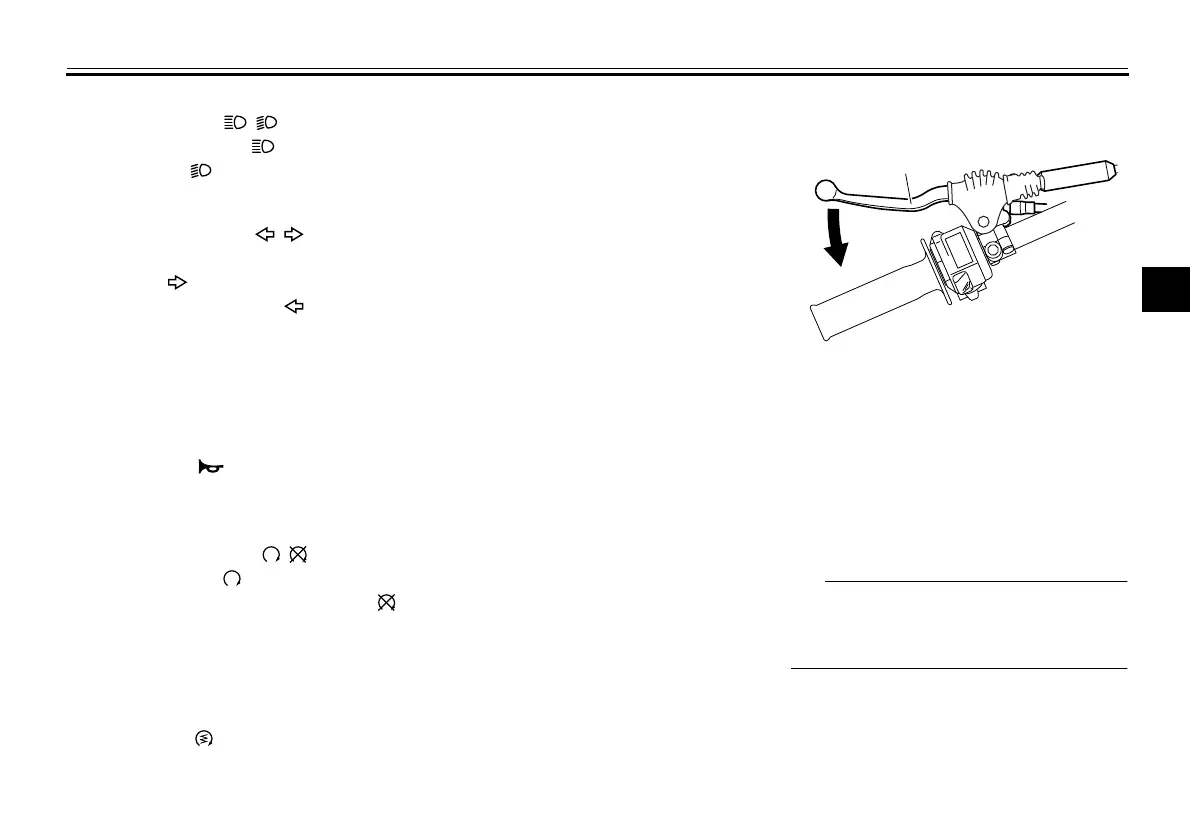

Clutch lever
To disengage the drivetrain from the
engine, such as when shifting gears,
pull the clutch lever toward to the han-
dlebar. Release the lever to engage the
clutch and transmit power to the rear
wheel.
The lever should be pulled rapidly and
released slowly for smooth shifting.
(See page 6-3.)
1. Clutch lever
