Yamaha XT250 2021 - Removing and Installing the Cowling and Panels

Periodic maintenance and adjustment
7-9
1
2
3
4
5
6
7
8
9
10
11
12
EAU18724

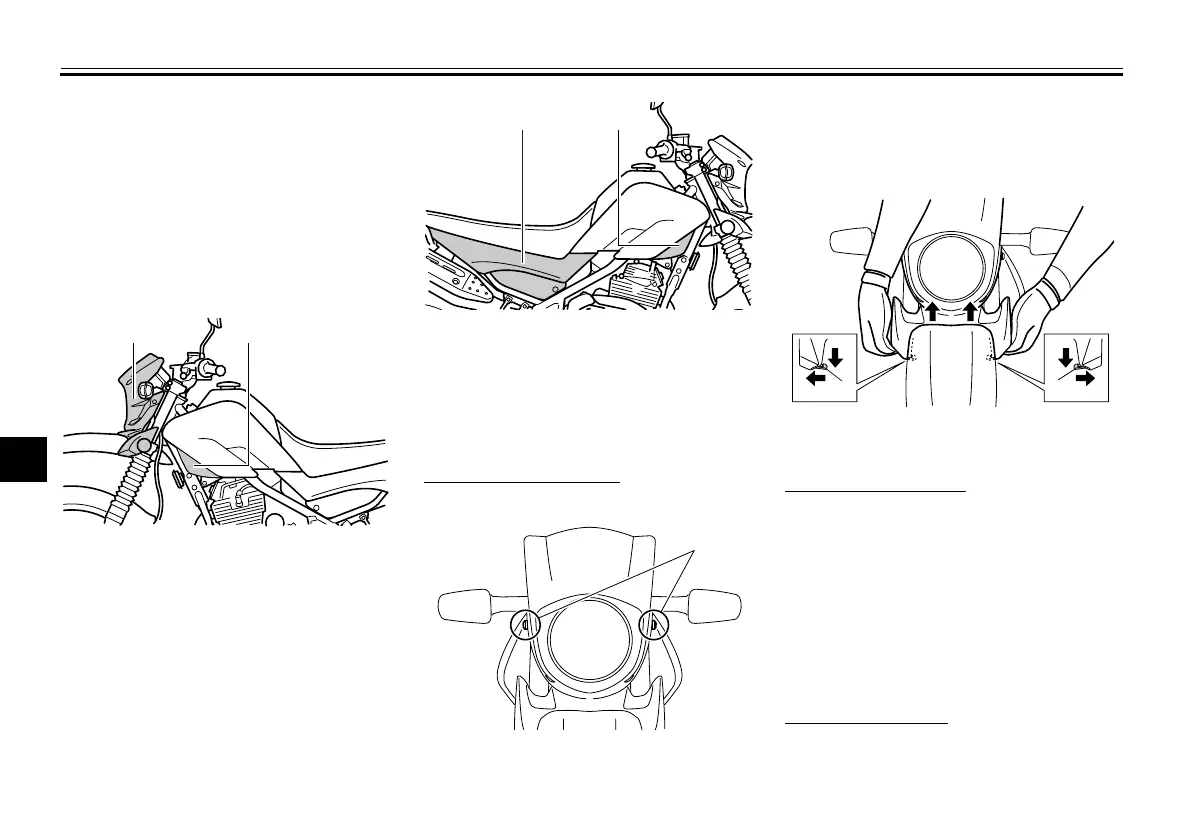

Removing and installing the
cowling and panels
The cowling and panels shown need to
be removed to perform some of the
maintenance jobs described in this
chapter. Refer to this section each time
the cowling or a panel needs to be re-
moved and installed.
EAU44842
Cowling A
To remove the cowling
1. Remove the bolts.
2. Unhook both projections at the
bottom of the cowling by pulling it
downward, and then pull the cowl-
ing forward as shown.
To install the cowling
1. Place the cowling in the original
position.
2. Install the bolts.
EAU44852
Panels A and B
To remove a panel
1. Remove the screw and collar.
1. Cowling A
2. Panel A
1
2
1. Panel B
2. Panel C
1. Bolt
1
2
1
1. Projection
1
1
