ing the battery, be sure to turn
the main switch off, then con-
nect the positive lead before
connecting the negative
lead.
[ECA16842]
ECA16531
Always keep the battery charged.
Storing a discharged battery can
cause permanent battery damage.
EAU53906
Replacing the fuses
The main fuse and the fuse boxes,
which contain the fuses for the individu-
al circuits, are located behind panel C.
(See page 7-9.)
If a fuse is blown, replace it as follows.
1. Turn the main switch off and turn
off the electrical circuit in question.
2. Remove the blown fuse, and then
install a new fuse of the specified
amperage. WARNING! Do not
use a fuse of a higher amperage
rating than recommended to
avoid causing extensive dam-
age to the electrical system and
possibly a fire.
[EWA15132]

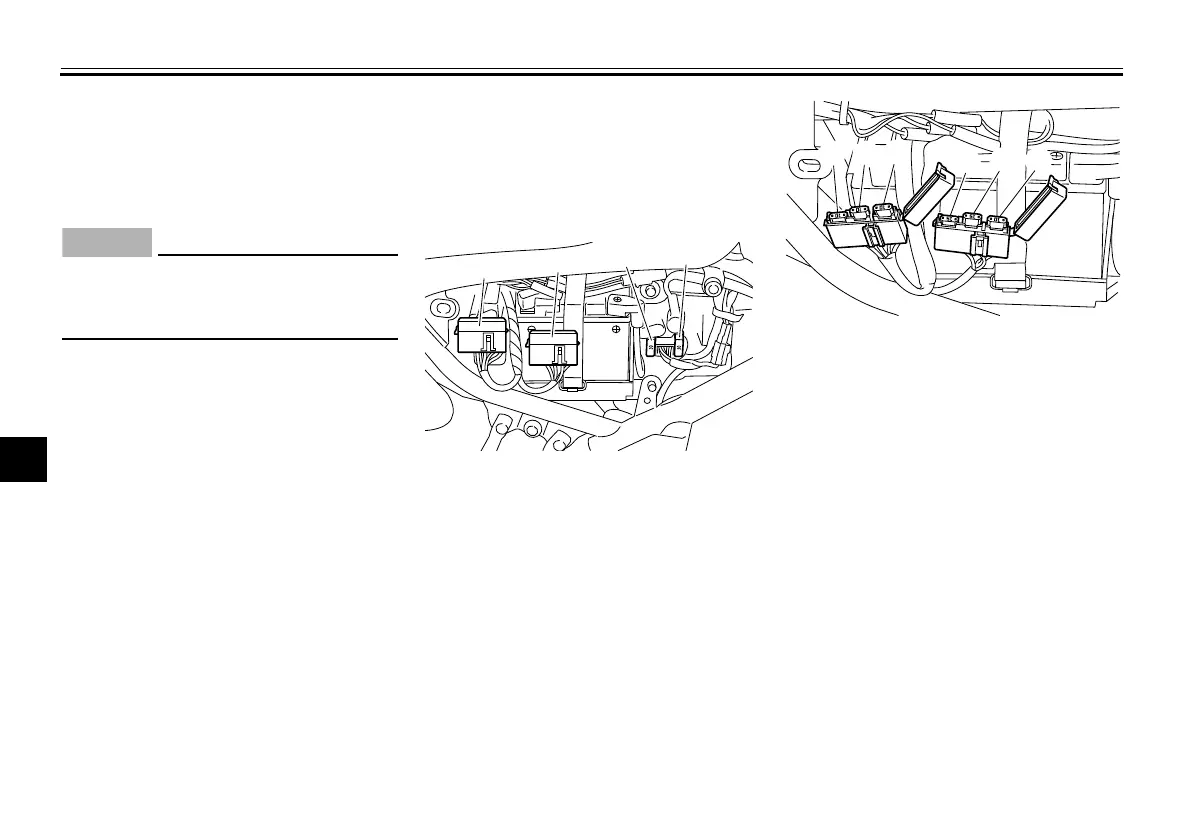

1. Fuse box 1
2. Fuse box 2
3. Main fuse
4. Spare main fuse
1. Spare fuse
2. Ignition fuse
3. Fuel injection system fuse
4. Spare fuse
5. Headlight fuse
6. Signaling system fuse
