EAU00138
Engine stop switch
Set this switch to “$” to stop the
engine in case of an emergency,
such as when the motorcycle over-
turns or when the throttle cable is
stuck.
EAU00143
Start switch “,”
Push this switch to crank the engine
with the starter.
EC000005
cC
See page 5-1 for starting instruc-
tions prior to starting the engine.

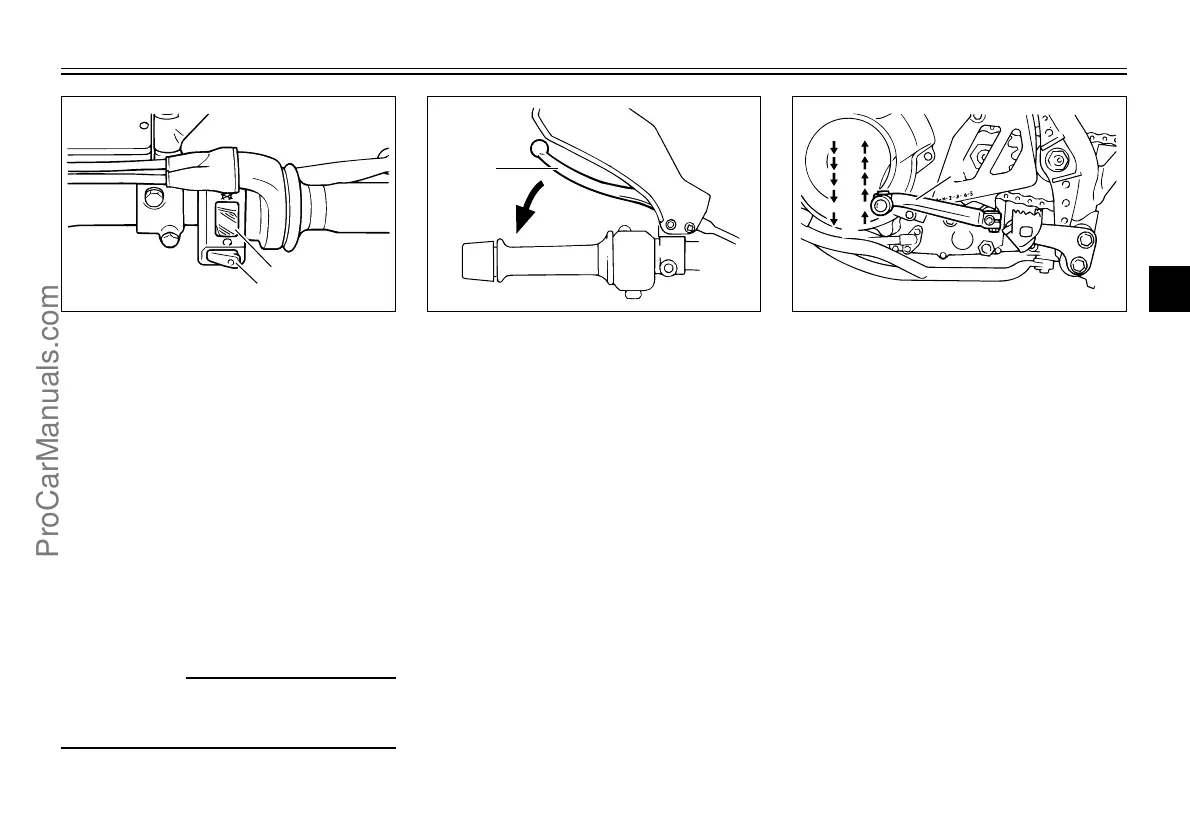

1. Engine stop switch
2. Start switch “,”
INSTRUMENT AND CONTROL FUNCTIONS
1
2
3
4
5
6
7
8
9
EAU00152
Clutch lever
The clutch lever is located at the left
handlebar grip. To disengage the
clutch, pull the lever toward the han-
dlebar grip. To engage the clutch,
release the lever. The lever should
be pulled rapidly and released slowly
for smooth clutch operation.
The clutch lever is equipped with a
clutch switch, which is part of the igni-
tion circuit cut-off system. (See page
3-12 for an explanation of the ignition
circuit cut-off system.)
1
1. Clutch lever
1
5
4
3
2
N
1
1. Shift pedal
N. Neutral
EAU00157
Shift pedal
The shift pedal is located on the left
side of the engine and is used in
combination with the clutch lever
when shifting the gears of the
5-speed constant-mesh transmission
equipped on this motorcycle.
