6-32
PERIODIC MAINTENANCE AND MINOR REPAIR
1
2
3
4
5
6
7
8
9
EAU03497

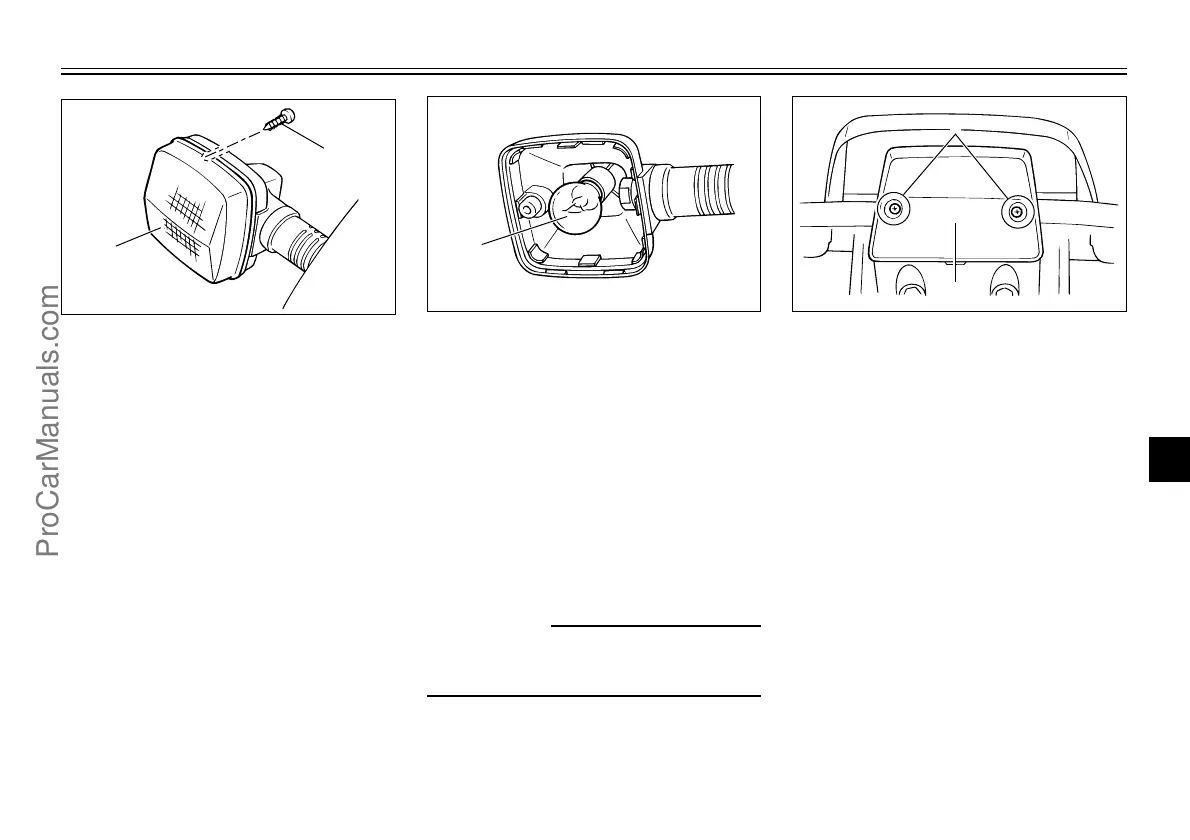

Replacing a turn signal light
bulb
1. Remove the turn signal light lens
by removing the screw.
2. Remove the defective bulb by
pushing it in and turning it coun-
terclockwise.
3. Insert a new bulb into the socket,
push it in, and then turn it clock-
wise until it stops.
4. Install the lens by installing the
screw.
ECA00065
cC
Do not overtighten the screw, oth-
erwise the lens may break.
1. Screw
2. Lens
1. Bulb
EAU01623
Replacing the tail/brake light
bulb
1. Remove the tail/brake light lens
by removing the screws.
1. Screw (×2)
2. Lens
3WR-9-2A (E) 6 6/28/00 11:17 AM Page 33
