3-9
INSTRUMENT AND CONTROL FUNCTIONS
1
2
3
4
5
6
7
8
9

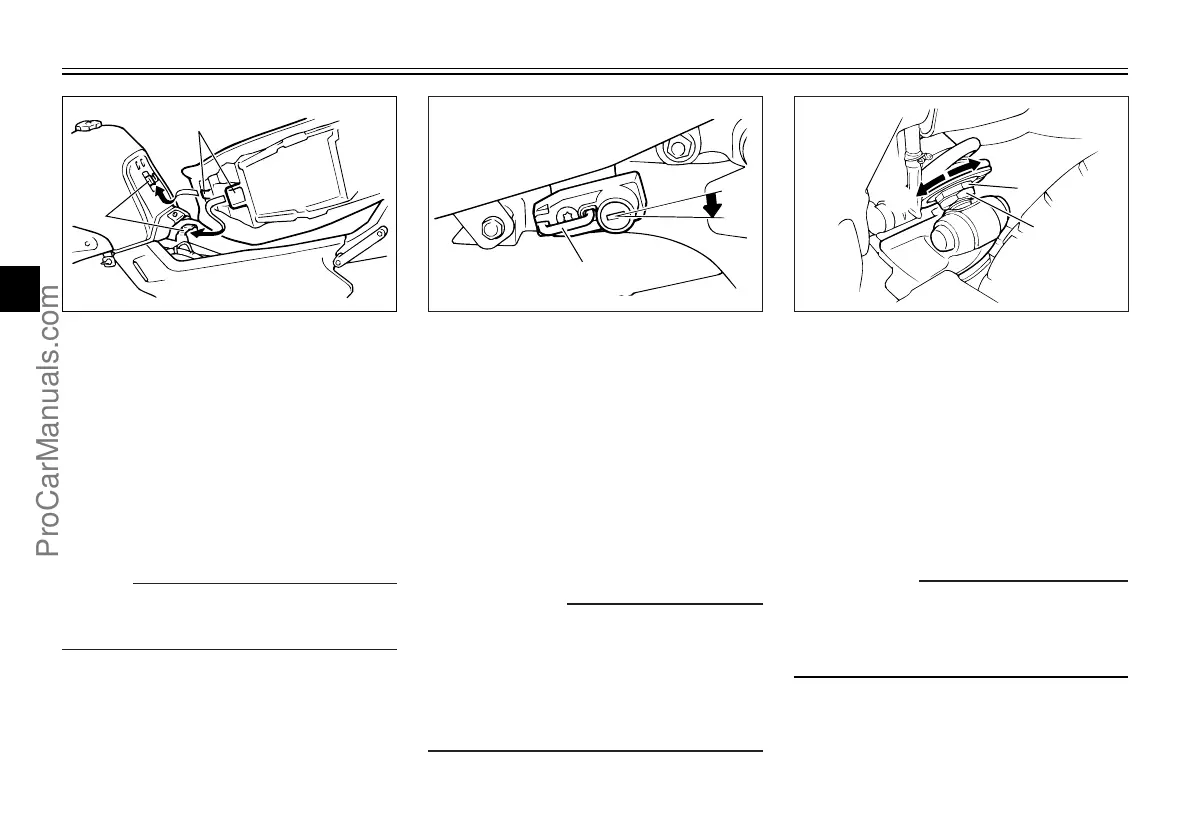

1. Projection (×2)
2. Seat holder (×2)
To install the seat
1. Insert the projections on the front
of the seat into the seat holders
as shown.
2. Place the seat in the original
position, and then tighten the
bolts.
NOTE:
Make sure that the seat is properly
secured before riding.
EAU00260
Helmet holder
To open the helmet holder, insert the
key into the lock, and then turn the
key as shown.
To lock the helmet holder, place it in
the original position, and then remove
the key.
EW000030
w
Never ride with a helmet attached
to the helmet holder, since the hel-
met may hit objects, causing loss
of control and possibly an acci-
dent.
1. Helmet holder
a. Open
EAU03591
Adjusting the shock
absorber assembly
This shock absorber assembly is
equipped with a spring preload
adjusting nut.
EC000015
cC
Never attempt to turn an adjusting
mechanism beyond the maximum
or minimum settings.
Adjust the spring preload as follows.
1. Loosen the locknut.
1. Locknut
2. Adjusting nut
3WR-9-2A (E) 1~5 6/28/00 9:00 AM Page 28
