Fuel cock
The fuel cock supplies fuel from the
tank to the carburetor while filtering it
also.
The fuel cock has three positions:
OFF
With the lever in this position, fuel will
not flow. Always return the lever to
this position when the engine is not
running.
Recommended fuel:
Regular gasoline
For Australia:
Unleaded fuel only
Fuel tank capacity:
Total amount:
15.0 L
Reserve amount:
2.0 L
RES
ON
FUEL
OFF
1

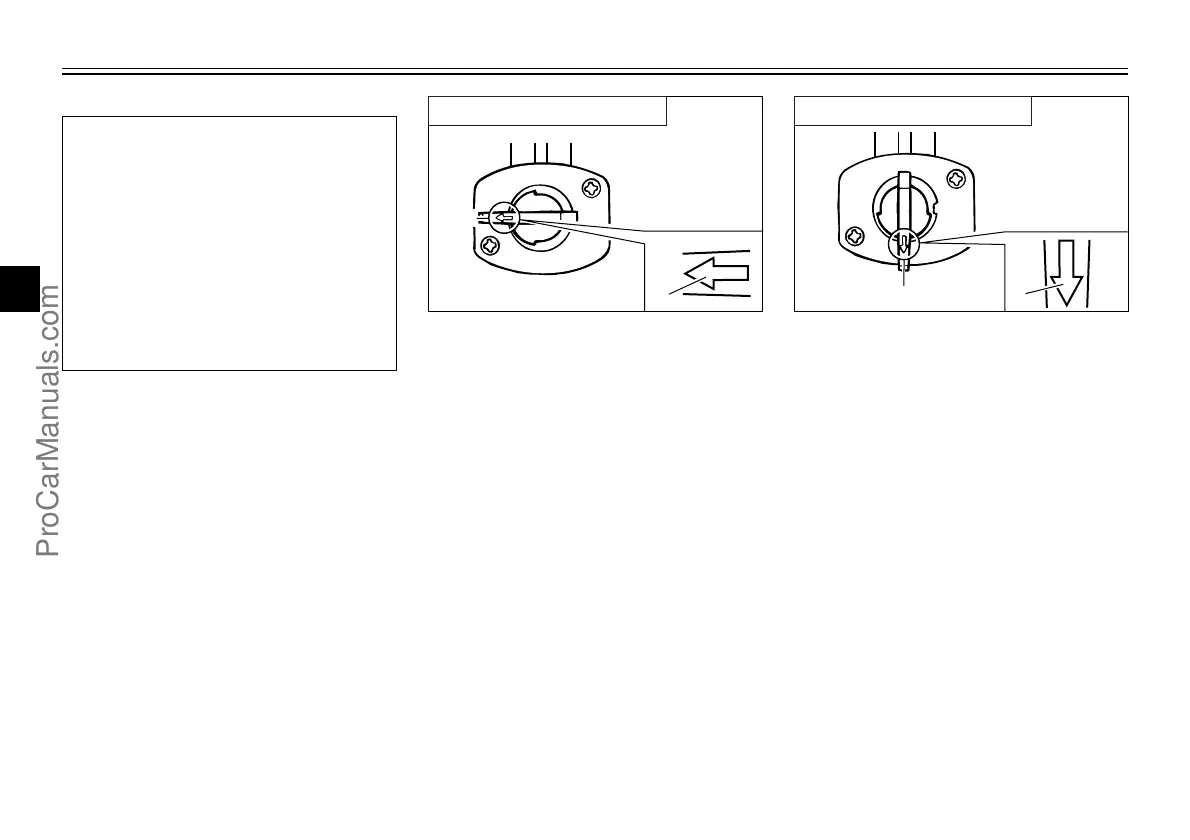

1. Arrow mark positioned over “OFF”
ON
With the lever in this position, fuel
flows to the carburetor. Normal riding
is done with the lever in this position.
1. Arrow mark positioned over “ON”
OFF: Closed position ON: Normal position
