6-35
PERIODIC MAINTENANCE AND MINOR REPAIR
1
2
3
4
5
6
7
8
9

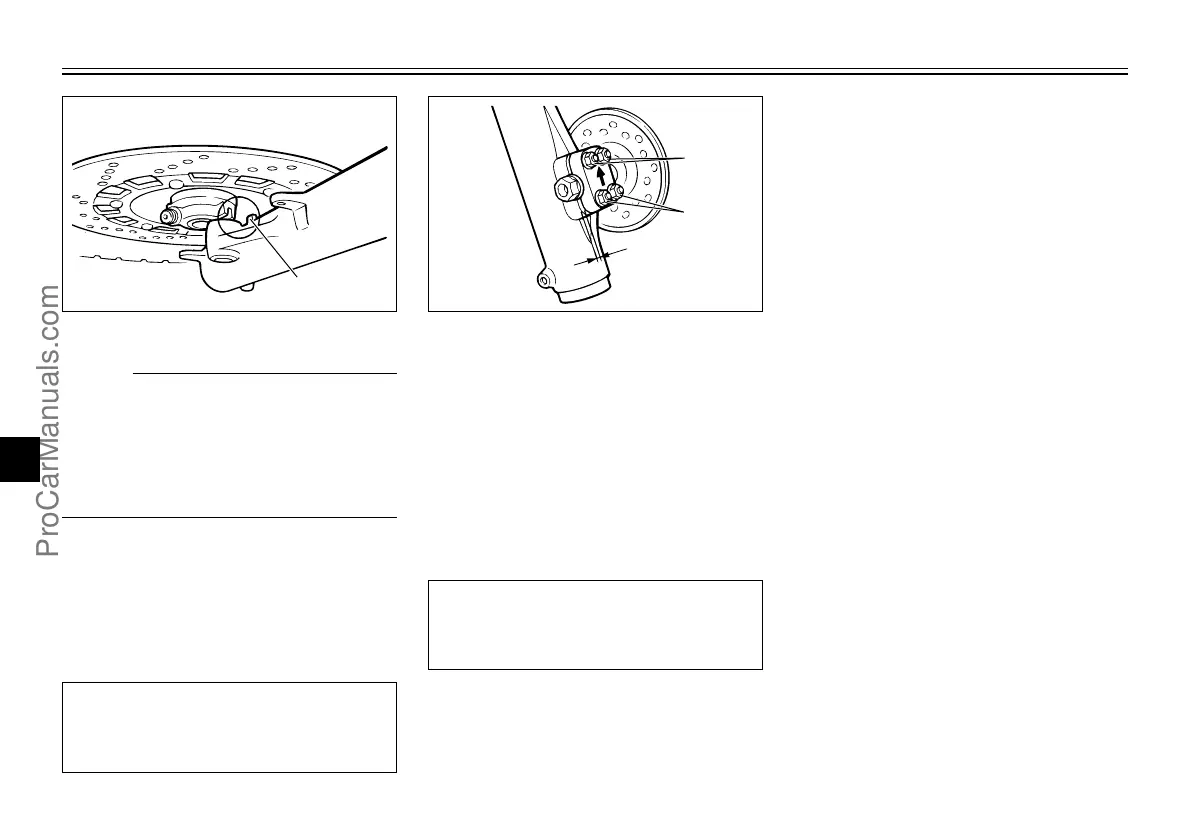

6. Tighten the axle holder nuts to
the specified tightening torque.
Tighten the upper nuts first and
then lower ones. When tightened
in this sequence, there should be
a gap formed at the bottom of
the axle holder.
1. Upper nut (×2)
2. Lower nut (×2)
a. Gap
NOTE:
Make sure that there is enough space
between the brake pads before insert-
ing the brake disc and that the slot in
the speedometer gear unit fits over
the retainer on the fork leg.
3. Install the wheel axle.
4. Lower the front wheel so that it is
on the ground.
5. Tighten the wheel axle to the
specified torque.
1. Retainer
Tightening torque:
Wheel axle:
59 Nm (5.9 m0kg)
7. After tightening the holder nuts,
while applying the front brake,
push down on the handlebars
several times to check if the front
fork compress and rebounds
smoothly.
8. Connect the speedometer cable.
Tightening torque:
Axle holder nut:
9 Nm (0.9 m0kg)
3WR-9-2A (E) 6 6/28/00 11:17 AM Page 36
