INSTRUMENT AND CONTROL FUNCTIONS
3
EAU03890
Engine stop switch “$/#”
Engine stop switch
Set this switch to “#” before starting
the engine. Set this switch to “$” to
stop the engine in case of an emer-
gency, such as when the motorcycle
overturns or when the throttle cable is
stuck.
EAU00143
Start switch “,”
Start switch
Push this switch to crank the engine
with the starter.
EC000005
cC
See page 5-1 for starting instruc-
tions prior to starting the engine.
1
2
,

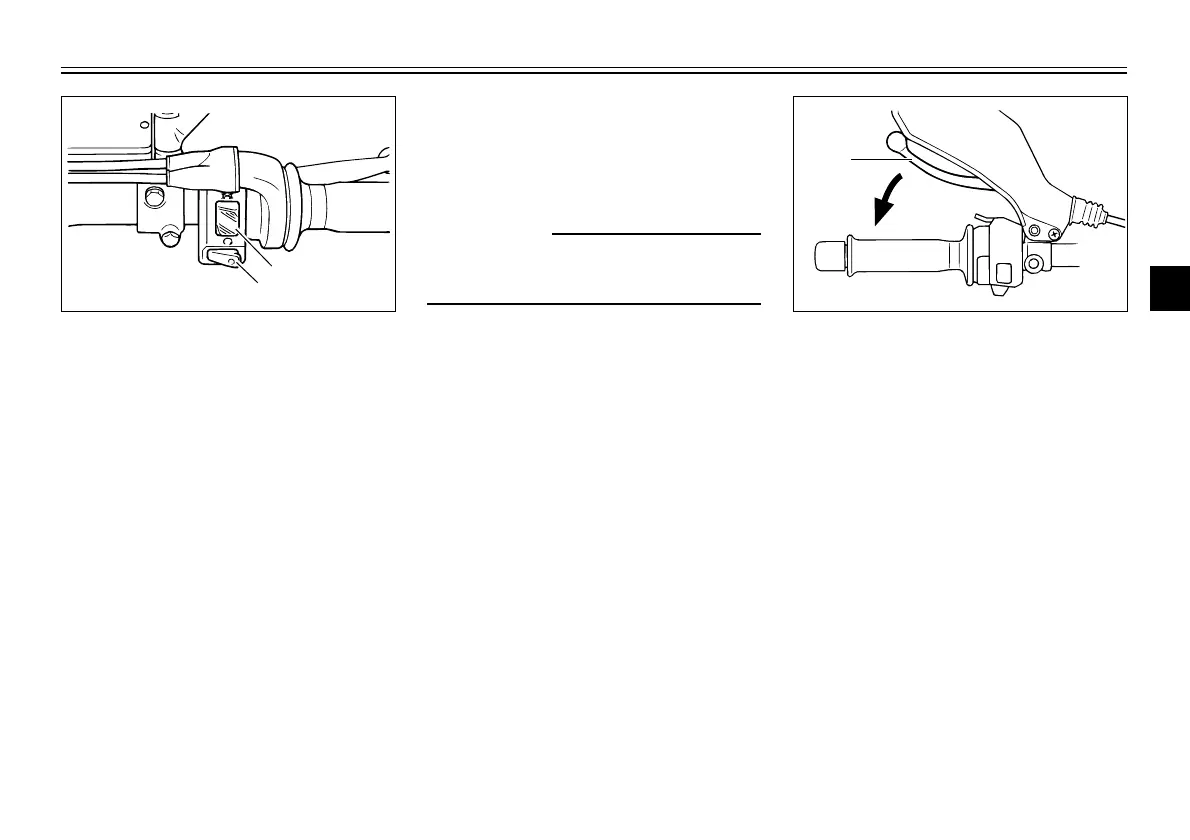

1. Engine stop switch “$/#”
2. Start switch “,”
EAU00152
Clutch lever
Clutch lever
The clutch lever is located at the left
handlebar grip. To disengage the
clutch, pull the lever toward the han-
dlebar grip. To engage the clutch,
release the lever. The lever should
be pulled rapidly and released slowly
for smooth clutch operation.
The clutch lever is equipped with a
clutch switch, which is part of the igni-
tion circuit cut-off system. (See page
3-12 for an explanation of the ignition
circuit cut-off system.)
1
1. Clutch lever
