6-25
PERIODIC MAINTENANCE AND MINOR REPAIR
6
EAU00744
Drive chain slack
Drive chain slack
The drive chain slack should be
checked before each ride and adjust-
ed if necessary.
To check the drive chain slack
Checking
1. Place the motorcycle on a level
surface and hold it in an upright
position.
NOTE:
When checking and adjusting the
drive chain slack, the motorcycle
should be positioned straight up and
there should be no weight on it.
2. Shift the transmission into the
neutral position.
EAU01134
To adjust the drive chain slack
adjusting
1. Loosen the axle nut and the
brake caliper bracket bolt.
2. To tighten the drive chain, turn
the adjusting plate on each side
of the swingarm in direction a.
To loosen the drive chain, turn
the adjusting plate on each side
of the swingarm in direction b,
and then push the rear wheel for-
ward.

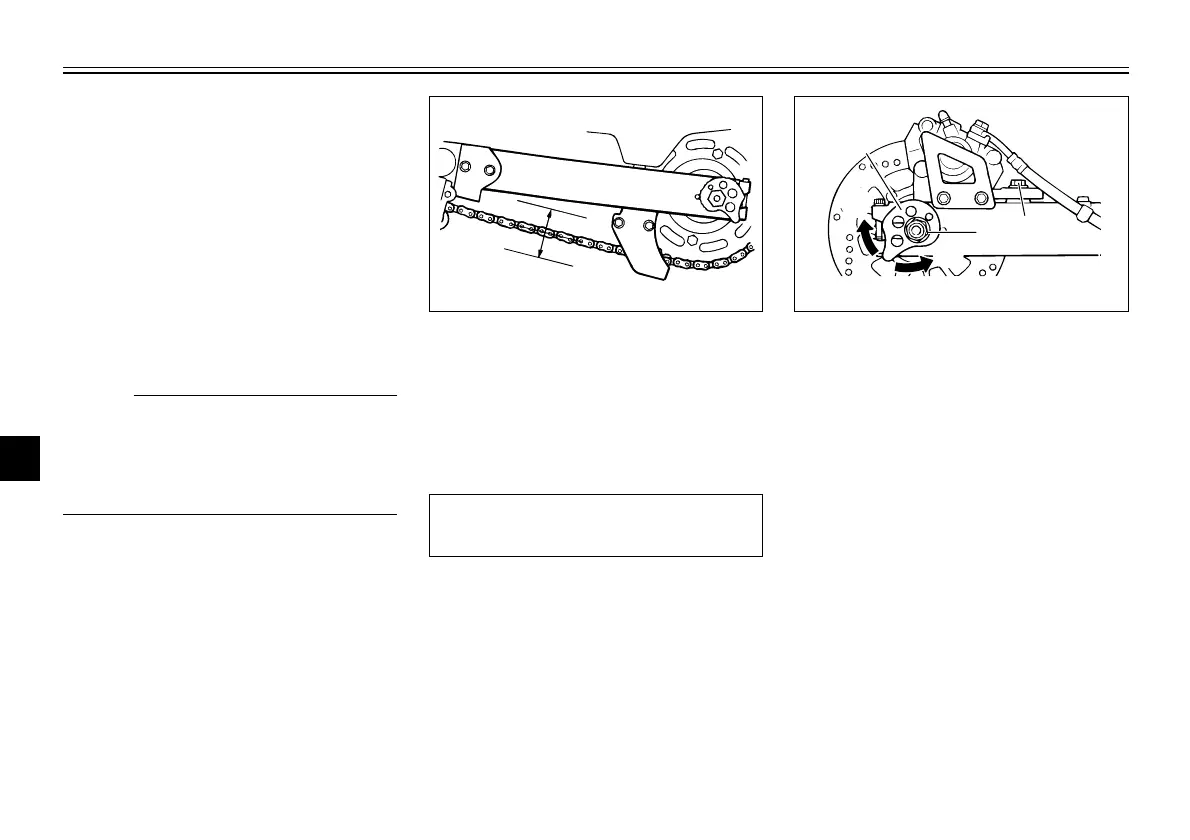

1. Adjusting plate
2. Axle nut
3. Brake caliper bracket bolt
3. Move the rear wheel by pushing
the motorcycle to locate the tight-
est portion of the drive chain,
and then measure the drive
chain slack as shown.
4. If the drive chain slack is incor-
rect, adjust it as follows.
a. Drive chain slack
Drive chain slack:
30–40 mm
4PT-E7 (English) 6/29/01 9:13 AM Page 62
