6-20
PERIODIC MAINTENANCE AND MINOR REPAIR
6
EAU00694
Adjusting the clutch lever
free play
Clutch lever free play, adjusting
The clutch lever free play should
measure 10–15 mm as shown.
Periodically check the clutch lever
free play and, if necessary, adjust it
as follows.
1. Loosen the locknut at the clutch
lever.
2. To increase the clutch lever free
play, turn the adjusting bolt in
direction a. To decrease the
clutch lever free play, turn the
adjusting bolt in direction b.

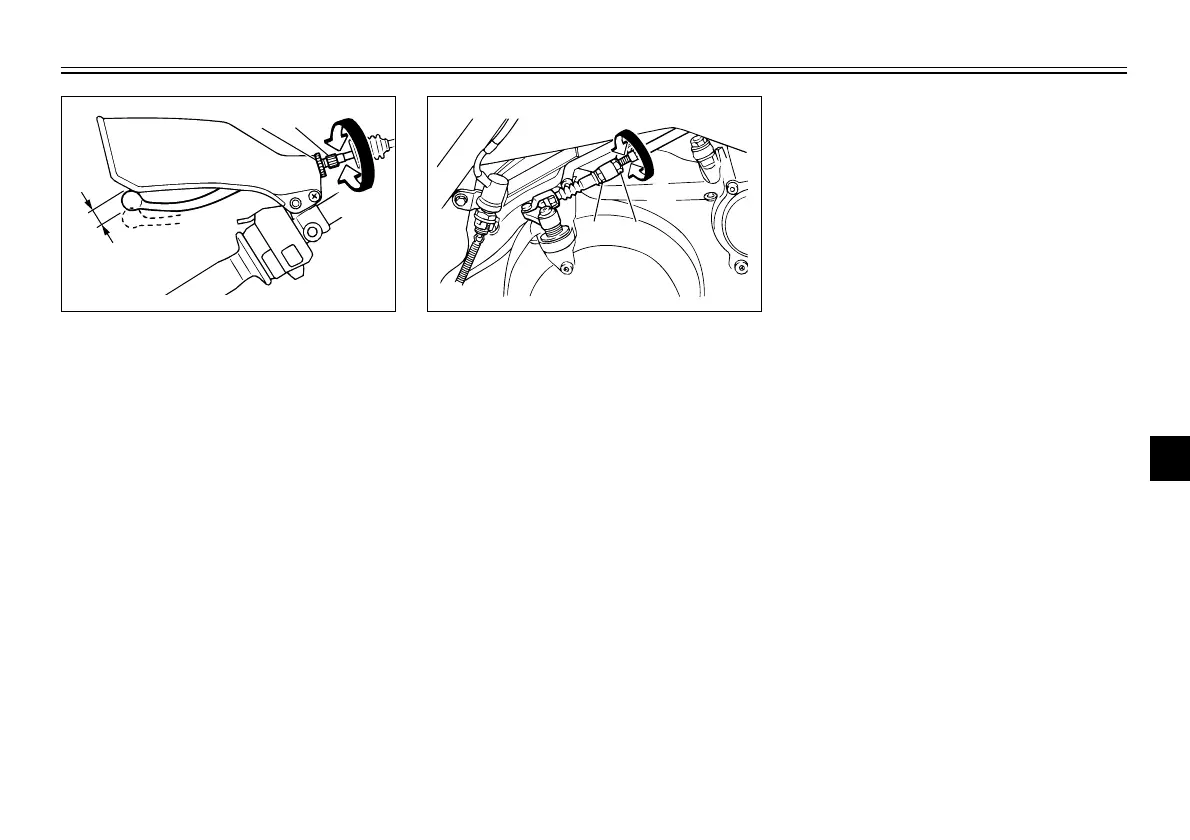

1. Locknut (clutch lever)
2. Adjusting bolt
c. Free play
7. Tighten the locknut at the clutch
lever and the crankcase.
3. If the specified clutch lever free
play could be obtained as
described above, tighten the
locknut and skip the rest of the
procedure, otherwise proceed as
follows.
4. Fully turn the adjusting bolt at the
clutch lever in direction a to
loosen the clutch cable.
5. Loosen the locknut at the
crankcase.
6. To increase the clutch lever free
play, turn the adjusting nut in
direction a. To decrease the
clutch lever free play, turn the
adjusting nut in direction b.
1. Locknut (crankcase)
2. Adjusting nut
4PT-E7 (English) 6/29/01 9:13 AM Page 57
