Yamaha XT660Z 2008 User Manual

5-68
CRANKSHAFT
EAS00408

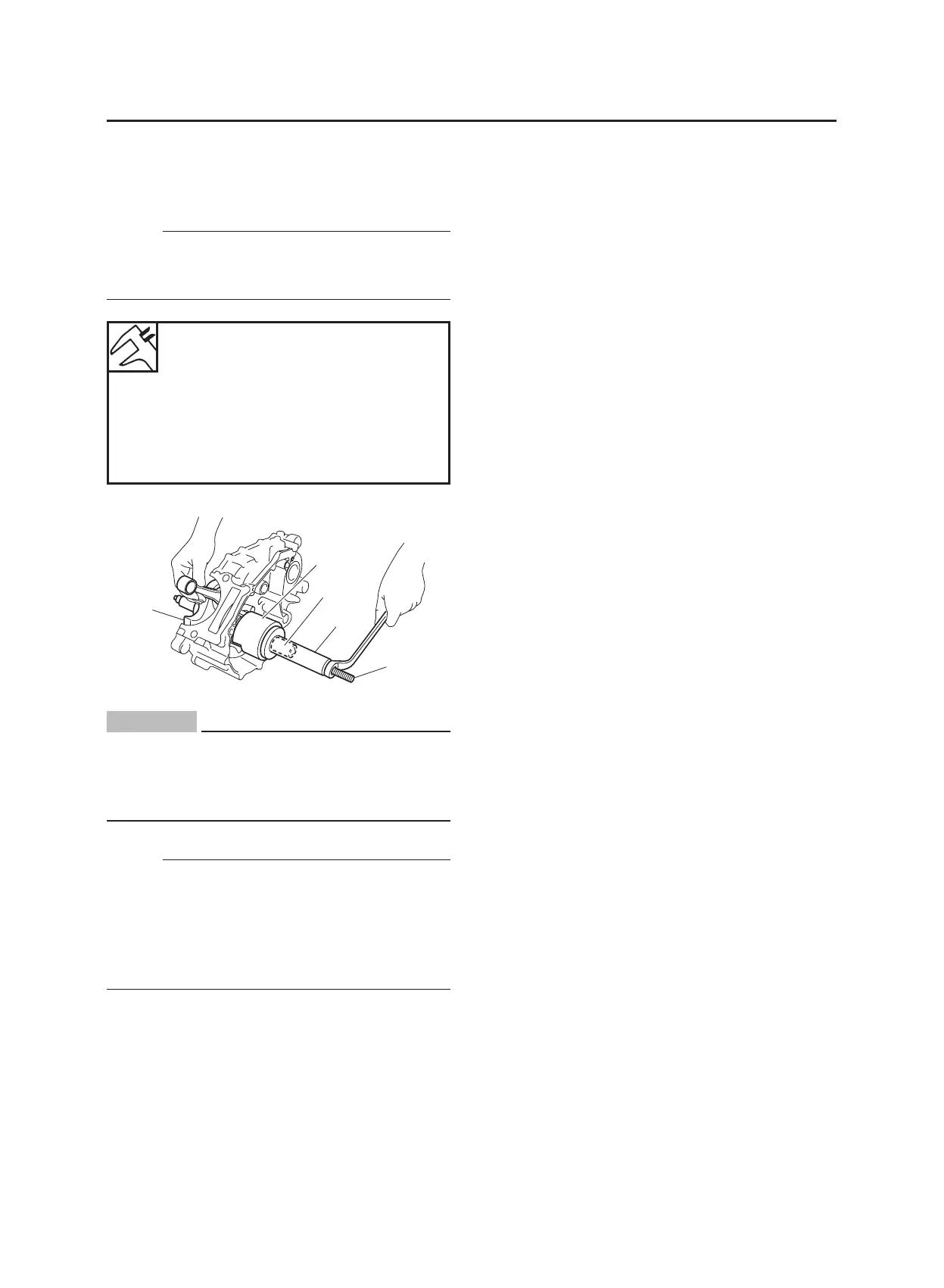

INSTALLING THE CRANKSHAFT
1. Install:
• Crankshaft “1”
NOTE:
Install the crankshaft with the crankshaft in-
staller pot, crankshaft installer bolt, adapter
and spacer (crankshaft installer).
Crankshaft installer pot “2”
90890-01274
Crankshaft installer bolt “3”
90890-01275
Adapter “4”
90890-04130
Spacer (crankshaft installer) “5”
90890-04144
CAUTION:
To avoid scratching the crankshaft and to
ease the installation procedure, lubricate
the oil seal lips with lithium-soap-based
grease and each bearing with engine oil.
NOTE:
Hold the connecting rod at the top dead center
(TDC) on the compression stroke with one
hand while turning the nut of the crankshaft in-
staller bolt with the other. Turn the crankshaft
installer bolt until the crankshaft bottoms
against the bearing.
1
5
4
2
3
