ENGINE
Handlebar end
a. Slide back the rubber cover.
b. Loosen the locknut “1”.
c. Turn the adjusting bolt “2” in direction “a” or
“b” until the specified clutch cable free play is
obtained.
d. Tighten the locknut.
e. Slide the rubber cover to its original position.
NOTE:
If the specified clutch cable free play cannot be
obtained on the handlebar end of the cable, ad-
just the free play at the engine end of the cable
using the adjusting nut.
Engine end
a. Loosen the locknut “1”.
b. Turn the adjusting nut “2” in direction “a” or
“b” until the specified clutch cable free play is
obtained.
c. Tighten the locknuts.
1
2
b
a
Direction “a”
Clutch cable free play is increased.
Direction “b”
Clutch cable free play is decreased.
▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼
EAS00086

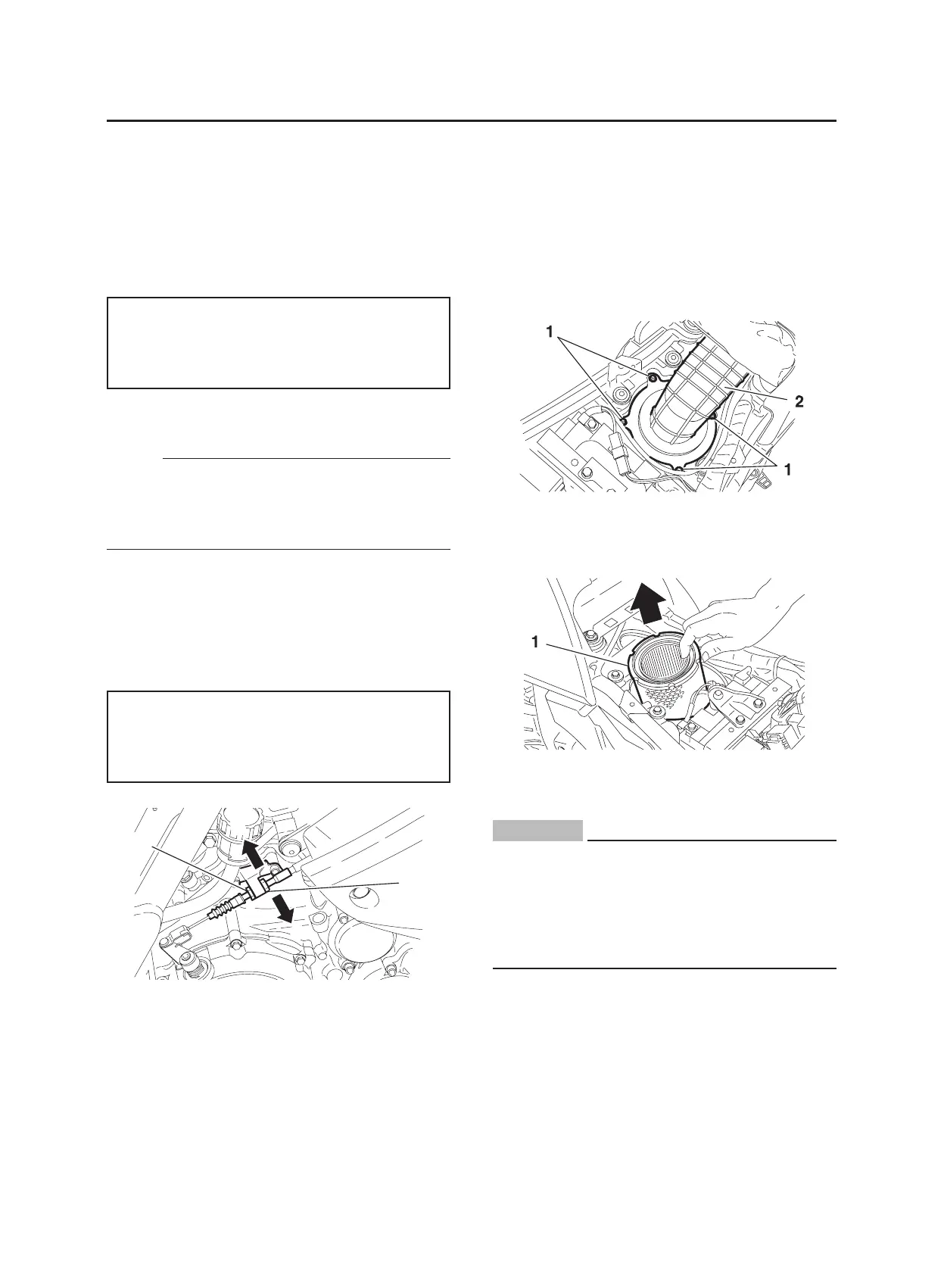

REPLACING THE AIR FILTER ELEMENT
AND CLEANING THE CHECK HOSE
Replacing the air filter element
1. Remove:
• Seat
• Screws “1”
• Air filter case cover “2”
2. Remove:
• Air filter element “1”
3. Install:
• Air filter element
CAUTION:
• Make sure that the air filter element is
properly seated in the air filter case.
• The engine should never be operated
without the air filter element installed,
otherwise the piston(s) and/or cylinder(s)
may become excessively worn.
4. Install:
• Air filter case cover
• Screw (air filter case cover)
• Seat
Direction “a”
Clutch cable free play is increased.
Direction “b”
Clutch cable free play is decreased.
▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼

Yamaha XT660Z 2008 Specifications

General

Displacement	660 cc
Bore x Stroke	100.0 mm x 84.0 mm
Compression Ratio	10.0:1
Fuel System	Fuel Injection
Ignition	TCI
Transmission	5-speed
Final Drive	Chain
Front Suspension	Telescopic forks
Rear Suspension	Swingarm (link suspension)
Front Tire	90/90-21
Rear Tire	130/80-17
Seat Height	895 mm
Wet Weight	206 kg
Dry Weight	183 kg
Starter	Electric
Front Suspension Travel	210 mm
Rear Suspension Travel	200 mm
Width	865 mm
Wheelbase	1, 505 mm
Engine Type	Liquid-cooled, 4-stroke, single cylinder, 4-valves, SOHC
Max Power	35.0 kW (48 PS) @ 6, 000 rpm
Rear Brake	Single disc
Fuel Capacity	23 liters
