Yamaha XVS650A - REAR BRAKE ADJUSTMENT; Brake Pedal Height Adjustment; Brake Pedal Free Play Adjustment

–19–

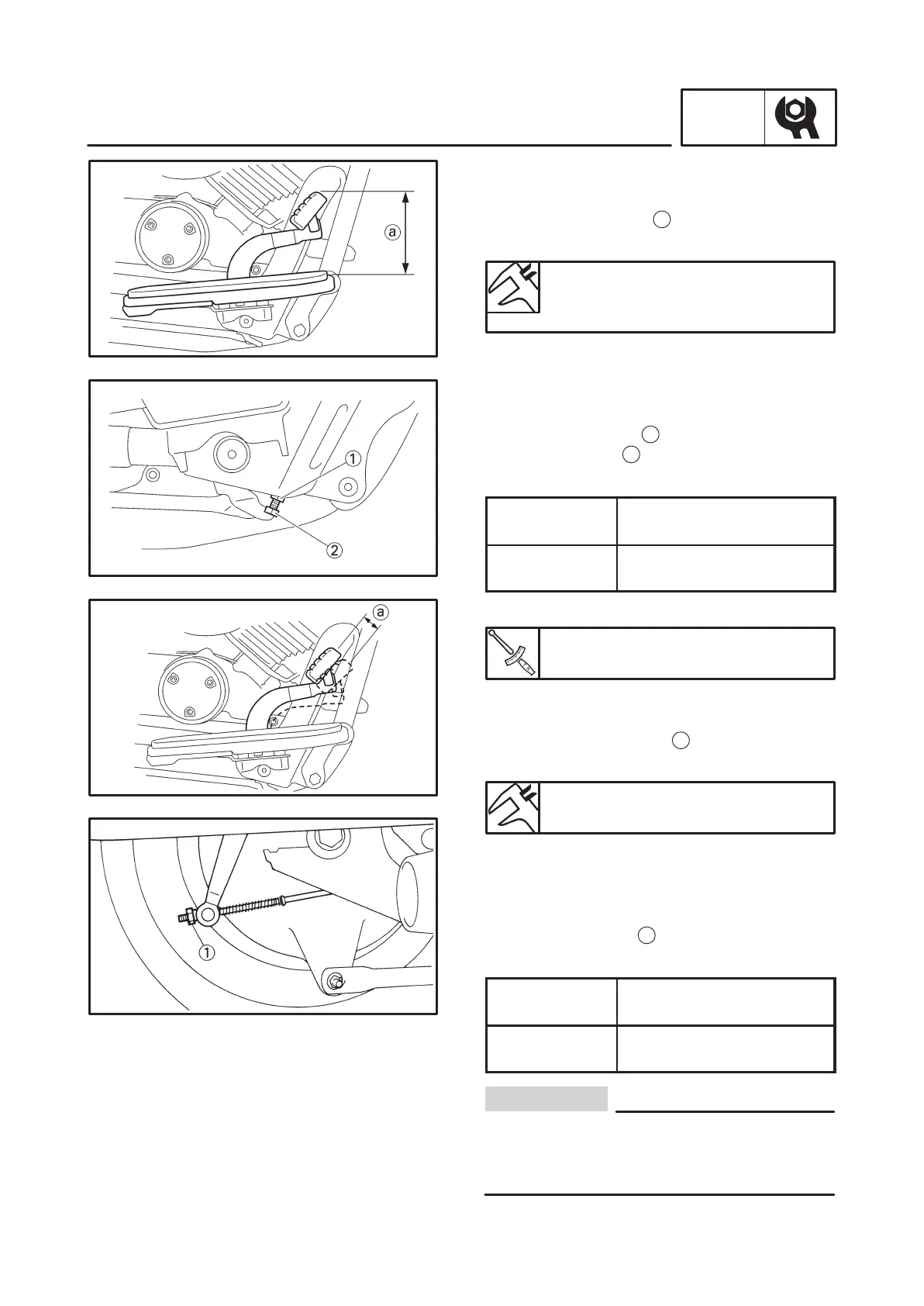

REAR BRAKE ADJUSTMENT
INSP
ADJ
***************************************
***************************************
***************************************
CAUTION:
***************************************
EB304012
REAR BRAKE ADJUSTMENT
1. Check:
 Brake pedal height
a
Out of specification  Adjust.
Brake pedal height:
108 mm
(above the top of the footrest)
2. Adjust:
 Brake pedal height
Adjustment steps:
 Loosen the locknut
1
.
 Turn the adjuster
2
in or out until the specified
pedal height is obtained.
Turning in:
brake pedal height is
decreased.
Turning out:
brake pedal height is
increased.
 Tighten the locknut.
Locknut:
7 Nm (0.7 mkg)
3. Check:
 Brake pedal free play
a
Out of specification  Adjust.
Free play (brake pedal):
20  30 mm
4. Adjust:
 Brake pedal free play
Adjustment steps:
Turn the adjuster
1
in or out until the speci-
fied free play is obtained.
Turning in:
brake pedal free play is
decreased.
Turning out:
brake pedal free play is
increased.
Make sure that there is no brake drag after
adjusting the brake pedal height and the free
play.
