Yamaha XVS650A - FRONT BRAKE CALIPER; Front Brake Caliper Removal Procedure

–29–
Order Job/Part Q’ty Remarks
1
2
3
4
5
6

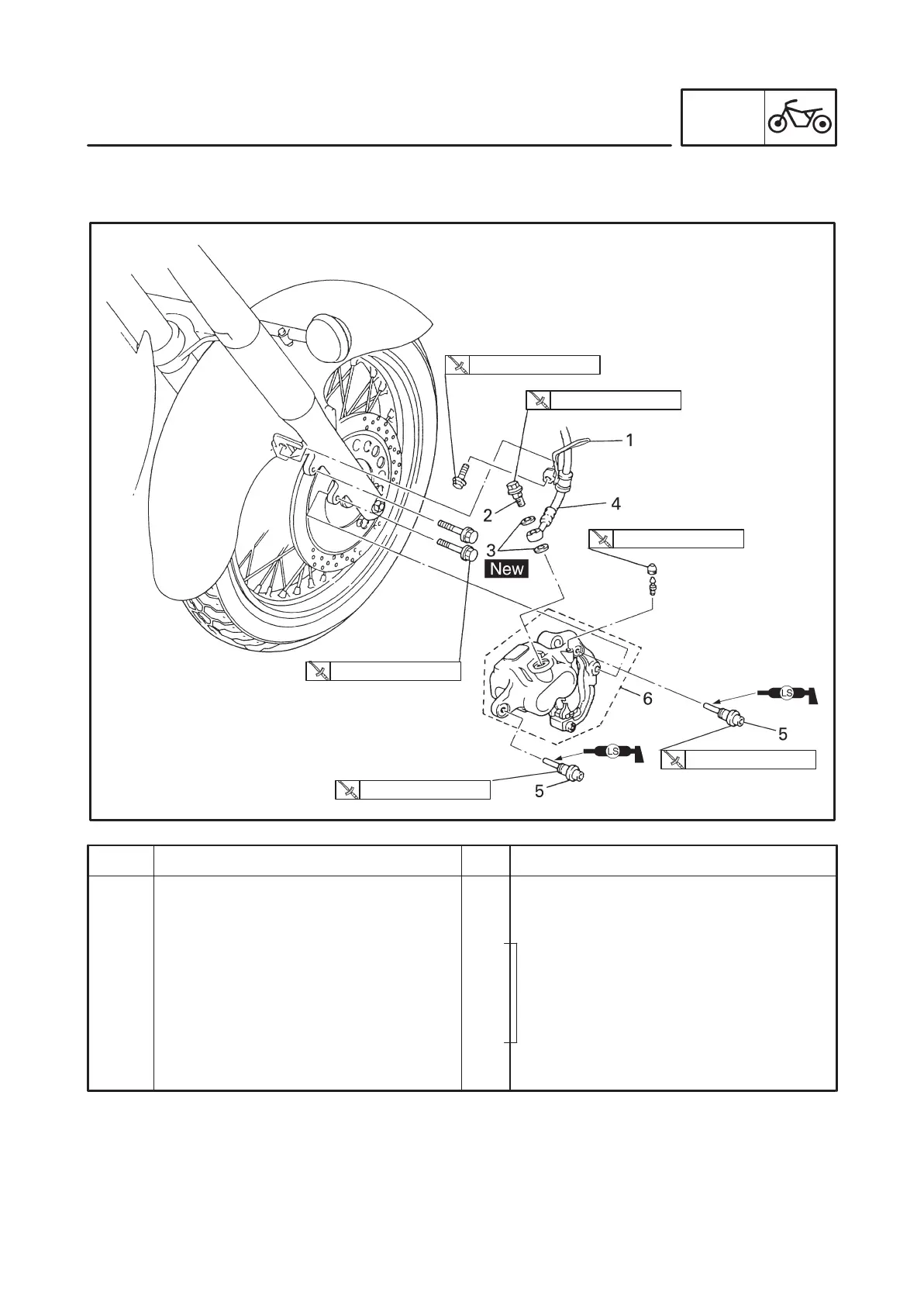

Front brake caliper removal
Brake fluid
Brake hose holder
Union bolts
Copper washers
Brake hose
Retaining bolt
Brake caliper assembly
1
1
2
1
2
1
Remove the parts in the order below.
Drain
For installation, reverse the removal
procedure.
Refer to “CALIPER INSTALLATION”.
7 Nm (0.7 mkg)
30 Nm (3.0 mkg)
6 Nm (0.6 mkg)
40 Nm (4.0 mkg)
27 Nm (2.7 mkg)
27 Nm (2.7 mkg)
FRONT BRAKE
CHAS
FRONT BRAKE CALIPER
