Yamaha XVS650A - CHASSIS; Front Brake System

–26–
Order Job/Part Q’ty Remarks
1
2
3
4

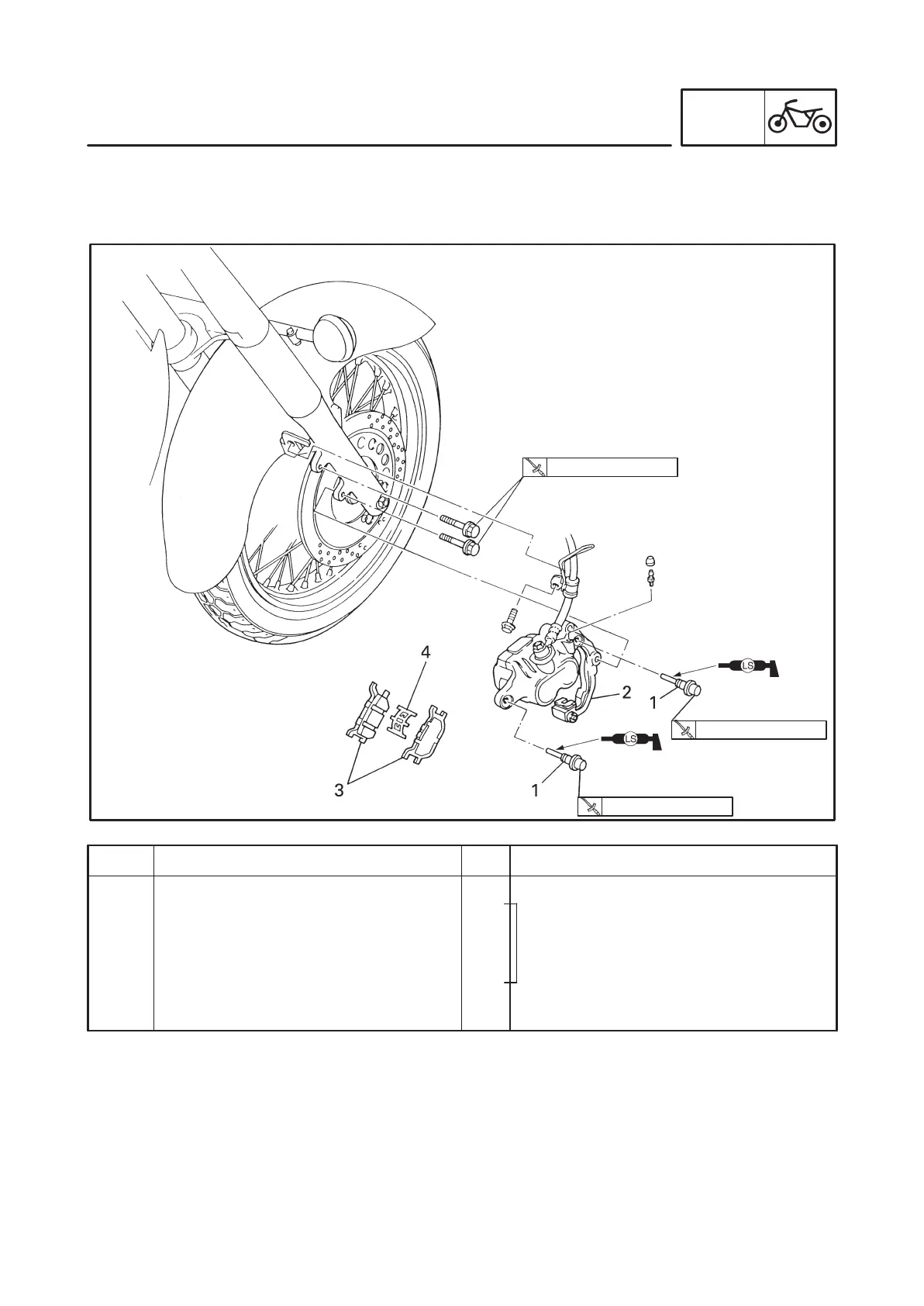

Front brake pad removal
Retaining bolt
Brake caliper
Brake pads
Pad spring
2
1
2
1
Remove the parts in the order below.
For installation, reverse the removal
procedure.
Refer to “BRAKE PAD
REPLACEMENT”.
40 Nm (4.0 mkg)
27 Nm (2.7 mkg)
27 Nm (2.7 mkg)
FRONT BRAKE
CHAS
CHASSIS
FRONT BRAKE
FRONT BRAKE PADS
