MOT
ASSEMBLY AND ADJUSTMENT OF ENGINE
4-25

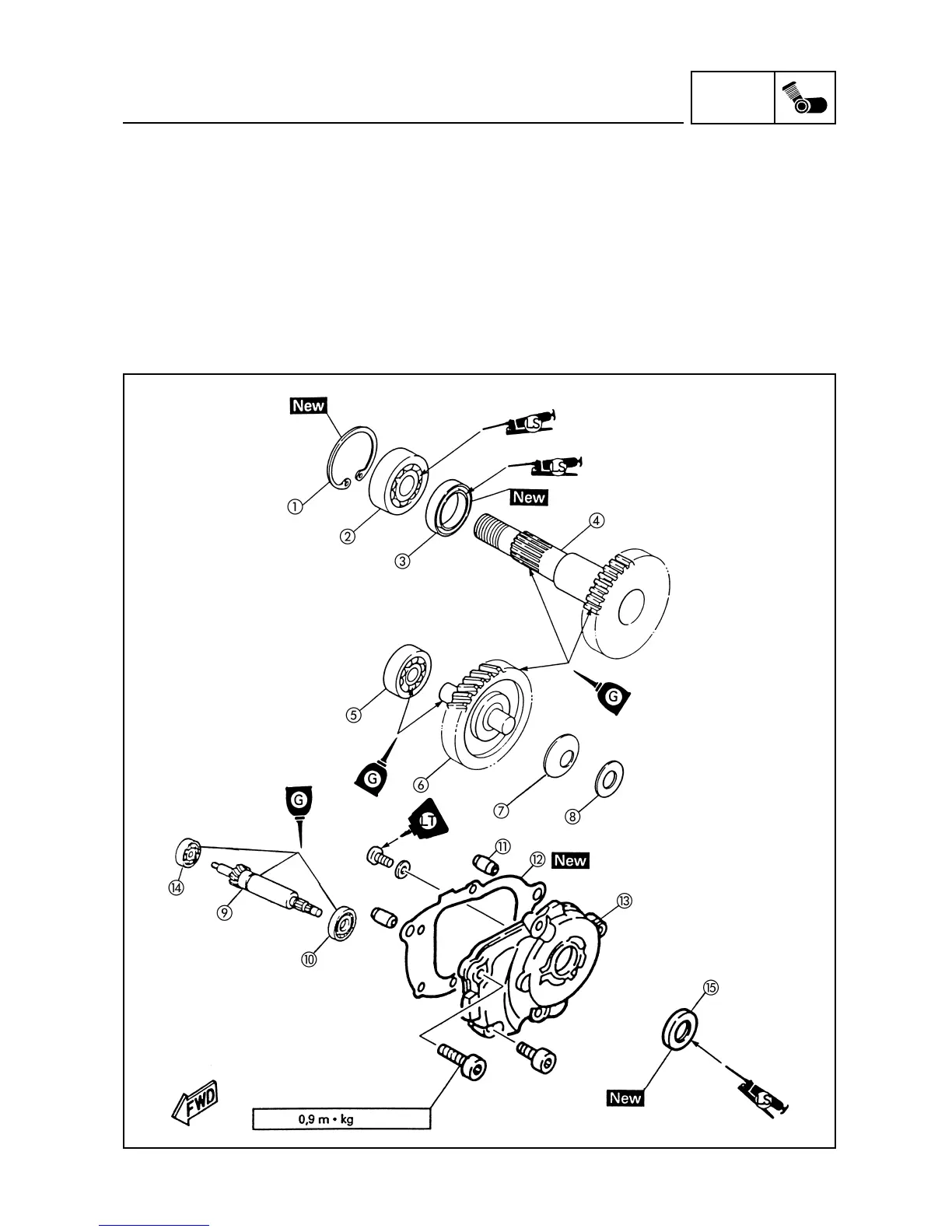

TRANSMISSION
Circlip
Bearing
Oil seal
Drive axle
Bearing
Main axle
Conical spring washer
Flat washer
Secondary pulley wheel axle
10 Bearing
11 Centring device
12 Seal
13 Transmission box cover
14 Bearing
15 Oil seal
