Yamaha YB50 - Starter Motor

MOT
ASSEMBLY AND ADJUSTMENT OF ENGINE
4-28
STARTER SYSTEM

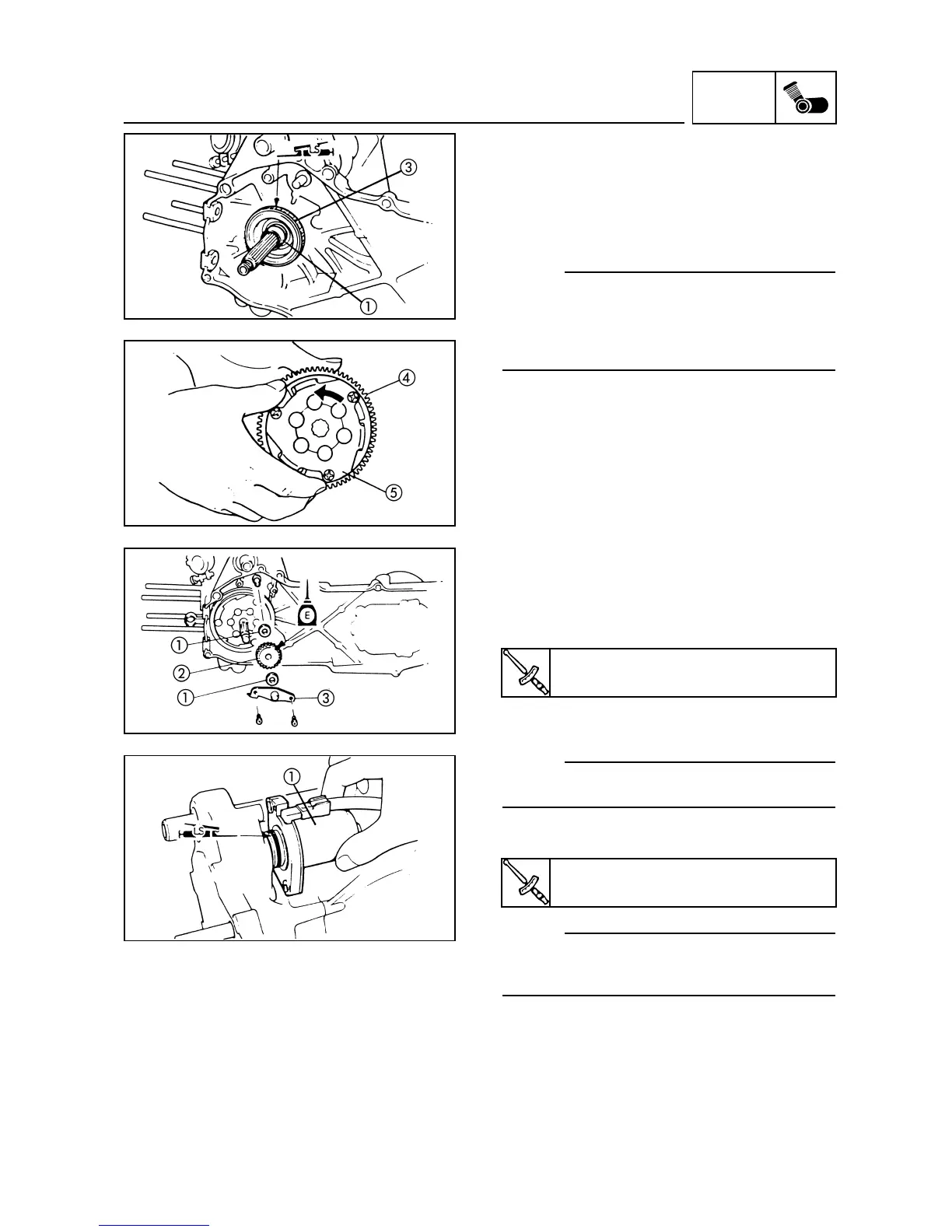

1. Install:
• Bushing 
• Bearing 
• Starter wheel gear 
• Starter clutch 
NOTE:
• Apply grease with a lithium soap base on
the bearing .
• Apply molybdenum disulphide oil on the pin
(starter clutch) .
2. Install:
• Flat washer 
• Intermediate gear 
• Flat washer 
• Plate  (intermediate gear)
NOTE:
Apply engine oil on the intermediate gear .
3. Install:
• Starter motor 
NOTE:
Apply grease with a lithium soap base on the
o-ring of the starter motor.
Screw (intermediate gear plate)
0,8 m • kg
Starter motor bolts
1,3 m • kg
