INSTRUMENT AND CONTROL FUNCTIONS
3-1
3
EAU10461

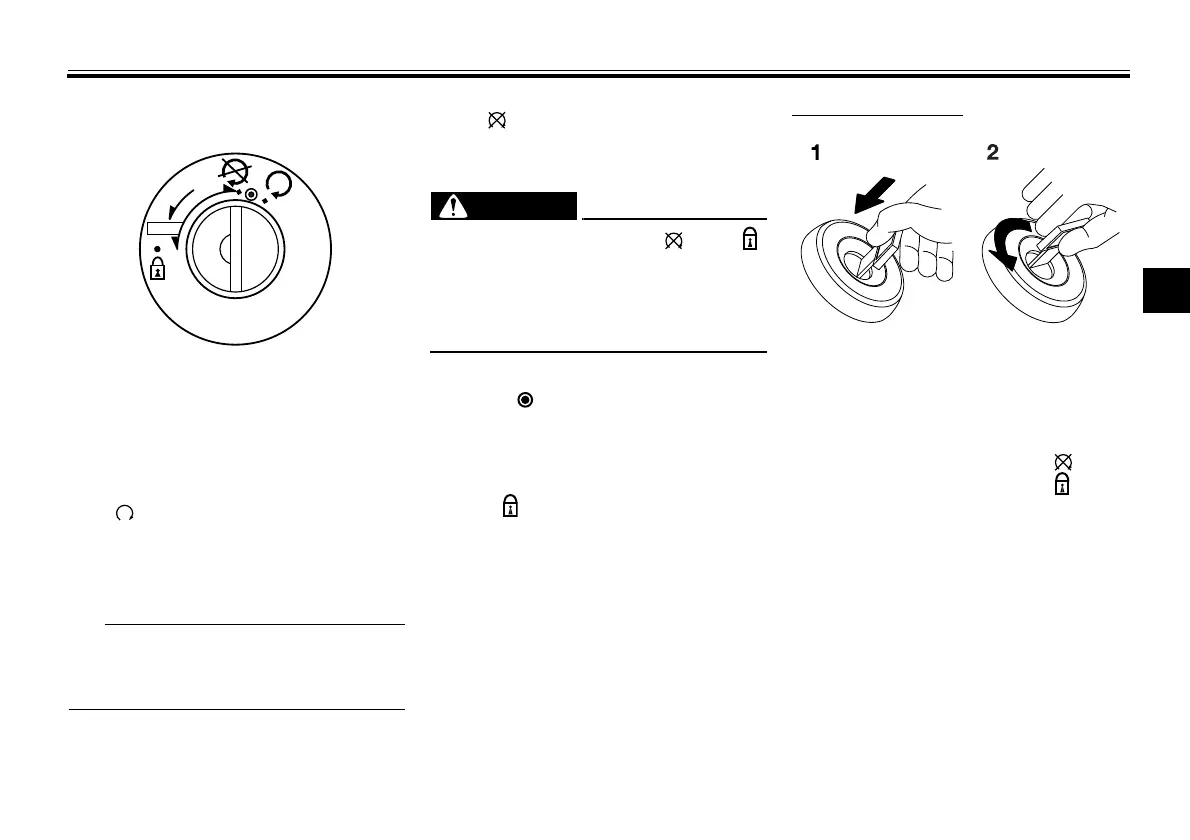

Main switch/steering lock
The main switch/steering lock controls
the ignition and lighting systems, and is
used to lock the steering. The various
positions are described below.
EAU10640
ON “ ”
All electrical circuits are supplied with
power, and the engine can be started.
The key cannot be removed.
The headlight, meter lighting and tail-
light come on automatically when the
engine is started.
EAU10661
OFF “ ”
All electrical systems are off. The key
can be removed.
EWA10061
Never turn the key to “ ” or “ ”
while the vehicle is moving. Other-
wise the electrical systems will be
switched off, which may result in
loss of control or an accident.
EAU10670
CHECK “ ”
The 2-stroke engine oil level warning
light should come on. (See page 3-2.)
EAU10684
LOCK “ ”
The steering is locked, and all electrical
systems are off. The key can be re-
moved.
To lock the steering
1. Turn the handlebars all the way to
the left.
2. Push the key in from the “ ” posi-
tion, and then turn it to “ ” while
still pushing it.
3. Remove the key.
1. Push.
2. Turn.
