PERIODIC MAINTENANCE AND ADJUSTMENT
6-21
6
6. Place a new headlight bulb into po-
sition, and then secure it with the
bulb holder.
7. Install the headlight bulb cover.
8. Connect the headlight coupler.
9. Install the cowling.
10. Have a Yamaha dealer adjust the
headlight beam if necessary.
EAUT1263
Replacing a front turn signal
light bulb
ECA10670
It is advisable to have a Yamaha
dealer perform this job.
1. Place the scooter on the center-
stand.
2. Remove cowling A. (See page
6-6.)
3. Remove the turn signal light bulb
socket (together with the bulb) by
turning it counterclockwise.
4. Remove the burnt-out bulb by
pushing it in and turning it counter-
clockwise.
5. Insert a new bulb into the socket,
push it in, and then turn it clock-
wise until it stops.
6. Install the socket (together with the
bulb) by turning it clockwise.
7. Install the cowling.

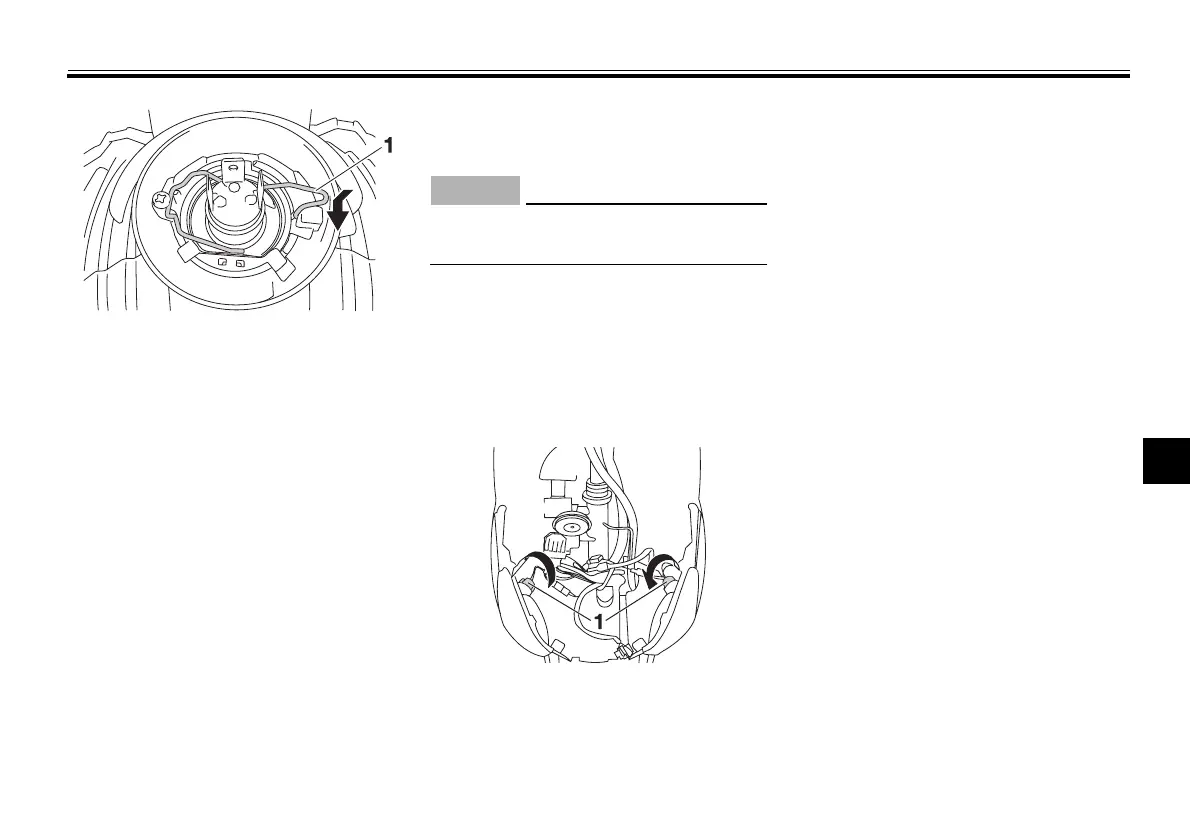

1. Headlight bulb holder
1. Turn signal light bulb socket
