To unlock the steering
Push the key in, and then turn it to “ ”
while still pushing it.
EAU49393
Indicator lights and warning
lights
EAU11020
Turn signal indicator light “ ”
This indicator light flashes when the
turn signal switch is pushed to the left or
right.
EAU11080
High beam indicator light “ ”
This indicator light comes on when the
high beam of the headlight is switched
on.
EAU11181
Oil level warning light “ ”
This warning light comes on when the
key is in the “ ” position or if the oil lev-
el in the 2-stroke engine oil tank is low
during operation. If the warning light
comes on during operation, stop imme-
diately and fill the oil tank with Ya-
malube 2 or equivalent 2-stroke engine
oil of either JASO grade “FC” or ISO
grades “EG-C” or “EG-D”. The warning
light should go off after the 2-stroke en-
gine oil tank has been refilled.
If the warning light does not come on
when the key is in the “ ” position or
does not go off after the 2-stroke en-
gine oil tank has been refilled, have a
Yamaha dealer check the electrical cir-
cuit.
ECA16291
Do not operate the vehicle until you
know that the engine oil level is suf-
ficient.

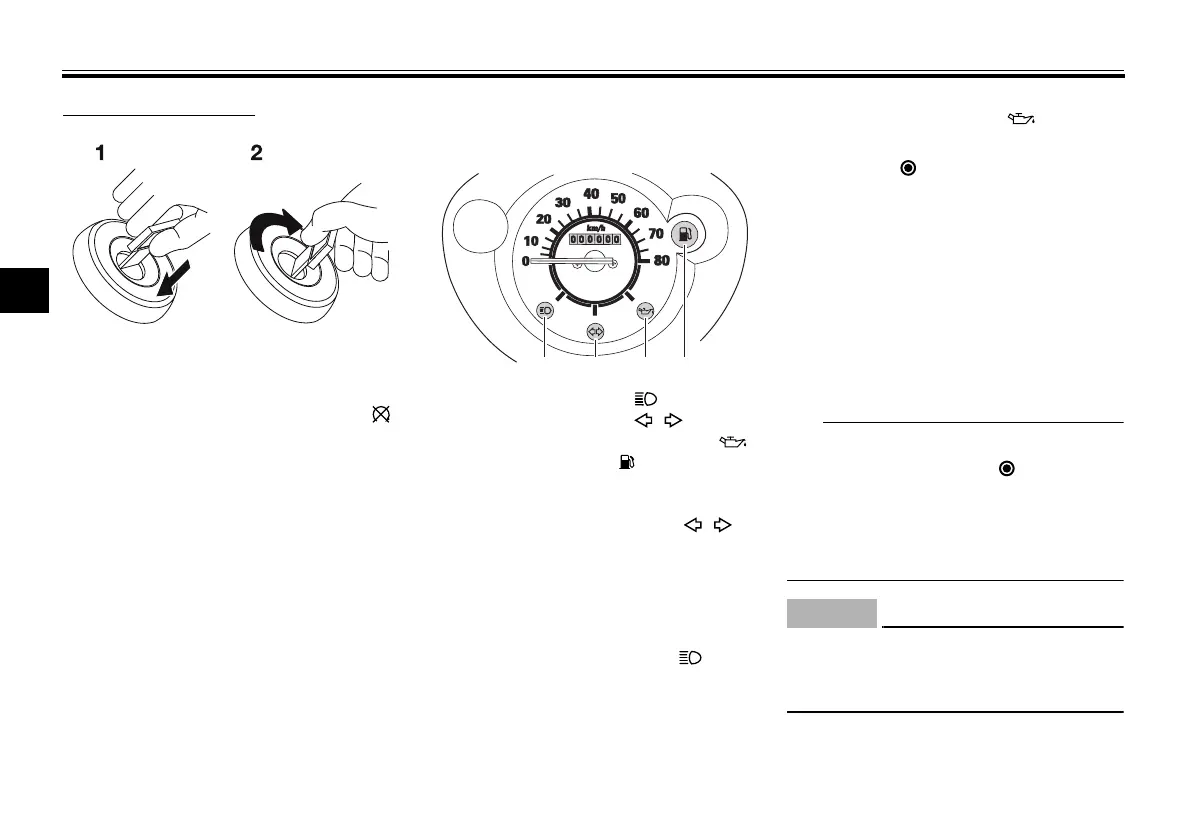

1. Push.
2. Turn.
1. High beam indicator light “ ”
2. Turn signal indicator light “ ”
3. 2-stroke engine oil level warning light “ ”
4. Fuel level warning light “ ”
