Yamaha YN50E - Rear Brake Lever; Fuel and 2-Stroke Engine Oil Tank Caps

INSTRUMENT AND CONTROL FUNCTIONS
3-5
3
EAU12951
Rear brake lever
The rear brake lever is located on the
left side of the handlebar. To apply the
rear brake, pull this lever toward the
handlebar grip.
EAU13202
Fuel and 2-stroke engine oil
tank caps
The fuel tank cap and the 2-stroke en-
gine oil tank cap are located under the
seat. (See page 3-8.)
Fuel tank cap
To remove the fuel tank cap, turn it
counterclockwise, and then pull it off.
To install the fuel tank cap, turn it clock-
wise.
2-stroke engine oil tank cap

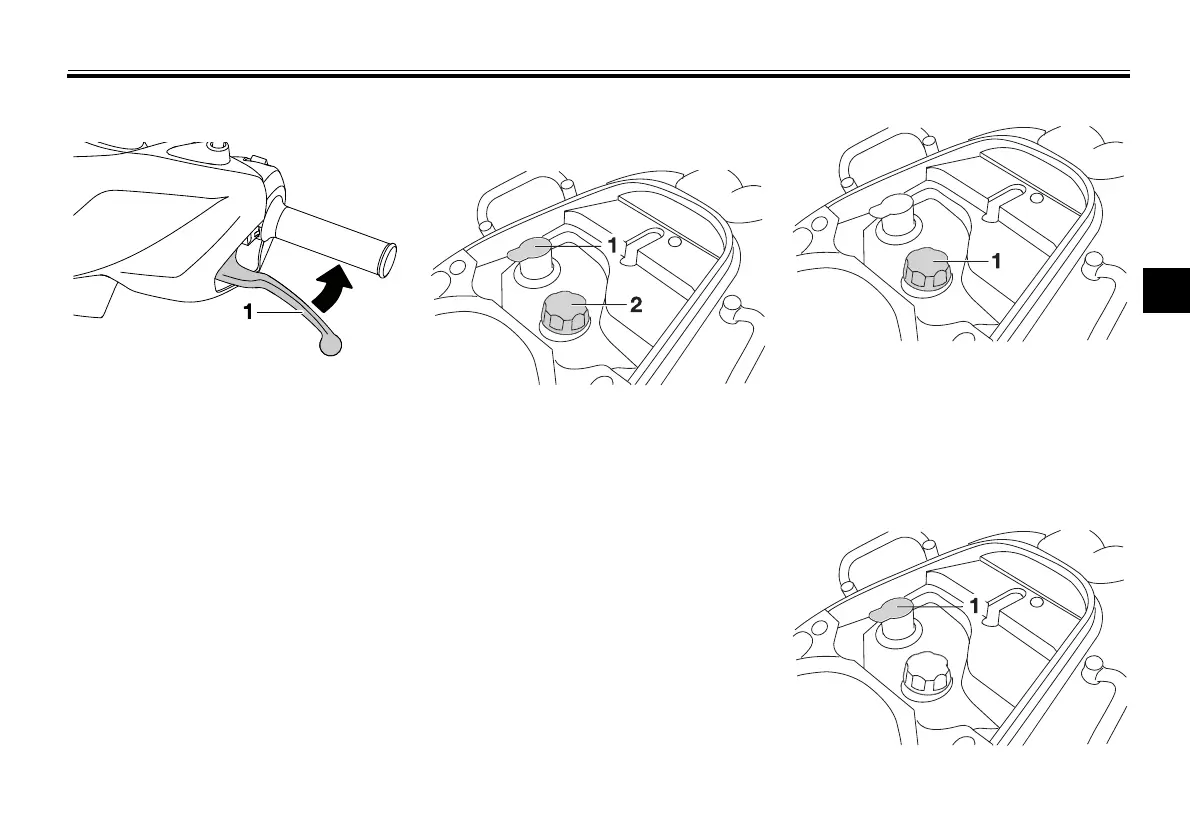

1. Rear brake lever
1. 2-stroke engine oil tank cap
2. Fuel tank cap
ZAUM0988
1. Fuel tank cap
1. 2-stroke engine oil tank cap
ZAUM0989
ZAUM0990
