PERIODIC MAINTENANCE AND ADJUSTMENT
6-22
6
EAU24283

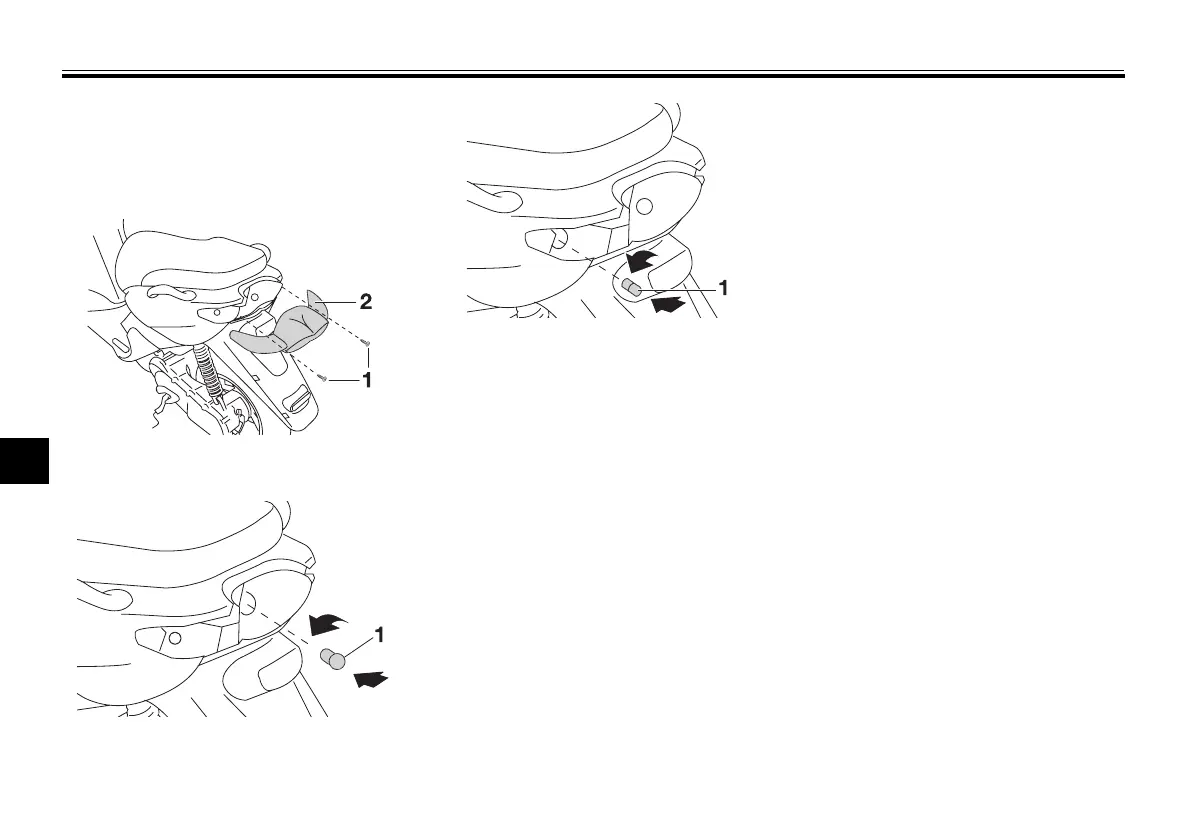

Replacing a turn signal light
bulb or the tail/brake light bulb
1. Remove the lens by removing the
screws.
2. Remove the burnt-out bulb by
pushing it in and turning it counter-
clockwise.
3. Insert a new bulb into the socket,
push it in, and then turn it clock-
wise until it stops.
4. Install the lens by installing the
screws. NOTICE: Do not over-
tighten the screws, otherwise
the lens may break.
[ECA10681]
EAU24330
License plate light (if
equipped)
If the license plate light does not come
on, have a Yamaha dealer check the
electrical circuit or replace the bulb.
1. Screw
2. Tail/brake light lens
1. Tail/brake light bulb
1. Turn signal light bulb
U2DKE0E0.book Page 22 Wednesday, January 9, 2013 9:19 AM
