Instrument and control functions
4-9
4
2. Make sure the seat is in its original
position.
3. Install the bolt at the rear of the
seat.
When removing and installing the
seat, be careful not to damage the
seat with a tool.
Make sure that the seat is properly
secured before riding.
EAU84383
Adjusting the front fork
EWA10181
Always adjust both fork legs equally,
otherwise poor handling and loss of
stability may result.
This front fork is equipped with re-
bound damping force adjusting screws
and compression damping force ad-
justing screws.
ECA10102
To avoid damaging the mechanism,
do not attempt to turn beyond the
maximum or minimum settings.
Rebound damping force
1. Remove the protector.
2. Turn the adjusting screw in direc-
tion (a) to increase the rebound
damping force. Turn the adjusting
screw in direction (b) to decrease
the rebound damping force. To
set the rebound damping force,
turn the adjuster in direction (a)
until it stops, and then count the
clicks in direction (b).

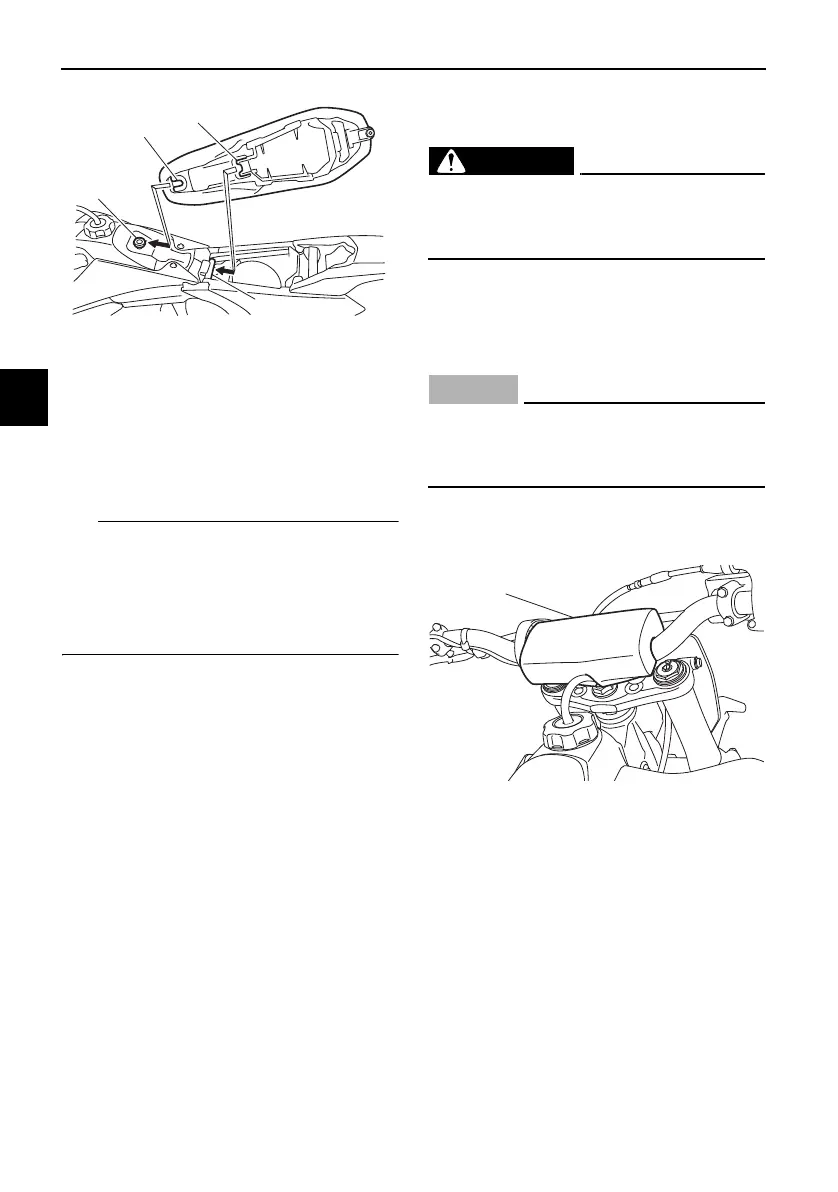

1. Slot
2. Projection
3. Seat holder
1. Protector
UBR811E0.book Page 9 Thursday, March 21, 2019 10:27 AM
